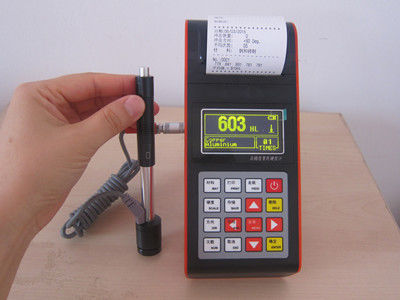

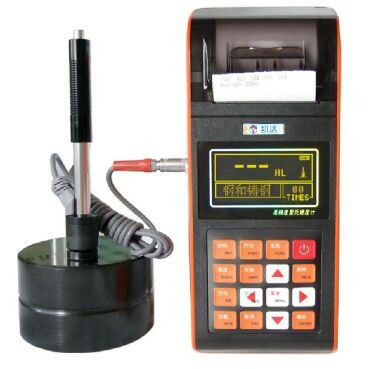

Portable Hardness Testing of Metal , Pen Type Hardness Tester

Portable Hardness Testing of Metal , Pen Type Hardness Tester

    • Portable Hardness Testing of Metal , Pen Type Hardness Tester
    • Portable Hardness Testing of Metal , Pen Type Hardness Tester
    • Portable Hardness Testing of Metal , Pen Type Hardness Tester
    • Portable Hardness Testing of Metal , Pen Type Hardness Tester
  • Portable Hardness Testing of Metal , Pen Type Hardness Tester

    Product Details:

    Place of Origin: DongGuan,China
    Brand Name: DahoMeter
    Certification: FCC,CE
    Model Number: KH-520

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD299 to USD499
    Packaging Details: standard exporting package
    Delivery Time: 3 to 5 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Pen Type Hardness Tester Measuring Materials: Steel And Cast Steel, Alloy Tool Steel, Stainless Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum Alloy, Copper Zinc Alloys (brass), Copper And Tin Alloy, Copper (bronze), Forged Steel
    Measuring Range: HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) Warranty: 1 Year

    Portable Hardness Testing of Metal, Pen Type Hardness Tester



    Product Application

    It is suitable for Steel and cast steel, alloy steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloy (brass), copper alloy (bronze), tin pure copper, forging steel etc.



    Main Features

    *Built-in printer, can print testing results any time;

    *Test at any angle, even upside down;

    *Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;

    *Seven impact devices are available for special application. Automatically identify the type of impact devices;

    *User calibration function;

    *Battery information indicates the rest capacity of the battery and the charge status;

    *Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;

    *Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;

    *Excellent after-sale service system for high quality products-two years warranty and all life maintenance. Easy to operate;

    *Narrow space also available to use;

    *Support OEM Service;

    *High price performance.





    Technical Specification



    Measuring Materials Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel
    Measuring Range

    HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88),

    HRB(13.5~101.7)

    Indication Error ±6HLD (D impact device)
    Measuring Direction 360°
    Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
    Display 128*64 digital matrix LCD
    Data Memory Max 600 groups (relative to impact times 1~32 adjustable)
    Power Rechargeable li-battery
    Working Temperature -20°C~55°C
    Size 210x85x45mm
    Weight 0.6kg


    STANDARD DELIVERY

    Portable Hardness Testing of Metal , Pen Type Hardness Tester

    ITEM QTY
    KH520 Host 1 PC
    Standard D Impact Device 1 PC
    Standard Calibration Block 1 PC
    Standard Support Ring 1 PC
    Brush 1 PC
    USB Cable 1 PC
    PC Software 1 PC
    User Manual 1 PC
    Instrument Case 1 PC
    Portable Hardness Testing of Metal , Pen Type Hardness TesterPortable Hardness Testing of Metal , Pen Type Hardness TesterPortable Hardness Testing of Metal , Pen Type Hardness Tester
