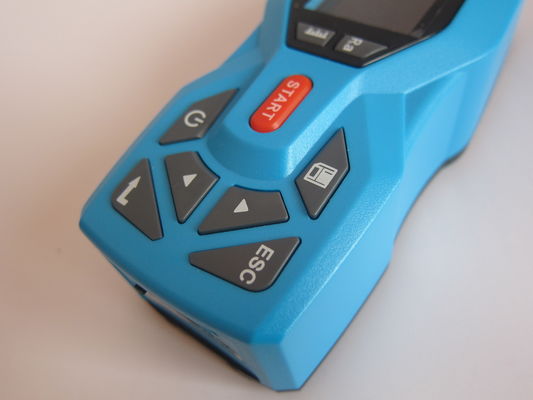

Surface roughness measuring instrument for laboratory and production sites, can measure the surface roughness of a variety of machined parts, including planes, bevels, outer cylindrical surfaces, curved surfaces, small holes, grooves and axles, etc., according to selected measurements Conditions Calculate the corresponding parameters and clearly display the measurement results and contour graphs on the LCD.
Main Features
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance.
Specification
| 20 roughenss parameters |
Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,RzJIS,Rsk,Rku,Rsm,Rmr,Rx,RPc,Rk,Rpk,Rvk,Mr1,Mr2 |
| Measuring Range |
Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
| Sample Length |
0.25, 0.80, 2.50mm |
| Evaluation Length |
(1~5)L |
| Maximum Drive Stroke |
17.5mm/0.7inch |
| Indication Accuracy |
0.001μm |
| Accuracy |
≤(±10)% |
| Repeatability |
<6% |
| Data Storage |
100 groups |
| Power |
Rechargeable Li-battery |
| Relative Humidity |
<90% |
| Working Temperature |
-20°C~40°C |
| Size |
158x63.5x46mm |
| Weight of Host |
0.3kg |
