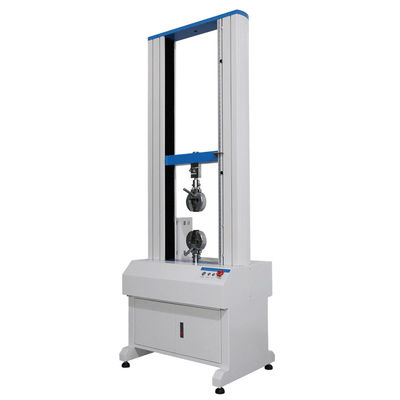

WDW-10ton Material tensile universal testing machine

WDW-10ton Material tensile universal testing machine

    • WDW-10ton Material tensile universal testing machine
    • WDW-10ton Material tensile universal testing machine
    • WDW-10ton Material tensile universal testing machine
    • WDW-10ton Material tensile universal testing machine
    • WDW-10ton Material tensile universal testing machine
    • WDW-10ton Material tensile universal testing machine
  • WDW-10ton Material tensile universal testing machine

    Product Details:

    Place of Origin: DONGGUAN,CHINA
    Brand Name: dahometer
    Certification: CE,FCC,ISO
    Model Number: WDW-100D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD6000 to 7000 per unit
    Packaging Details: wood standard exported package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Resolution: 1/300000 Measuring Range Of Deformation: 2%~100%
    Accuracy Indication Of: ≤±0.5% Disp. Indicating Relative Error: ≤±1%
    Displacement Resolution: 0.04um Adjusting Range Of Control: 0.005~5%FS/S
    Adjustment Scope Of: 0.005~5%FN/S

    WDW-10ton Material tensile universal testing machine

    WDW-10ton Material tensile universal testing machine



    1.Application:



    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.

    It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



    2.Standard:



    ASTM, ISO, DIN, GB and other international standards.



    3.Main Technical Parameters:

    Model WDW-100D WDW-100E
    Max. Load 100 KN
    Structure

    Four-column Floor Model

    (Upper Is Tensile And Lower Is Compression)

    Control Method Computer Automatic Control
    Load Accuracy 1 Class 0.5 Class
    Load Range

    2%~100% FS

    (2KN~100KN)

    0.2%~100% FS

    (0.20KN~100KN)

    Motor

    TaiWan TECO

    AC Servo Motor

    Panasonic Motor,

    Made In Japan

    Sensor

    High Precision Load Sensor,

    Made In China

    Import Sensor,

    Made In USA

    Resolution 1/300000
    Measuring Range Of Deformation 2%~100%

    Accuracy Indication Of

    Deformation

    ≤±0.5%
    Disp. Indicating Relative Error ≤±1%
    Displacement Resolution 0.04um

    Adjusting Range Of Control

    Rate Of Load

    0.005~5%FS/S

    Control Precision Of Control

    Rate Of Load

    When rate < 0.05% FS/s, the precision is within ± 2% of setting value;

    When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.

    Adjustment Scope Of

    Deformation Rate

    0.005~5%FN/S
    Accuracy Of Deformation Rate

    Test Speed<0.05%FN/s, within the ±2% of the preset value,

    Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.

    Adjusting Range Of

    Displacement Rate

    0.05~500mm/min (Can be customized)

    Control Precision Of

    Displacement Rate

    When rate < 0.5mm/min, within ± 1% of setting value;

    When rate ≥ 0.5mm/min, within ± 0.5% of setting value.

    Scope Of The Consistent Load

    Deformation And Displacement

    Control

    0.5%~100%FS

    Accuracy Of The Consistent Load
    Deformation And Displacement

    Control

    Preset value≥10%FN, within the ±0.1% of preset value;

    Preset value<10%FN, within the ±1% of preset value.

    Tensile Space 700mm (Can be customized)
    Compression Space 700mm (Can be customized)
    Effective Spacing 550mm (Can be customized)
    Load Cell Configuration

    One PC (Max Load). More load cells

    can be added according to customer requirement.

    Extend Configuration

    Large deformation extensometer, High or low

    temperature test chamber, High temperature oven.

    Power Supply AC 220V±10%, 50Hz (Can be customized)
    Grips Manual Grip / (Optional: Hydraulic Automatic Grip)
    Dimension 1000*550*2076mm
    Weight 850 KG


    4. Main Unit Feature:

    4.1 Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile,

    lower for compression, double space. The beam is step less lifting.

    4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of

    the test force and deformation speed.

    4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid

    sensor damaged due to the moving distance is too large.

    4.4 The table, moving beams is made of high quality precision machining steel plate , not only

    reduce the vibration generated by specimen fracture, but also improve the stiffness.

    4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further

    ensure the repeatability of measurement.

    4.6 Adopt bolt type grip installation, make the grip replace easier.

    4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have

    over-current, over-voltage, over speed, overload protection device.



    5. Software Function:

    5.1 Defined function: According to different types of users, different material properties, different

    test standards,different languages,flexible setting the test program to meet the test requirements.

    5.2 Input Function: Entry specimen parameters before the test, you can single input sample

    parameter, you can also batch input sample parameters, you can modify the sample parameters

    before the test, the specimen parameters can be modified after the test, fully satisfy your

    operating habits.

    5.3 Data processing query functions: Fully equipped data query function, print function, the export

    function to ensure the accuracy of the test data, reliability, real embody and reflect the nature

    and characteristics of the material test data.

    5.4 Curve analysis function: All the material properties can be reflected by the data curve, so the

    powerful data curve analysis function can help you better mastery and understanding of the

    material test properties, which is your best helper to analyze the material.



    6.Software Feature:

    6.1 Auto zero clearing: When test begin to start, the system auto zero clearing.

    6.2 Auto calibration: System can automatically realize the value accuracy of the calibration.

    6.3 Auto return: Finish test, the cross beam will auto return to the starting position.

    6.4 Auto gear shifting (when choose classify gear test): According to the load size automatically

    switch to the appropriate range, to ensure the accuracy of the test data.

    6.5 Auto speed changing: The cross beam moving speed can auto chang during the test process

    according to the preset program, also can manual change.

    6.6 Auto saving: Adopting the the database management way, the test data and curve automatically

    saved after the test.

    6.7 Auto calculating: When finish test, automatic calculate elastic modulus, yield strength and the

    percentage elongation stress, etc (Different test method, different analysis date.), can auto

    analyze, also be artificial correction analysis results, improve the accuracy of the analysis.

    6.8 Display way: Dynamic display of data and curves with the testing process.

    6.9 Result comparison:Multiple test curve can use different color superposition,reproduced, enlarge,

    presenting comparison of a set of sample.

    6.10 Curve choice: Can choose Stress-strain, force-displacement, force-time, displacement-time,

    and other curves to display and print; Can switch at any time to observe,zoom in and zoom out,

    horizontal or vertical movement, real-time high speed sampling.

    6.11 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the

    various test need of customers.

    6.12 Test report: According to user required format to compile reports and can print bulk data.

    6.13 Limit protection: With mechanical and Programmable two level limit protection function.

    6.14 Overload protection: When the load exceeds the maximum file of 3-5%, automatic stop.

    6.15 Other protection: With overload,over current,over voltage,displacement of the upper and lower

    limit and emergency stop protection function.



    Software Interface:



    WDW-10ton Material tensile universal testing machine
