XRF Gold Testing Machine

XRF Gold Testing Machine

    • XRF Gold Testing Machine
    • XRF Gold Testing Machine
    • XRF Gold Testing Machine
    • XRF Gold Testing Machine
    • XRF Gold Testing Machine
  • XRF Gold Testing Machine

    Product Details:

    Place of Origin: DongGuan
    Brand Name: DahoMeter
    Certification: CE,Rohs,FCC
    Model Number: DX-800

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 6999
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Analysis Range: 1ppm To 99.99% Accuracy: RSD ≤ 0.1%
    Sample Form: Solid, Powder, Liquid Tube Voltage: 5KV ~ 50KV
    High Voltage Power Supply: 0 ~ 50KV Spellman (USA) Detector Type: Proportional Counter Tube

    Two Years Warranty!!!

    FCC , CE , Rohs Certification

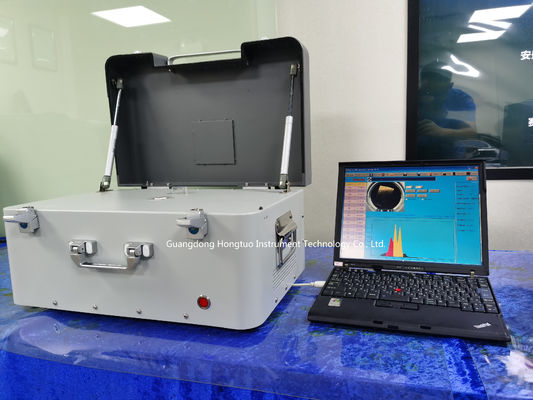

    XRF Gold Testing Machine



    DX-800 precious metal analyzer performance and configuration



    Analysis range                                       1ppm to 99.99%

    Accuracy                                                  RSD ≤ 0.1%

    Sample form                                           Solid, powder, liquid

    Tube voltage                                           5KV ~ 50KV

    High Voltage Power Supply                    0 ~ 50KV Spellman (USA)

    Camera                                                  HD camera

    Filters                                                     Choose a variety of customized sections

    Detector type                                         The detector is proportional counter tube

    Multichannel analyzer                            KEY-DMCP

    Sample chamber size                           310 * 280 * 60 (mm)

    Test time                                              10sec ~ 100sec

    Elements of interest                             Noble metal  Au, Ir, Ag, Pt, Pd, Ru, Rh, Os, etc.

                                                                  Basic metals  W, Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc. (Na ~ U)

    Analysis software                                 KEY-FP qualitative and quantitative analysis software

    External dimensions                            380 * 372 * 362 (mm)

    Weight                                                  30Kg



    Instruments Environmental requirements



    Ambient temperature            -5°C ~ 40°C

    Relative humidity                 15% ~ 90%

    Power Requirements            AC 220V ± 5V, 50/60HZ





    Advantages and Characteristics



    (1)Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings



    (2)Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold



    (3)The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions



    (4)Super long two years free warranty, confidence comes from pure European spectrometer production technology



    (5)The instruments have an innovative function that can help customers identify gold-plated samples



    (6)The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users



    (7)Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)



    (8)We can download and upload test data from network, and it is easy to view and share test results



    (9)Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer



    (10)Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed,Perfect human interface



    The Principle of Energy Dispersive
    X Fluorescence Spectrometer
    High-energy X-ray stimulates atomic electron shell,the extranuclear electron of atoms will jump and secondary X-ray energy releases. Because the energy that different element releases possesses different characteristic. Detection system can measure the energy and quantity to calculate the elements content.


    The Main Components
    High Voltage-X-Ray Tube-Detector&Pre-Amplifier-Main Amplifier-DPP-Control Module-Communication Module-Display System, etc



    Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.



    Fluorescence spectrum analyzers that HongTuo Instrument produces provide a detection technology of convenient operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials, and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing process only takes couple of minutes. All the liquid, solid and powder samples are available.

    XRF Gold Testing Machine
