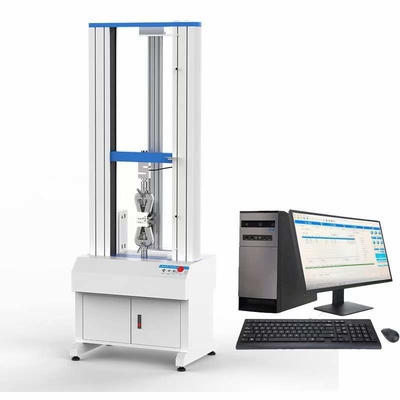

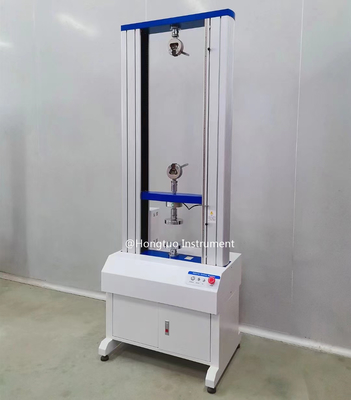

Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester

Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester

    • Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester
    • Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester
  • Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Model Number: WDW-50S

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD1999 to 3999 per Unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Product Name: Universal Testing Machine Function: Test The Tensile Strength For Materials
    Testing Before Delivery: Yes After-sale Customer Service: Yes
    Warranty: Yes Powder Supply: 220V Or 110V



    Excellent Quality 50KN Electronic Universal Testing Machine , Tensile Strength Tester



    1. Application:



    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



    2.Standard:



    ASTM, ISO, DIN, GB and other international standards.



    3.Main Technical Parameters:



    Model WDW-10S WDW-20S WDW-30S WDW-50S
    Max. load 10kN 20kN 30kN 50kN
    Structure

    Four-column floor model,(upper is tensile and lower is

    compression; upper is compression and lower is tensile)

    Control method Single chip control
    Load accuracy 1 class
    Load range 2%~100%F·S
    Displacement Resolution 0.04um
    Test speed 1-500mm/min
    Tensile space 700mm(can be customized)
    Compression space 700mm(can be customized)
    Test width 400mm(can be customized)
    Power supply AC220V±10%,50Hz(can be customized)
    Grips Wedge type, plate type and other grips as consumer’s demand
    Dimension 700*450*1775mm





    4. Main Unit Feature:



    • Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile, lower for compression, double space. The beam is stepless lifting.
    • Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
    • The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
    • The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
    • Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
    • Adopt bolt type grip installation, make the grip replace easier.
    • Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have over-current, over-voltage, over speed, overload protection device.



    5.Function Features:



    • Automatic calibration: system can automatically realize the accuracy of the calibration value.
    • After the sample broken, automatic stop.
    • Automatic display: Real-time display testing force, displacement, testing speed, peak value,testing status on one LCD.
    • Automatic return: beam automatic return to initial position when testing finished.
    • Breakage judgment: sample after fracture,beam automatic stop moving
    • Limiting protection: Program control and Mechanical limiting protection.
    • Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working.
    • Automatic calculation: automatic calculation area after input sample diameter (round); Width,thickness (flat), sample gauge ect.
