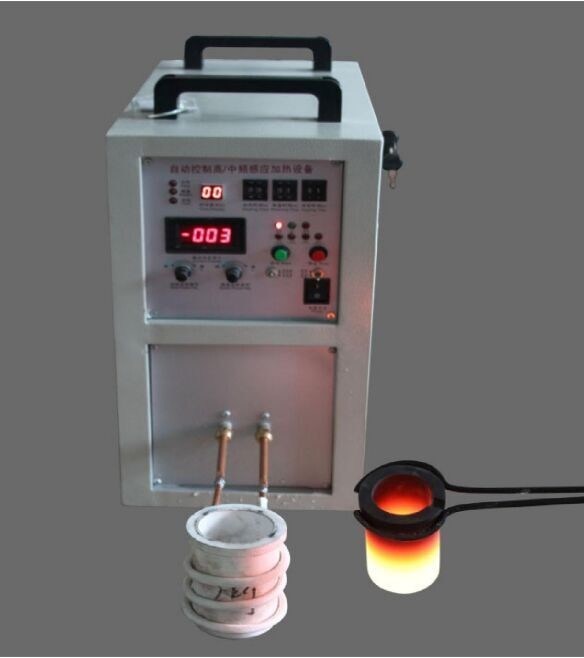

Mini Electric Melting Machine , Gold Smelting Furnace, Gold Smelting Machine

Mini Electric Melting Machine , Gold Smelting Furnace, Gold Smelting Machine

Mini Electric Melting Machine , Gold Smelting Furnace, Gold Smelting Machine

Product Details:

Place of Origin: Dongguan, China
Brand Name: DahoMeter
Certification: CE,FCC
Model Number: DH-TG-15A

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 to 8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Type: Portable Type Imput Voltage(V): Single Phase 220V
Power(KW): 5KW Melting Precious Metal Weight(KG): 2

Mini Electric Melting Machine, Gold Smelting Furnace, Gold Smelting Machine





Working Principle:



The power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generated through the induction coil. Under the action of the magnetic field, a vortex current is formed on the surface of the heated workpiece, thereby rapidly heating the workpiece.



Main Feature:



  • Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
  • Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.
  • Machine safety is reliable: over-current, phase loss, water shortage, over voltage, short circuit, overheat protection, greatly improving the reliability of the equipment.
  • Small footprint: less than 1 square meter, light weight and easy to move.
  • The machine is easy to install and operate, just need to connect water and electricity.
  • It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
  • Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals.



Specification:



  Portable type Cabinet type
Model DH-TG-15A DH-TG-25A DH-TG-35AB DH-TG-15A DH-TG-25A DH-TG-35AB
Imput voltage(V) Single phase 220V Three phase 380V Three phase 380V Single phase 220V Three phase 380V Three phase 380V
Power(KW) 5KW 5KW 10KW 5KW 5KW 10KW
Melting precious metal weight(KG) 2 4 8 2 4 8
Melting time(Minutes) ≤3 ≤5 ≤5 ≤3 ≤5 ≤5
Host dimension(CM) 49*24*48 59*26*48 59*26*48 50*50*100
Weight (KG) 20 28 35 75 85 85





Portable Gold Mini Melting Furnace, Gold Induction Melting Machine, Gold Melting Equipment
