DIN Abrasion Tester for Elastic

DIN Abrasion Tester for Elastic

    • DIN Abrasion Tester for Elastic
    • DIN Abrasion Tester for Elastic
  • DIN Abrasion Tester for Elastic

    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Model Number: DH-DIN

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to USD1999
    Packaging Details: standard wooden package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Production Name: DIN Abrasion Tester Volume: 95*66*31cm
    Weight: 50kg Pre-sale Customer Service: Yes
    Testing Before Delivery: Yes Warranty: One Year

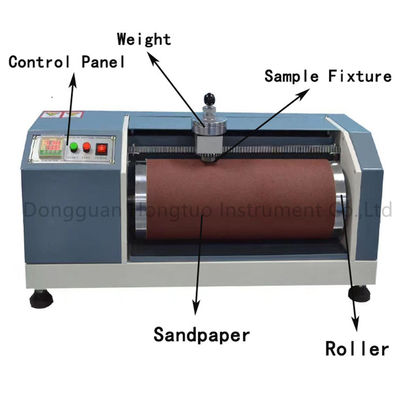

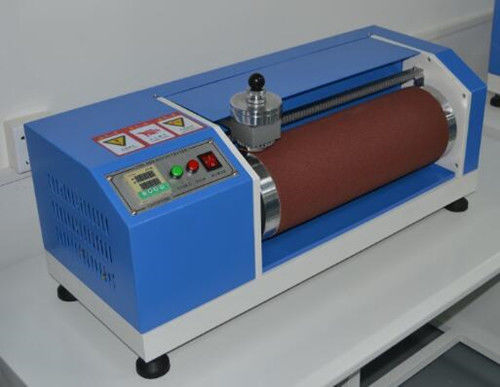

    DIN Abrasion Tester for Elastic





    Applicaion



    Suitable to determine the wear resistance of elastic material, rubber, tires,conveyor belts,shoe soles, soft synthetic leather and other materials.



    Principle



    Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.



    Specifications



    Roll diameter 150mm
    Fixture lateral displacement 4.2mm/hoop each lap
    Rooling speed 40rpm
    Volume 95*66*31cm
    Weight 50kg
    Power

    220V 50HZ
