ASTM D1895 Method A Apparent Density Tester / Meter / Apparatus / Testing Equipmet for Plastic Good Quality FREE SHIPPING

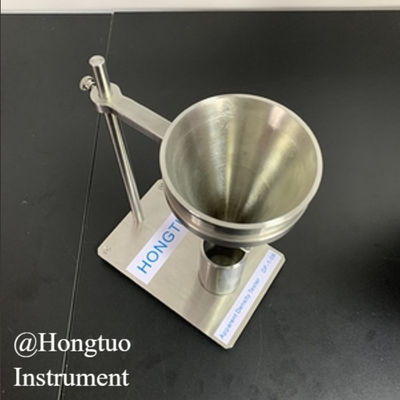

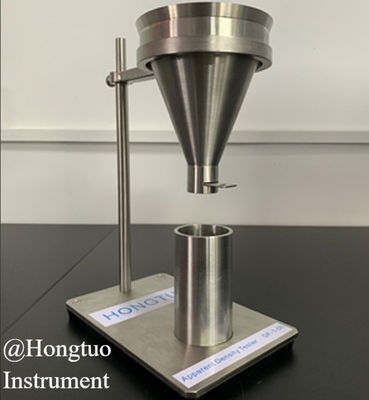

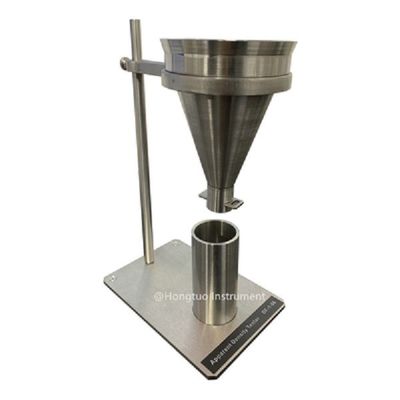

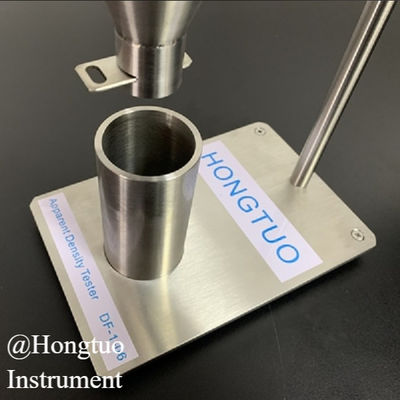

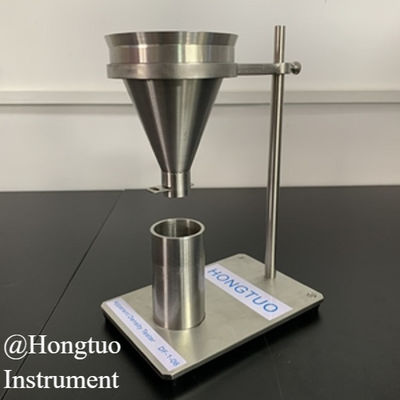

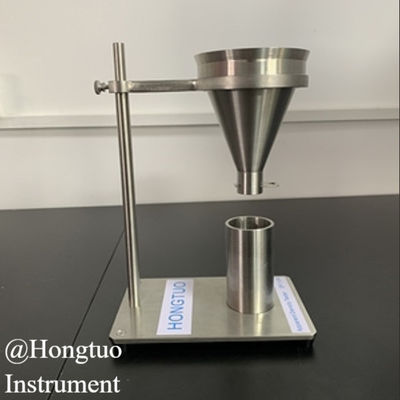

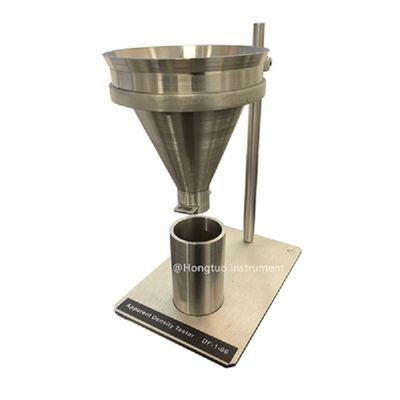

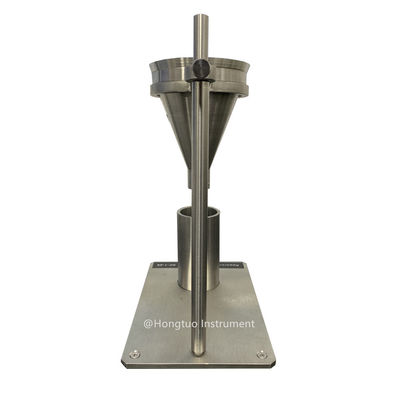

DF-1-06 can be used to measure the apparent density,bulk factor,and pourability of plastic materials.This instrument is produced in accordance with the method A of standard of ASTM D1895.As for the apparent density,DF-1-06 is more suitable for fine granule and powder.also can be poured readily through a small funnel.
Application:
This instrument is applicable to measure the plastic materials in the form of fine granule and powder.
Standard Accessories:
Holder,funnel,measuring cup,height pad,scraper blade,striker plate,tool and sample spoon.
Standards:
ASTM D1895,ISO60
Procedure:
Close the small end of the funnel with the hand or with a suitable flat strip and pour a 115±5cm³ sample into the funnel.Open the bottom of the funnel quickly and allow the material to flow freely into the cup.If caking occurs in the funnel,the material may be loosened with a small glass rod.After all the material has passed through the funnel.immediately scrape off the excess on the top of the cup with a straightedge without shaking the cup.Weigh the material in the cup to the nearest 0.1g.Calculate the weight in grams of 1cm³ of the material.
Specification:
| Model |
DF-1-06 |
DF-1-07 |
DF-1-08 |
DF-1-09 |
| Test Method |
Method A |
Method B |
Method C |
ISO method R60 |
|
Cup
|
Measuring volume |
100±0.5 cm3 |
400±0.5 cm3 |
10003±0.5 cm |
53.8±0.5cm |
| Inner Dia. |
39.9mm |
/ |
/ |
45±5mm |
| Height |
79.8mm |
240±10mm |
/ |
79.8mm |
| Sampling quantity |
110~120ml |
/ |
/ |
60g |
| Funnel |
Dia. of lower mouth |
9.5 |
25.4mm |
/ |
33mm |
| |
Height |
114mm |
230mm |
/ |
115mm |
| Distance between cap can funnel |
38mm |
/ |
20~30mm |
