    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Certification: ISO,SGS,CE
    Model Number: HT-1843-5.5D

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Pendulum Energy: 1J、2.75J、5.5J Pendulum Angle: 150°
    Impact Speed: 3.5m/s Usage: Izod Impact Testing Machine
    Warranty: 1 Year Testing Before Delivery: Yes

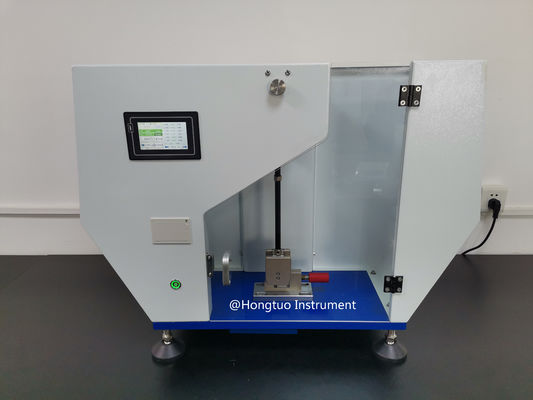

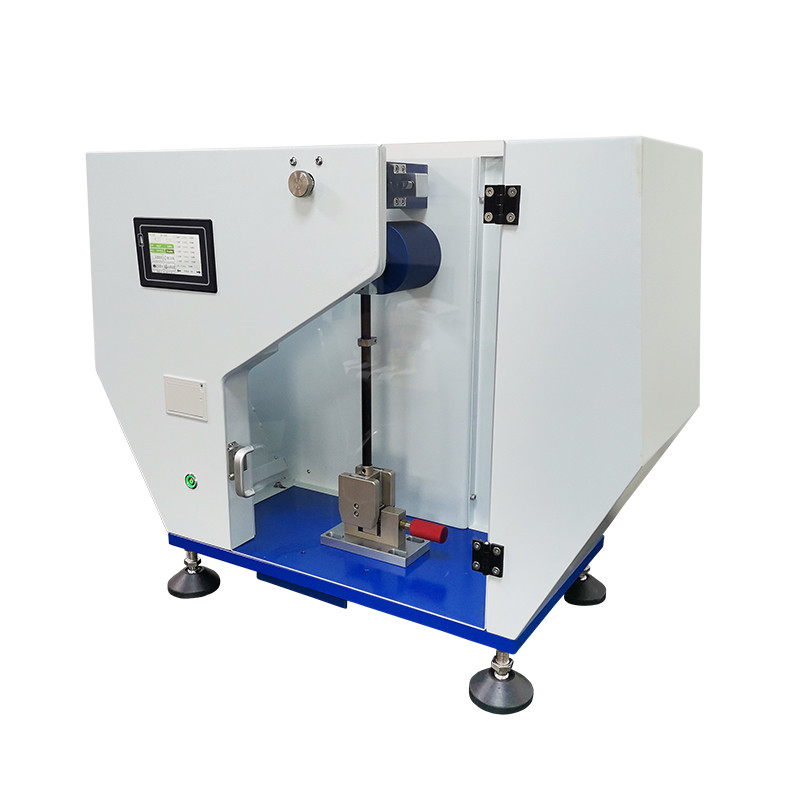

    ASTM D256 Pendulum IZOD Impact Tester for Reinforced Nylon





    The Izod Impact Tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. The pendulum impact testing machine is a common equipment for quality inspection by scientific research units, colleges and universities, non-metallic materials manufacturers. The machine is a simple structure, easy to operate, high test accuracy, digital high-impact testing machine with high precision The encoder technology has the characteristics of high precision, good stability and large measuring range. The digital measurement shows the impact strength and average value, the energy loss is automatically corrected, and the test report is printed.



    Characteristic:



    1. High-precision intelligent controller with LCD display for intuitive and accurate data reading.

    2. The first domestic use of carbon fiber pendulum (patent applied), in the impact direction, improve the rigidity of the material, and focus the impact mass on the centroid of the pendulum, truly vibration-free impact test, and the service life increases .

    3. Using imported high-resolution digital encoder, the angle test accuracy is higher and more stable.

    4. The aerodynamic principle of the impact hammer and the imported ball bearing greatly reduces the friction loss caused by the machine.

    5. The final result is automatically calculated. The test data can save 12 sets of data and average them.

    6.IZOD impact testing machine can choose Chinese and English operation interface, the test results can choose J/m, KJ/m2, kg-cm/cm, ft-ib/in and other units, built-in micro printer to print test data.



    Technical Specifications:



    Displaying method LCD in English
    Angle sensor Omron encoder,accuracy 0.01°
    Impact speed 3.5m/s
    Pendulum energy

    (IZOD-5.5D)1J,2.75J,5.5J

    (IZOD-22D)11J,22J

    Pendulum angle 150°
    Distance from the center of pendulum to striking edge 335mm
    Horizontal distance from striking edge to jaws 22mm
    Cutter edge radius R=0.8±0.2mm
    Weight 85kg
    Power voltage AC220V±10% 50HZ
