|Place of Origin:||Dongguan|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard exporting wooden package|
|Delivery Time:||5-7 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||300 sets per month|
|Usage:||Charpy Pendulum Impact Tester||Impact Speed:||3.8m/s|
|Pendulum Energy:||7.5J、15J、25J||Pendulum Up Angle:||150°|
|Impact Center Distance:||380mm|

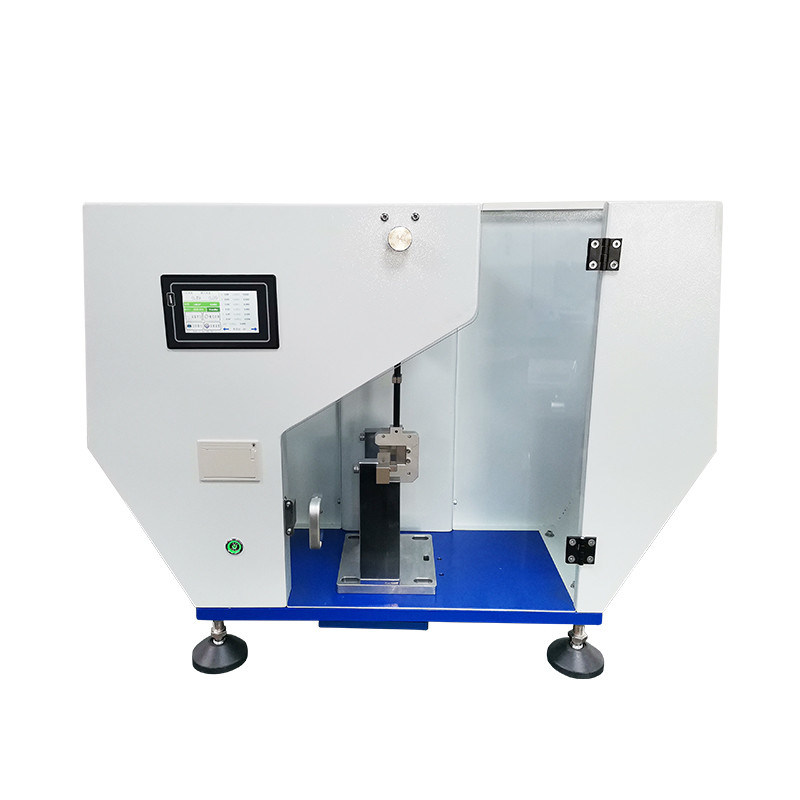

Professional Supplier Charpy Pendulum Impact Test Method Test Machine for Strength Test Excellent Quality Fast Delivery
This series of digital impact testing machine is mainly used for the
determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials, etc. It is the ideal testing equipment for the chemical industry, research institutes, universities, quality inspection, etc.
1. This series of impact testing machine is an intelligent digital display impact testing machine developed by micro-computer technology. It can automatically correct the energy loss caused by friction and wind resistance, and get rid of the numerical chart of energy correction due to the influence of resistance. (The detection of the residual energy of the pendulum and the correction of the energy loss after the sample breaks are completed once in the impact process).
2. This series of impact testing machines adopts electronic display test results to make the readings more intuitive and improve the accuracy and accuracy of the impact machine.
3.Using rotary encoder garden grating angle measurement technology, with advantage of high precision, good stability and large measurement range, digital displaying
the thrust energy, impact strength, pre-elevation angle, elevation angle, average value, and energy loss automatic correction.
4. The swing arm is made of new carbon fiber material, the strength is higher than steel, and the weight is lighter than aluminum.
The main technical parameters are in full compliance with the requirements of IS0 179-2000, GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, GB/T18743-2002
|Impact speed||2.9m/s||3.8 m/s||3.8 m/s|
|Pendulum center distance||221mm||380mm||380mm|
|Impact blade angle||30°|
|Impact blade fillet radius||R=2mm ±0.5mm|
|Jaw support spacing||40mm,60mm,70mm,95mm|
|Support blade corner radius||R=1mm|
Contact Person: Mr. zhong
