    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: FCC,CE
    Model Number: KUT-650

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: USD399 to USD1499
    Packaging Details: standard exporting package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Ultrasonic Flaw Test Meter Power: Li-battery (working Time>10 Hours)
    Display: LED True Color Humidity: 20%~90%RH
    Temperature: -20°C~70°C After-sale Customer Service: Yes
    Testing Before Delivery: Yes

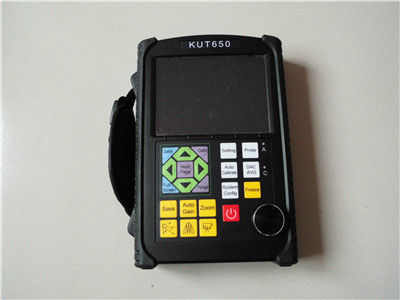

    UT Flaw Detector, Ultrasonic Flaw Test Meter, Ultrasonic Weld Test Equipment Testing



    Application

    KUT-650 can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.



    Main Features

    *Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф);

    *Unlimited of video time

    *Automated to switch three staff gauge ((Depth d,level p,distance s);

    *Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

    *Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated;

    *6dB DAC functions;

    *Standards of test for DAC is saved.

    *500 independence setup, any criterion can be input freely, we can work in the scene without test block;

    *Big memory of 1000 A graph

    *Automated gain and gain scan;

    *Peak Hold and Peak Memory;

    *B scan;

    *AWS D1.1

    *Automated make video of test process and play; use USB flash disk,the length of video is unlimited.

    *Powerful pc software and reports can be export to excel;

    *Li battery, continue working time up to 10 hours;

    *The embeded software can be online updated;

    *Display freeze;

    *Automated echo degree;

    *Angles and K-value;

    *Lock and unlock function of system parameters;

    *Electronic clock calendar ;

    *Two gates setting and alarm indication;

    *Gate and DAC alarm;





    Technical Parameter



    Thickness Measuring Range 0~10000mm
    Scanned Area 0~10000mm
    Frequency Range 0.5~15MHz
    Sound Speed 1000~15000m/s
    Gain 0~120dB
    Measurement Mode Single, dual, thru
    D-Delay D-Delay -20~+3400μs
    P-Delay 0~99.99μs
    Resolution 0.1mm(2.5mm~100mm) 1mm(>100mm)
    Power Li-battery (working time>10 hours)
    Display LED true color
    Humidity 20%~90%RH
    Temperature -20°C~70°C
    Size 238x155x46mm
    Weight 1kg





    Standard Delivery



    ITEM QTY
    KUT650 Host 1 PC
    Straight Probe 10mm 4MHz 1 PC
    Angle Probe 8x9 60°4MHz 1 PC
    Probe Connecting Cable 2 PCs
    9V Power Adaptor & Cable 1 PC
    PC Software 1 PC
    Communication Cable 1 PC
    Calibration Certificate 1 PC
    User Manual 1 PC
    Instrument Case 1 PC
    Warranty 2 Years







    UT Flaw Detector, Ultrasonic Flaw Test Meter, Ultrasonic Weld Test Equipment Testing

    UT Flaw Detector, Ultrasonic Flaw Test Meter, Ultrasonic Weld Test Equipment Testing
