Digital Electronic Paperboard Carton Bursting Strength Tester Meter / Machine / Test Equipment

Digital Electronic Paperboard Carton Bursting Strength Tester Meter / Machine / Test Equipment

Digital Electronic Paperboard Carton Bursting Strength Tester Meter / Machine / Test Equipment

Product Details:

Place of Origin: Dongguan
Brand Name: DahoMeter
Model Number: DH-CB-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, , D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Usage: Digital Carton Bursting Strength Testing Machine Testing Before Deliver:: Yes
After-sale Customer Service: Yes Measuring Range: (200~6000)kPa
Resolution: 0.1kPa Error Of Indication: ±0.5%


Digital Electronic Paperboard Carton Bursting Strength Tester Meter / Machine / Test Equipment


The paperboard bursting resistance tester is a new-generation paper testing instrument developed and produced by our factory.It adopts a method of measurement and control based on an imported single-chip microcomputer as the core, which realizes all digital, computerized and intelligent of detection, controlling and data processing. The technical parameters and performance indicators are in line with the standards and requirements of ISO2758 "Bursting Strength measurement for paper", QB/T "Bursting strength for Paper and Paperboard" and GB454 "Bursting strength measurement method for paper"
With simple operation, reliable performance and advanced technology, the instrument is an ideal and indispensable equipment for research institutes, paper manufacturers, packaging industry and quality inspection departments.


Standards: JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210, TAPPI T403, ISO2759, GB/T 1539, GB/T 454, GB/T 465.1, GB/T 6545 GB/T6545 , ISO 2759 , GB1539 , QB/T1057 of "Bursting Strength measurement for Cardboard"etc.


The main technical parameters:



Parameter item


Technical index


Measuring range (200~6000)kPa
Resolution 0.1kPa


Accuracy of the indicating value


Error of Indication ±0.5%

Variation of indication

≤0.5%



Pressure (oil delivery) speed.




(175±15)ml/min



Clamp ring geometry size of the sample



In accordance with GB/T1539

Film resistance Raised height 10mm 18mm


Film resistance value


(170~220)kPa (250~350)kPa


Pressure plate diameter



Top pressure plate

Φ31.50mm±0.05
Bottom pressure plate Φ31.50mm±0.05


Sample clamping force.

(400~1200)kPa


Testing system sealing property.




Internal pressure drop within 1min<10%Pmax


Testing unit
Kpa, psi (Lbf/in^2), kgf/cm^2, with unit switching function
Printing function High-speed thermal printer (print content: serial number, maximum, minimum, peak, average, etc.)


Machine weight
About 52kg
Clip ring clamping pressure setting According to GB/T1539-2007
Displaying method LCD display in English

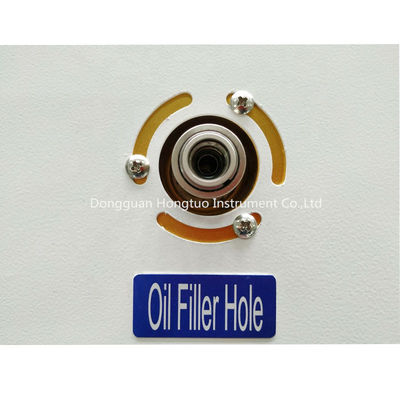

Hydraulic oil Silicone oil
Equipped with air compressors Gas displacement (0.02~0.3)m3/min
Rated pressure (0.6~0.7)MPa
Outline dimension 460*430*560mm
Working power supply AC220V 50Hz
Instrument air supply Equipped with air compressor (customer-supplied, optional)
Standard delivery One piece of wrench, 1 bottle of special silicone oil, 10 pieces of calibration plates, 2 pieces of rubber membranes
