|Minimum Order Quantity:||1 Set|
|Price:||USD1999 to 3999 per Unit|
|Packaging Details:||standard exporting wooden package|
|Delivery Time:||5-8 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||300 sets per month|
|Power:||Electronic||Usage:||Universal Testing Machine|
|Type:||Double Columns||Test Material:||Rubber, Plastic, Fiber, Film,polymer, Woven, Etc|
|Structure:||Floor Type||Function:||Tensile Compression Bending Test|

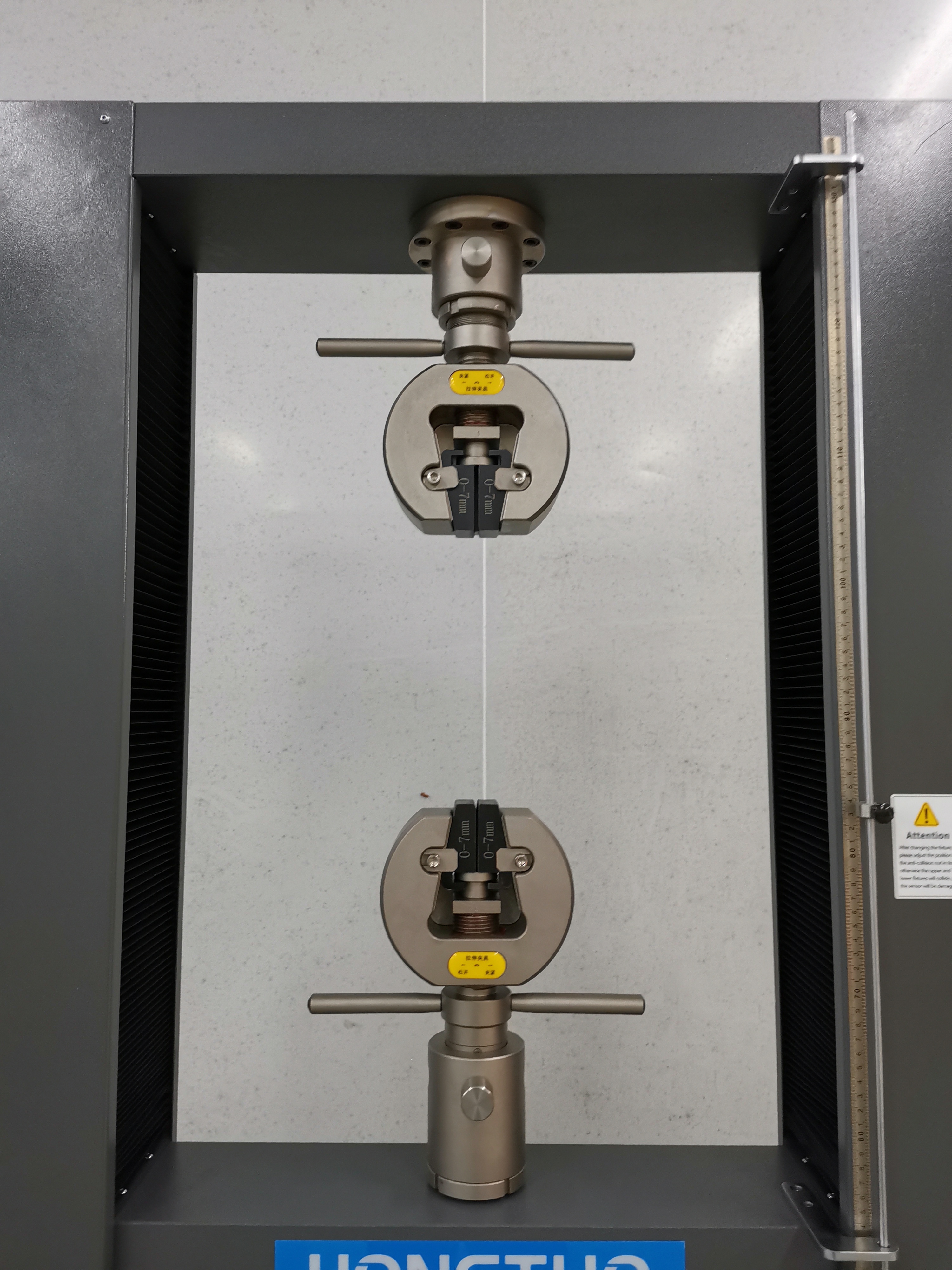

Tensile Strength Tester of Steel Bar Sophisticated Technology Reliable Quality
Electronic Universal Testing Machine is designed and manufactured according to ASTM, ISO, DIN, GBand other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .
|Control model||Computer control||
Constant stress, constant strain,
constant displacement closed-loop control System
|Load range||2%-100% of full scale|
|Load resolution||1/20000 of full scale|
|Deformation test range||/||2%~100|
|Clamp way||Manual clamp||Hydraulic clamp|

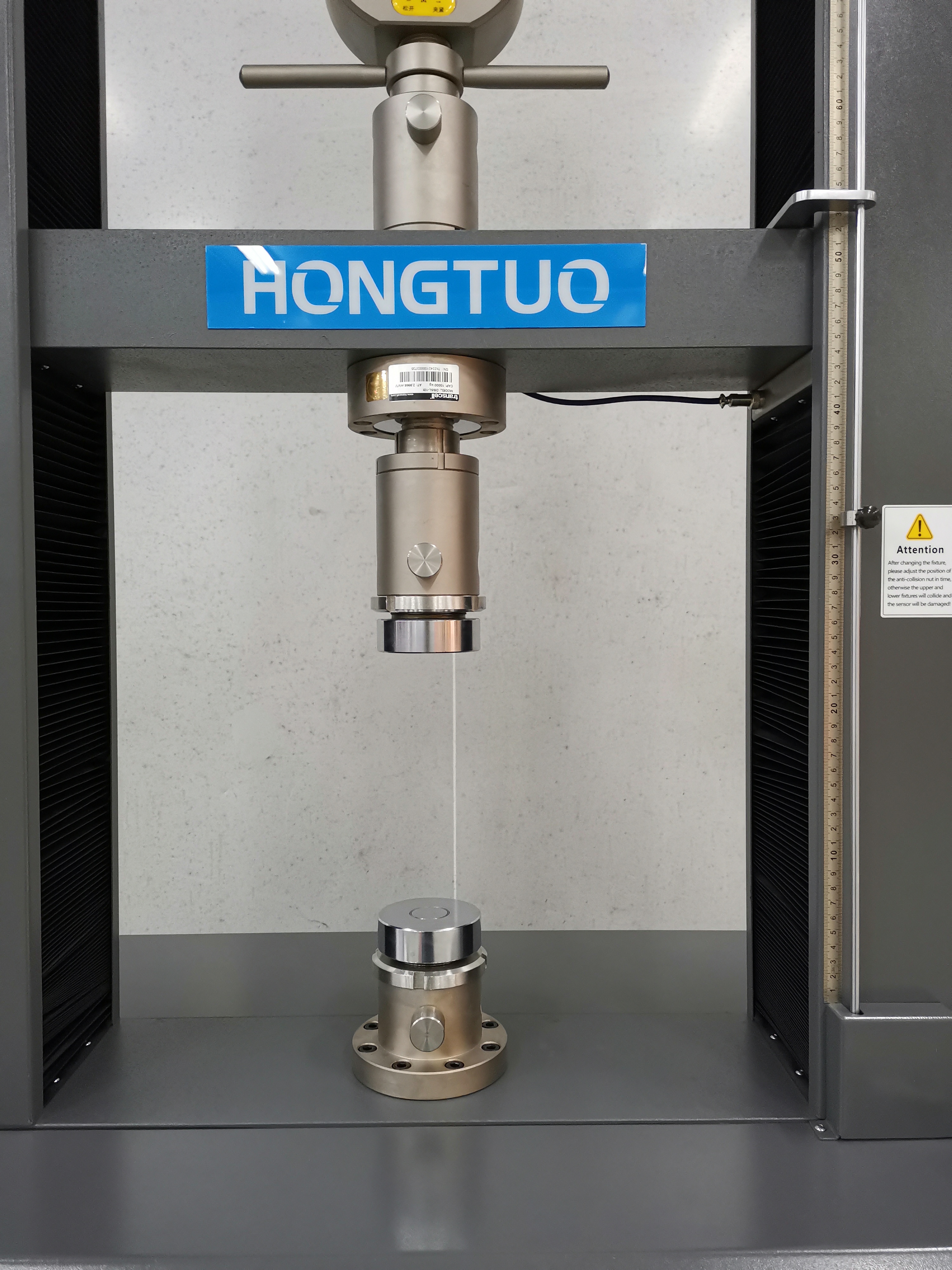

3.1This machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.
3.2 Electrical measurement and control system
3.2.1 With protect function of overload,over current, over voltage, displacement limit,emergency stop, etc .
3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3.2.3 When finished testing, automatic stop.
3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
3.3 Software and software interface
3.3.1 Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions
3.3.2 The control panel has defined all the control parameters, data dealing method and report content and form, different test can be set according to the control panel.
3.3.3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements
3.3.4 With internet interface, can transmit, save and print data. Can connect enterprise Internal LAN and Internet.
3.3.5 Can edit and set the report form freely, also can print the testing data .
