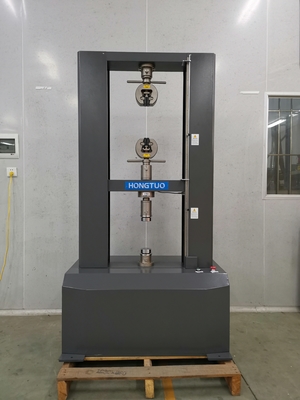

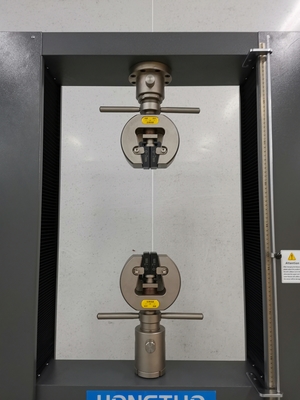

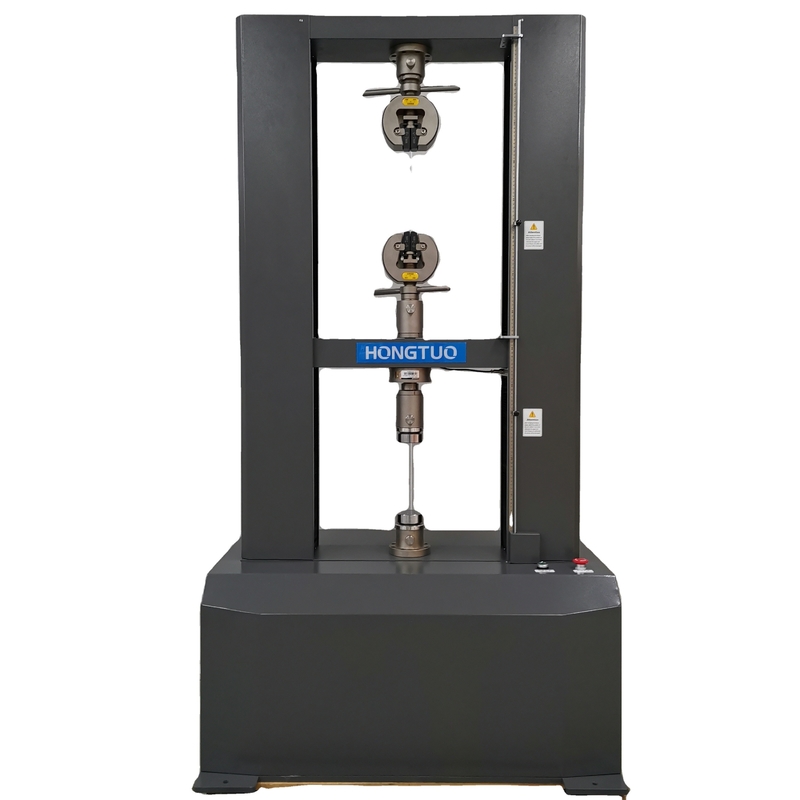

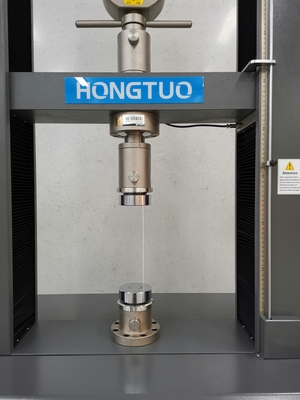

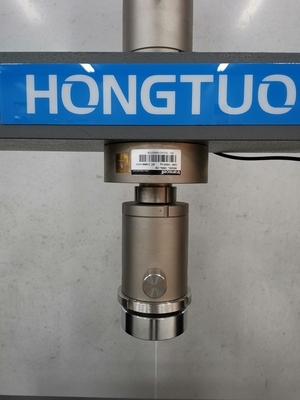

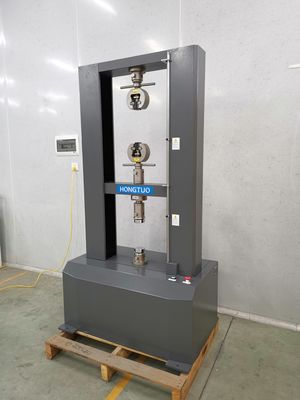

100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E

100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E

    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
  • 100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E

    Product Details:

    Place of Origin: Dongguan, Guangdong
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: WDW-100E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 2999 to 6999 per Unit
    Packaging Details: standard exporting wooden package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power: Electronic Usage: Universal Testing Machine
    Type: Double Columns Test Machine Level: 0.5 Class
    Effective Force Range: 0.4%~100%FS Power Supply: 220V.AC/ 50HZ; 110V.AC/60HZ

    100kN Computer Controlled Universal Testing Machine Automatic

    Universal Strength Tensile Test Equipment WDW-100E



    Introduction:



    This series of computer-controlled testing machine is designed and manufactured by Hongtuo Instruments. It adopts the current international mainstream speed control technology, and the main parts are made of imported professional brand companies; this series has long-term high reliability and stability. With precision, smooth operation and long life. This series is mainly used for material testing with load below 100kN. The functional application covers the testing of most products. It is the perfect testing instrument for mechanical testing by factories, scientific research units and quality inspection organizations.



    It has a wider and more accurate loading speed and force range, and has higher accuracy and sensitivity for measurement and control of load, deformation and displacement. It has stress-strain, force-displacement, power-time, intensity-time and other modes. Can find the maximum force value, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters, suitable for testing and analysis of tensile, compression, peeling, tearing, shearing, etc. The testing machine adopts high-speed DSP platform, which has high integration, powerful control, data processing capability and high reliability, which is unmatched by other processor test machines; all-digital adaptive PID algorithm,the closed-loop(force,deformation,displacement) control system,can realize full digital closed-loop control of force and displacement, and can automatically switch between control loops, and realizes smooth transition without impact when switching between modes.



    Application industry:

    Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;

    According to the standards: ASTM, ISO, DIN, GB and other international standards.

    Specifications:
    Brand
    HongTuo
    Model
    WDW-100E
    Capacity
    KN
    100
    kg
    10000
    lb
    22046
    Unit switching
    G,Kg,lb,N,KN
    Displacement unit switching
    Inch cm mm
    Test machine level
    0.5 class
    Effective force range
    0.4%~100%FS
    Force accuracy
    Within ±0.5% of the indicated value
    Force decomposition
    1/300 000
    Force Power magnification
    Full automatic shift switching
    Displacement resolution
    0.001mm
    Displacement accuracy
    Within ±0.5% of the indicated value
    Deformation measurement range
    0.2%~100%FS
    Deformation indication accuracy
    Within ±0.5% of the indicated value
    Maximum test speed
    500mm/min
    Minimum test speed
    0.1mm/min
    Speed accuracy
    Within ±0.5% of the indicated value
    Beam travel
    Measuring height
    standard
    No grip testing stroke:900mm
    optional
    /
    /
    Effective width
    standard
    532mm
    optional
    Customized according to customer needs
    Fixture configuration
    One set of tensile grip;can choose other grips
    Returning method
    Manual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method
    1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices
    1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protection
    Over maximum load, automatic machine protection
    Accessories
    1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate
    Optional accessories
    Anti-splash device (protective door); computer; printer; small deformation metal extensometer,
    Power supply
    220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weight
    Length*Width*Height:1050mm*700mm*1955mm / around 480KG
    Packing size / weight
    Length*Width*Height:1130mm*780mm*2100mm / around 548KG





    Features:



    (1)This machine is suitable for a wide range of applications

    (2)Powerful function, meet most of the mechanical properties test

    (3)Easy to operate, easy for anyone to operate

    (4)World-class AC servo motor and server for maintenance-free maintenance

    (5)Precision preloaded ball screw

    (6)Smooth operation, high reliability, sturdy and durable

    (7)Accurate measurement,certified by a third-party testing agency

    (8)High speed, low vibration, low noise servo motor drive

    (9)Multilingual application function, adapt to different countries’ using

    (10)Test mode function such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.

    (11)Has a variety of curve modes such as stress-strain,force-displacement, force-time, intensity-time

    (12)Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.

    (13)Flexible capabilities of graph, data sheet, report viewing and printing.

    (14)Automatic homing function that automatically returns to the test start after the test is completed

    (15)With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload; software overload limit protection; breakpoint shutdown protection and other multiple protection devices

    (16)Optional: small deformation metal extensometer



    Detailed Images:
    100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
    100kN Computer Controlled Universal Testing Machine Automatic Universal Strength Tensile Test Equipment WDW-100E
