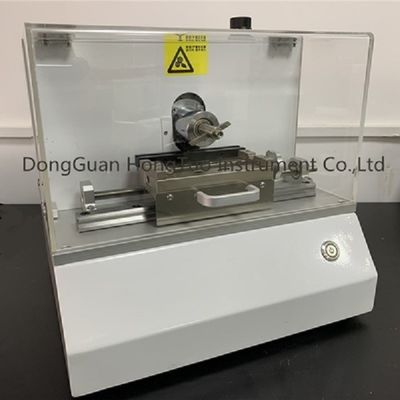

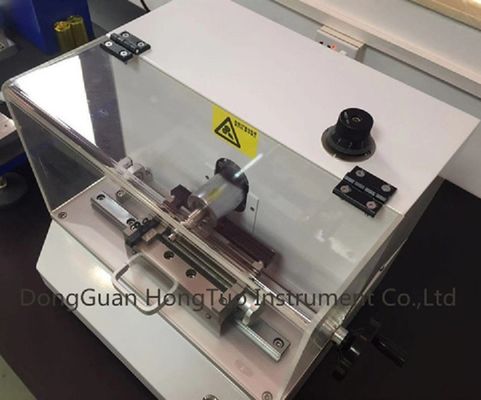

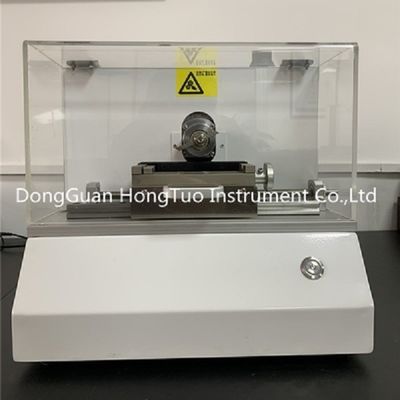

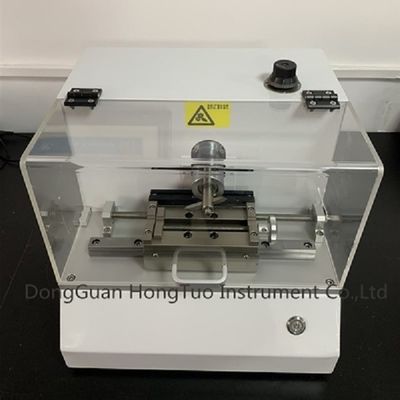

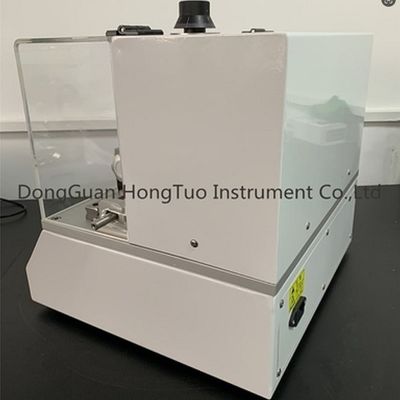

Electronic Notching Machine / Instrument / Equipment / Device / Apparatus / Tool for Izod Charpy Impact Testing

Electronic Notching Machine / Instrument / Equipment / Device / Apparatus / Tool for Izod Charpy Impact Testing

Electronic Notching Machine / Instrument / Equipment / Device / Apparatus / Tool  for Izod Charpy Impact Testing

Product Details:

Place of Origin: Dongguan
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: HT-1600-EL

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Power: 220V±10% Workbench Stroke: >160mm
Feed Speed: 30mm/min Testing Before Delivery: Yes
After-sale Customer Service: Yes Product Name: Electronic Notching Machine



Electronic Notching Machine / Instrument / Equipment / Device / Apparatus / Tool for Izod Charpy Impact Testing





1.Product Model:HT-1600-EL

2.Application Field:

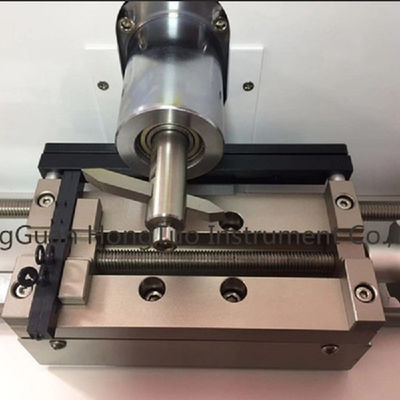

The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester.It can clamp 20 samples at a time, and the processing notch is more than 60 per 10 minutes. The notch size is accurate and the efficiency is high, which greatly reduces the intensity of operation.

3.Basic Standard:

(1)ISO179—2010 Plastic Determination of impact properties of simply supported beams

The 1st part:Non-instrumental impact test;

(2)German version EN ISO 179-1:2010;

(3)ISO180—2001ISO 180-2000 Plastic--Determination of Izod impact strength;

(4)GB/T1043-2008 Plastic Determination of impact properties of simply supported beams

The 1st part :Non-instrument impact test;

(5)GB/T1843—2008 Plastic Determination of impact strength of cantilever beam

4.Specifications:

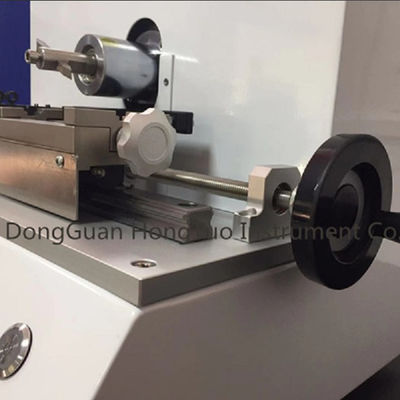

1.Workbench stroke:>160mm

2.Feed speed:30mm/min

3.Sample type:Ⅰmodel

4.Notch type: according to tool specifications

A Model 45°±1° R=0.25±0.025mm

B Model 45°±1° R=1.0±0.025mm

C1 Model Notch thickness :0.8±0.1mm

C2 Model Notch thickness:2.0±0.2mm

5.Feed amount: according to the standard

6.Outer Dimension:600mm×270mm×300mm

7.Power supply voltage: 220V, single-phase three-wire system
