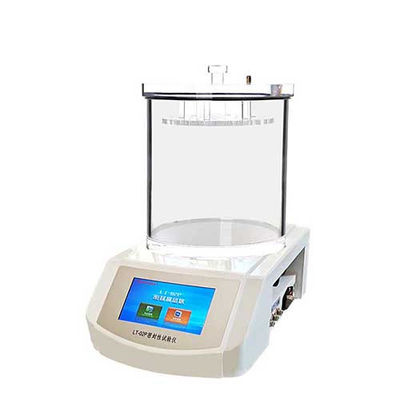

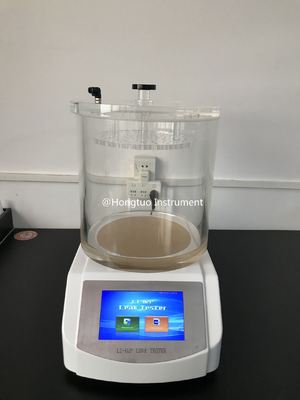

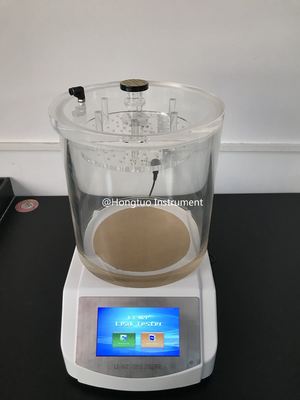

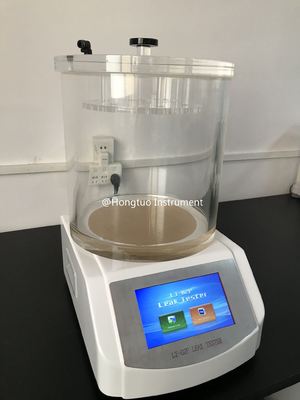

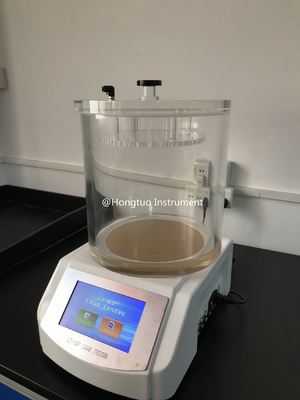

Leak Testing Machine Air Leak Tester, Sealed Package Vacuum Leak Tester, Vacuum Leak Testing Equipment DH-LT-02P

Leak Testing Machine Air Leak Tester, Sealed Package Vacuum Leak Tester, Vacuum Leak Testing Equipment DH-LT-02P

Leak Testing Machine Air Leak Tester, Sealed Package Vacuum Leak Tester, Vacuum Leak Testing Equipment DH-LT-02P

Product Details:

Place of Origin: Dongguan
Brand Name: DahoMeter
Certification: ISO SGS
Model Number: DH-LT-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard wooden package
Delivery Time: 5 to 8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Vacuum Degree: 0-90Kpa Response Speed: <5 Ms
Resolution 0.01 Kpa: 0.01 Kpa Screen 7-inch Touch Screen: 7-inch Touch Screen



Leak Testing Machine Air Leak Tester, Sealed Package Vacuum Leak Tester, Vacuum Leak Testing Equipment DH-LT-02P





Application :



LT-02P sealing tester is suitable for seal test of flexible packaging in food, pharmaceutical, daily chemical, electronics and other industries. The test can effectively compare and evaluate the sealing process and sealing performance of flexible packaging, and provide scientific basis for determining relevant technical indexes. It can also be used to test the sealing performance of the samples after the drop and pressure test. Compared with the traditional design, the intelligent test is realized: the preset of multiple test parameters can greatly improve the detection efficiency; the test mode of increasing pressure can be used to quickly obtain the sample leakage parameters and observe the creep, fracture and leakage of the sample under the stepped pressure environment and different holding time. Vacuum attenuation mode is suitable for automatic sealing detection of high value content packaging in vacuum environment. Printable parameters and test results (optional for printer).





Features :



  • Fully automatic test process with one click to complete the test
  • Built-in high precision sensor, faster response
  • Various modes available to meet the testing needs of different samples
  • Multiple parameters presets for each mode, quick selection for testing
  • Double air path design, more accurate test
  • The number of test groups can be accumulated automatically, and the number of tests can be counted
  • Optional needle printer can save and print test results
  • Up to 500 test results can be saved with printing function (optional)
  • Vacuum degree automatic maintenance and back-blowing unloading
  • Super thick plexiglass vacuum chamber
  • Configuration pressure regulating system, easy operation, easy maintenance
  • Three level management authority (to be purchased separately)
  • Gradient booster mode, more humanized
  • Real-time stop, pressure holding time, higher accuracy



Specification:



Vacuum 0-90 Kpa
Response speed <5 ms
Resolution 0.01 Kpa
Sensor precision ≤0.5级
Built-in mode Single point mode, increment mode

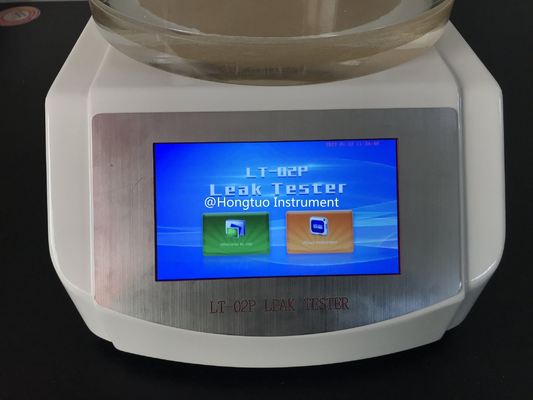

Screen 7-inch touch screen
Pressure regulation range 0.2-0.7 Mpa
Interface size Φ6
Pressure holding time 0-999999 s
Vacuum chamber (other size customized) Φ270 mmx210 mm (H) ,Φ360 mmx585mm (H) ,Φ460 mmx330mm (H)
Equipment size 420(L)X 300(B)X 165(H)mm
Air source Compressed air (supplied by user)
Printer(optional) Needle type
