Place of Origin: | DONGGUAN,CHINA |
Brand Name: | DahoMeter |
Certification: | ISO,SGS |
Model Number: | DH-80 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD3154 |
Packaging Details: | wood standard exported package |
Delivery Time: | 3 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Temperature Deviation: | +-2.0℃ | Humidity Fluctuation: | +-2.5%R.H |
---|---|---|---|
Temp.fluctuation: | +-0.5℃ | Humidity Range: | 20~98% R.H |
Volume: | 80L | Temperature: | 0°C |

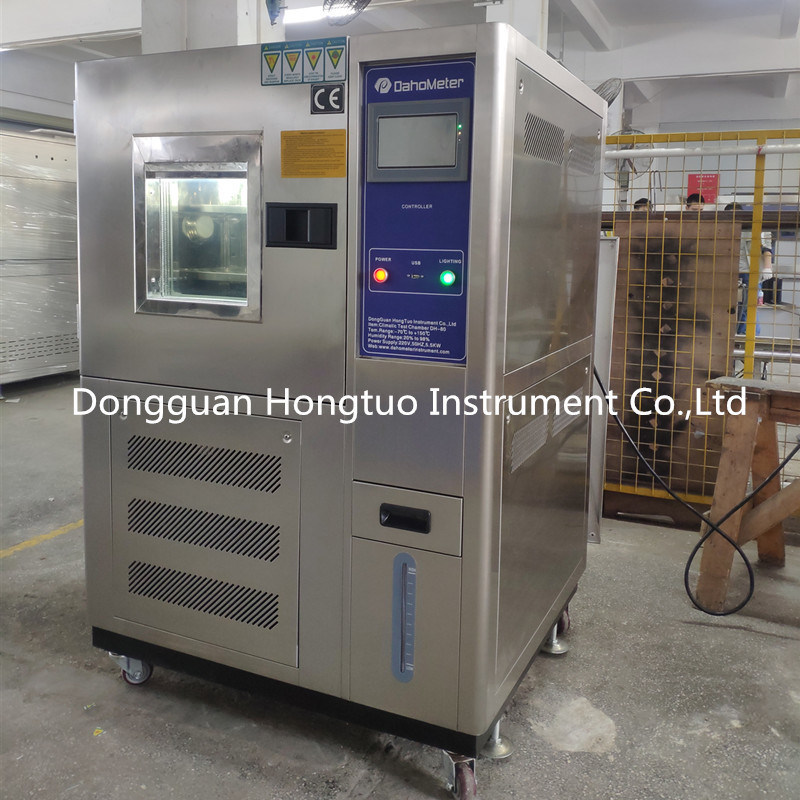

Laboratory Temperature Humidity Control Climatic Test Chamber
Usage:
This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.
Features:
(1)The outer case is made up of SECC steel plate with spraying plastic.CNC processing molding,Beautiful design,Reactionless holder,easy operation
(2)Large LCD touching screen
(3)Adopt micro-computer temperature humidity controller.accuracy and reliability
(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outter power cable or signal cable
(7)Adopt high quality fixed PU running wheel in the bottle of machine
(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%
Specification:
Model | DH-23 | DH-64 | DH-80 | DH-100 | DH-120 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | |
System | Balanced temperature&humidity control system | ||||||||||
Temp.range | -20℃ ~ +150℃;-40℃ ~ +150℃;-70℃ ~ +150℃(Rapid temperature,linearity,nonlinearity is optional) | ||||||||||
Humidity range | 20~98% R.H | ||||||||||
Temp.fluctuation | +-0.5℃ | ||||||||||
Humidity fluctuation | +-2.5%R.H | ||||||||||
Temperature deviation | +-2.0℃ | ||||||||||
Humidity deviation | >75%RH(+2,-3%RH),<75%RH(±5%RH) | ||||||||||
Heat up time | -20℃ to +150℃ about 45 minutes;-40℃ to +150℃ about 60 minutes; -70℃ to +150℃ about 75 minutes | ||||||||||
Cooling time | +20℃ to -20℃ about 40 minutes; +20℃ to -40℃ about 60 minutes;+20℃ to -70℃ about 85 minutes | ||||||||||
Internal dimension | W | 30 | 40 | 40 | 50 | 50 | 50 | 60 | 68 | 100 | 100 |
H | 30 | 40 | 50 | 50 | 50 | 60 | 75 | 80 | 100 | 100 | |
D | 25 | 40 | 40 | 40 | 48 | 50 | 50 | 75 | 80 | 100 | |
External dimension | W | 50 | 60 | 60 | 70 | 70 | 70 | 80 | 88 | 120 | 120 |
H | 125 | 140 | 155 | 155 | 155 | 161 | 171 | 176 | 195 | 195 | |
D | 90 | 110 | 110 | 115 | 123 | 125 | 125 | 150 | 155 | 175 | |
Interior material | SUS#304 stainless steel plate | ||||||||||
Exterior material | Backed painting steel or stainless steel(SUS304) | ||||||||||
Insulation material | Rigid polyurethane foam + glass fiber | ||||||||||
Refrigeration system | Air cooling(water cooling type is option) | ||||||||||
Single section/cascade type,hermetic/semitight compressor,CFC free refrigerant | |||||||||||
Controller | Color LCD screen in English,program communicating function | ||||||||||
Safety device | No welding wire switch,compressor overheating and over current protection,over temperature protection,blower overload protection,dry heating machine protector.low water protection,fault warning system | ||||||||||
Standard accessories | One piece of observation window,one piece of test hole(diameter 5cm),two sets of test racks,one piece of floodlight,one piece of indicator light,four pieces of moving wheels,one piece of himidifying tank,2 meters of power cord,communication interface | ||||||||||
Ambient temp. | 5℃ to 35℃ | ||||||||||
Power | AC380+-10% 50HZ 3 phase 4 wires + Ground wires |
