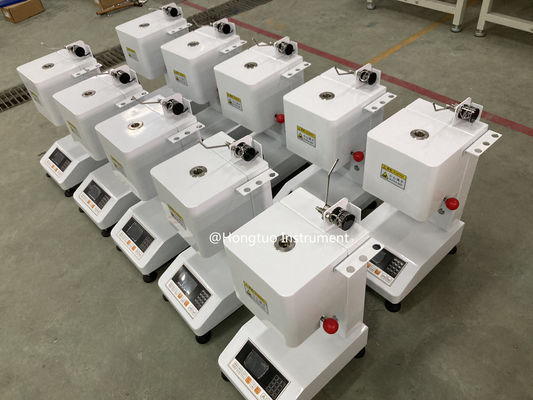

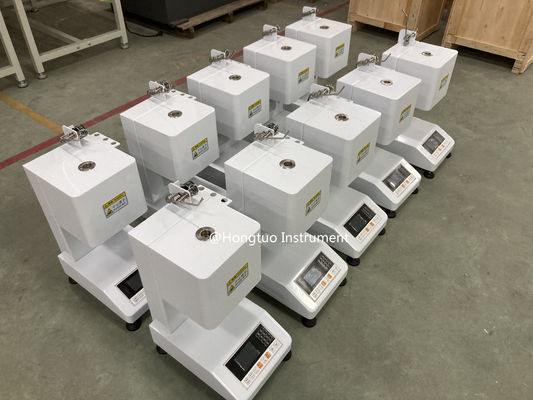

MFI Tester Melt Flow Index Testing Machine for Mask Non-woven Plastic PP Polypropylene

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	DahoMeter
Certification:	FCC,ISO
Model Number:	DH-MI-VP

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Display Resolution:	0.1 °C	Loading Cylinder Diameter:	Φ9.550±0.007 Mm
Loading Cylinder Length:	152±0.100 Mm	Product Name:	Melt Flow Index Testing Machine
Testing Method:	MVR	Testing Before Delivery:	Yes

MFI Tester Melt Flow Index Testing Machine for Mask Non-woven Plastic PP Polypropylene

Hongtuo melt flow index extrusion plastometer applies to both molten high temperature of the PE, gather fang PSF, fluorine plastic, nylon engineering plastic, also suitable for polyethylene, polypropylene polystyrene, ABS resin, pom resins melting temperature lower plastic tests.

Meet the standards: ASTM D 1238, ISO1133, GB/T3682

Characteristic:

1. Hongtuo melt flow index extrusion plastometer using advanced electronic measurement technology, liquid crystal display test results, the micro printer output results and calculating the quality of the melt flow rate (MFR) or melt volume flow rate (MVR) (note: single determination value and many times the average of the cutting material).
2. Tester compact structure, beautiful, the control system can real time measurement and display temperature numerical, has the upper limit temperature protection, constant temperature sound reminders, response time tip etc. Function. The use of advanced PID control technology and high speed and high resolution sampling circuit, make the machine in constant temperature is the following characteristics:
A: heating speed, the dinky overshoot.
B: constant temperature and high precision.
C: in the packing after, can quickly restored constant temperature condition.

Specification:

Brand	DahoMeter
Model	DH-MI-BP	DH-MI-VP	DH-EI-BP		DH-EI-VP	DH-AI-VP
Weight loading method	Manual	Manual	electric		Electric	Automatic
Testing result	Mass	Mass and volume	Mass		Mass and volume	Mass and volume
	MFR	MFR and MVR	MFR		MFR and MVR	MFR and MVR
Outlet diameter	Φ2.095±0.005mm,Outlet length:8.000±0.025mm
Loading cylinder diameter	Φ9.550±0.007mm,Loading cylinder length:152± 0.100mm
Piston head diameter	Φ9.475±0.007mm,Piston head length:6.350±0.100mm
Standard test load	A total of 8 full set of weights
Temperature control range	Room temperature～400℃(Optional～500℃)			Room temperature ~450℃
Temperature control resolution	0.1℃	0.1℃	0.1℃
Constant temperature accuracy	0.5℃	0.5℃	0.2℃
Displacement resolution	None	0.001mm	0.001mm
Temperature control 4h drift	No less than ±0.5℃
Cartridge temperature recovery time after feeding	≤4min
Clock range	0～6000s
Clock resolution	0.1-1s
Countdown time setting	Freely set
Automatic cutting device	Set the interval time (any adjustable from 2 to 2000s) ,automatically complete the cutting
Jog cutting device	Manual button electric cutting
Manual cutting device	Manually rotating the handle to cut
Weight load accuracy	≤±0.5%
Weight load range	325-21600g discontinuous, combined load can meet standard requirements
Measuring range	0.1～100g/10min
Power supply	AC220V / 50HZ or AC110V /60HZ; Choose different power supply voltages
Net weight	48KG
Gross weight	63KG

MFI Tester Melt Flow Index Testing Machine for Mask Non-woven Plastic PP Polypropylene
