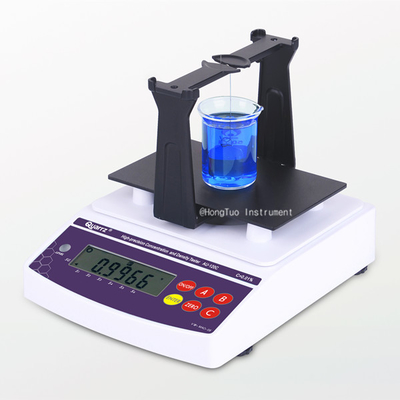

AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter

AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter

    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
    • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
  • AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter

    Product Details:

    Place of Origin: Dongguan, China
    Brand Name: Quarrz
    Certification: CE,FCC,ISO
    Model Number: AU-300HA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD399 to USD1299
    Packaging Details: 45*20*36cm;4.5kg
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Concentration Range: 0.00-100.00% Concentration Resolution: 0.01%
    Baume Resolution: 0.01Bé Measuring Method: Taking Samples
    Testing Before Delivery: Yes

    AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter



    Directly reading hydrochloric acid concentration HCL%,baume Bé,specific gravity SG;
    Accurate measuring;Simple operation;High reliability.


    This device has been researched and developed by "Quarrz",It is based on Archimedes principle;Only need 5 seconds,the concentration value can be displayed;Also the baume Bé,specific gravity SG of hydrochloric acid HCL% can be measured as well;It has been widely applied to chemical industry.


    Application:Thermal power, chemical, rare earth, organic synthesis, bleaching and dyeing processing, metal processing, food industry, inorganic and organic pharmaceutical production, pharmaceutical industry, etc., suitable for checking the concentration of regenerant in the process of preparing high purity water by ion exchange method, or for preparing Boiler, pipe pickling solution, detection of hydrochloric acid concentration in the solution.


    Specification:

    Model:AU-300HA
    concentration range:0.0-100.0%
    concentration resolution:0.1%
    baume resolution:0.1Bé
    density resolution:0.001g/cm3

    Model:AU-120HA
    concentration range:0.00-100.00%
    concentration resolution:0.01%
    baume resolution:0.01Bé
    density resolution:0.0001g/cm3


    Features:

    (1)Direct reading:hydrochloric acid concentration HCL%,baume Bé,specific gravity SG.
    (2)No need to check data table;No need to input the conversion coefficient of density and
    concentration.
    (3)No limitation of concentration range;Upto 0.00-100.00%.
    (4)Concentration resolution can be upto:0.01%.
    (5)Function of calculating temperature compensation coefficient automatically at any
    interval temperature.No need manual computation.temperature range:0~99.9℃.
    (6)Manual inputting temperature coefficient is allowed.compensation range:
    (0.00001~9.99999)/ ℃
    (7)Can measure hydrochloric acid concentration HCL%,baume Bé,specific gravity SG at
    standard temperature 20℃.
    (8)The displaying sequence of HCL%,baume Bé,specific gravity SG can be set freely.
    (9)Function of air buoyancy compensation;and weights volume thermal expansion
    coefficient compensation.
    (10)Only need 50ml or less specimen.High precision,easy operation,stable and durable.
    (11)Equipped with AU-20B anti-corrosivity liquids measuring accessories.
    (12)Including RS-232C interface.Optional accessories AU-40A cable can connect
    PC.AU-40 printer can print data.
    (13)Equipped with special windproof dustproof cover.convenient combination.sturdy and stable.


    Measuring Procedure:

    (1)Place beaker filled with specimen on testing board.deduct weight of pothook.
    (2)Make standard weights hanged on the pothook and submerged into liquids to be tested totally.hydrochloric acid concentration HCL%,baume Bé,specific gravity SG will be
    displayed.


    Standard Accessories:

    host,measurement plate,AU-20B anti-corrosivity liquid measuring assembly.tweezer,
    thermometer,100g weights,windproof dustproof cover,measuring
    support,power transformer.
    AU-20B standard anti-corrosivity liquid measurement assembly:
    two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of
    anti-corrosivity beakers.


    Optional Accessories:
    Optional Accessories:AU-40 printer,AU-20B anti-corrosivity liquid measuring
    assembly,AU-20A standard liquid measuring assembly.AU-40A cable.


    Anti-counterfeiting Announcement:
    The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
    Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
    Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
    Method three:Check security code that generate automatically by machine number.


    Technical Specification:

    Brand Quarrz
    Model AU-300HA AU-120HA
    H2SO4% Concentration Resolution 0.1% 0.01%
    H2SO4% Concentration Range 0.0~100.0% 0.00~100.00%
    Baume Resolution 0.1°Bé 0.01°Bé
    Baume Range 0.1~100.0°Bé 0.01~100.00°Bé
    Density Resolution 0.001 g/cm3 0.0001 g/cm3
    Density Range 0.001—99.999g/cm3 0.0001—99.9999g/cm3
    Measuring Type 0.0~100.0% (0.00~100.00%)
    Measuring Time About 5 seconds
    Measuring Method Taking samples
    Temperature Compensation Standard 20℃
    Other target temperature
    Temperature Compensation Coefficient Automatically calculate compensation coefficient and input
    Manual input
    Temperature Compensation Coefficient Range (0.00001~9.99999)/
    Result displaying Standard 20℃:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Target temperature: sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Actual temperature:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Measuirng Assembly Aluminum alloy measuring shelf,Aluminum alloy measuring plate
    Measuring Principle Archimedes principle
    Measuring Calibration/Verification Method Distilled water calibration/Distilled water verification
    Data Output Method RS-232C interfac,PC or AU-40 printer
    Standard Accessories

    host,measurement plate,AU-20B anti-corrosivity liquid measuring
    assembly.tweezer,thermometer,100g weights,windproof dustproof cover,measuring
    support,power transformer.
    AU-20B standard anti-corrosivity liquid measurement assembly:
    two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of anti-corrosivity beakers.

    Optional Accessories AU-40 printer,AU-20B anti-corrosivity liquid measuring assembly,AU-20A standard liquid measuring assembly.AU-40A cable.
    Power Supply AC100V~240V 50HZ/60HZ(Default as European type, customer can choose other international standards)
    Gross Weight/Size 4.5kg/42.5 cm×17.5 cm×32.5cm



    AU-120HA High Precision Hydrochloric Acid Concentration and Density Meter, HCl Digital Liquid Density Meter
