|Place of Origin:||Dongguan, China|
|Minimum Order Quantity:||1 set|
|Price:||USD399 to USD1299|
|Delivery Time:||3-7 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||300 sets per month|
|H2SO4% Concentration Resolution:||0.01%||H2SO4% Concentration Range:||0.00~100.00%|
|Baume Resolution:||0.01°Bé||Density Resolution:||0.0001 G/cm3|

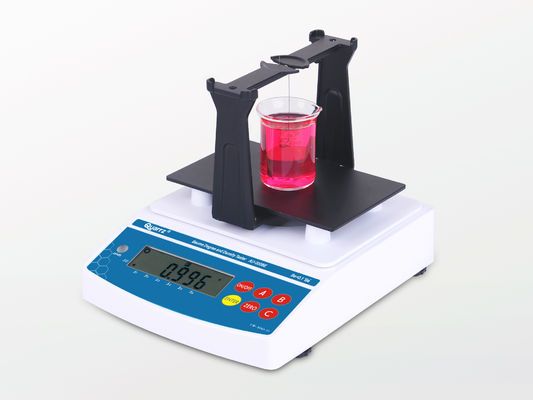

Acid Concentration Meter for H2SO4, Sulfuric Acid Density Meter, Industrial Liquid Measuring Instruments AU-120SA
Directly reading sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG;
Accurate measuring;Simple operation;High reliability.
This device has been researched and developed by "Quarrz",It is based on Archimedes principle;Only need 5 seconds,the concentration value can be displayed;Also the baume Bé,specific gravity SG of sulfuric acid H2SO4% can be measured as well;In accordance with GB/T11198.1-11198.15,GB/T5526,13531,15223,5009;It has been widely applicated
to chemical industry.
Fertilizer,pigment,steel pickling,black metal exaction,detergent,waste water treatment,steam,laboratory.
(1)Direct reading:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG.
(2)No need to check data table;No need to input the conversion coefficient of density and
(3)No limitation of concentration range;Upto 0.00-100.00%.
(4)Concentration resolution can be upto:0.01%.
(5)Function of calculating temperature compensation coefficient automatically at any
interval temperature.No need manual computation.temperature range:0~99.9℃.
(6)Manual inputting temperature coefficient is allowed.compensation range:
(7)Can measure sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG at
standard temperature 20℃.
(8)The displaying sequence of H2SO4%,baume Bé,specific gravity SG can be set freely.
(9)Function of air buoyancy compensation;and weights volume thermal expansion
(10)Only need 50ml or less specimen.High precision,easy operation,stable and durable.
(11)Equipped with AU-20B anti-corrosivity liquids measuring accessories.
(12)Including RS-232C interface.Optional accessories AU-40A cable can connect
PC.AU-40 printer can print data.
(13)Equipped with special windproof dustproof cover.convenient combination.sturdy and stable.
(1)Place beaker filled with specimen on testing board.deduct weight of pothook.
(2)Make standard weights hanged on the pothook and submerged into liquids to be tested totally.sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG will be
host,measurement plate,AU-20B anti-corrosivity liquid measuring assembly.tweezer,
thermometer,100g weights,windproof dustproof cover,measuring
AU-20B standard anti-corrosivity liquid measurement assembly:
two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of
Optional Accessories:AU-40 printer,AU-20B anti-corrosivity liquid measuring
assembly,AU-20A standard liquid measuring assembly.AU-40A cable.
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
Method three:Check security code that generate automatically by machine number.
|H2SO4% Concentration Resolution||0.1%||0.01%|
|H2SO4% Concentration Range||0.0~100.0%||0.00~100.00%|
|Density Resolution||0.001 g/cm3||0.0001 g/cm3|
|Measuring Type||0.0~100.0% (0.00~100.00%)|
|Measuring Time||About 5 seconds|
|Measuring Method||Taking samples|
|Temperature Compensation||Standard 20℃|
|Other target temperature|
|Temperature Compensation Coefficient||Automatically calculate compensation coefficient and input|
|Temperature Compensation Coefficient Range||(0.00001~9.99999)/ ℃|
|Result displaying||Standard 20℃:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)|
|Target temperature: sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)|
|Actual temperature:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)|
|Measuirng Assembly||Aluminum alloy measuring shelf,Aluminum alloy measuring plate|
|Measuring Principle||Archimedes principle|
|Measuring Calibration/Verification Method||Distilled water calibration/Distilled water verification|
|Data Output Method||RS-232C interfac,PC or AU-40 printer|
host,measurement plate,AU-20B anti-corrosivity liquid measuring
|Optional Accessories||AU-40 printer,AU-20B anti-corrosivity liquid measuring assembly,AU-20A standard liquid measuring assembly.AU-40A cable.|
|Power Supply||AC100V~240V 50HZ/60HZ(Default as European type, customer can choose other international standards)|
|Gross Weight/Size||4.5kg/42.5 cm×17.5 cm×32.5cm|
