    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: DahoMeter
    Certification: CE,FCC
    Model Number: DH-YG461E

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 5-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Pressure Range: 0~4000Pa Self-set Pressure Drop Measurable Air Permeability: 0.1~12000mm/s
    Measurement Error: ≤±2% Measurable Fabric Thickness: ≤15mm
    Weight: 80Kg Power Supply: AC 220V±10V 50Hz

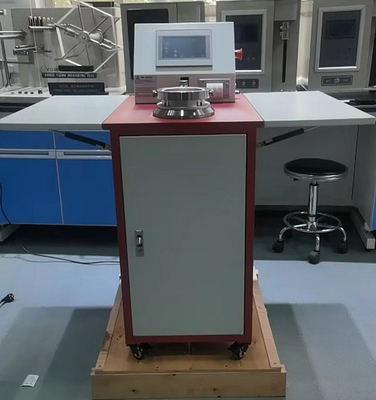

    Automatic Fabric Air Permeability Tester Digital Textile Air Permeability Testing Equipment DH-YG461E





    It is used to rapid testing of the air permeability of various sheet materials such as coated fabrics, filter paper, filter media, and plastics.



    Standards:GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636



    Features:

    ●High precision pressure sensor.

    ●Intelligent and flexible touch interface, the whole process of dynamic test is displayed.

    ●Full-scale automatic detection and conversion of air permeability and air permeability of various samples.

    ●Can arbitrarily set different national standard parameters and units, and the test results can be directly printed out without conversion.

    ●Measurement unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min



    Specification:

    Pressure range 0~4000Pa self-set pressure drop
    Measurable air permeability 0.1~12000mm/s
    Measurement error ≤±2%
    Measurable fabric thickness ≤15mm
    Suction volume adjustment data feedback dynamic adjustment
    Sample area setting circle 5cm2; 20cm2; 50cm2; 100cm2; optional
    Sample diameter setting circle Ф50mm (≈19.6cm2) Ф70mm (≈38.5cm2)
    Nozzles 11 in total
    Data processing capacity ≤1000 trials
    Data output high-definition touch screen display; built-in micro-printer;
    Power supply AC 220V±10V 50Hz
    Power consumption 200W
    Weight 80Kg
    Appearance 600×700×1100mm (L×W×H)



    Automatic Fabric Air Permeability Tester Digital Textile Air Permeability Testing Equipment DH-YG461EAutomatic Fabric Air Permeability Tester Digital Textile Air Permeability Testing Equipment DH-YG461EAutomatic Fabric Air Permeability Tester Digital Textile Air Permeability Testing Equipment DH-YG461E
