    Product Details:

    Place of Origin: DongGuan
    Brand Name: Quarrz
    Certification: CE,FCC
    Model Number: AU-300PM/AU-600PM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Nigotiable
    Packaging Details: Negotiable
    Delivery Time: In stock
    Payment Terms: D/A, D/P, Western Union, MoneyGram, T/T, L/C
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Density Resolution: 0.001g/cm3 Weight Resolution: 0.005g
    RS-232C: Yes Power Supply: AC100V~240V 50HZ/60HZ (Europe Standard)
    Testing Before Delivery: Yes Density Range: 0.001~99.999g/cm3

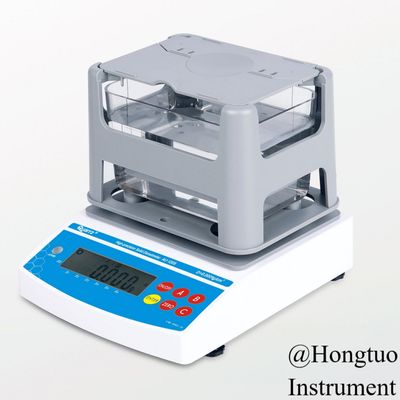

    AU-300PM/AU-600PM High Precision Porosity Metal Density Tester, Digital Density Meter Factory Price





    Porosity is more than 2%,compression moulding by metal powder,and feature of water absorption,that is called porosity metal materials.of which normal density range is from 2.0 to 8.5g/cm3.This series instrument according to ASTM B311,B328,GB/T5163,JIS Z2505,JIS Z2506,MPIF Standard42,MPIF Standard45.,etc standards;Adopt high precision weight sensor,water measurement equipment with no binding sample;Density value can be tested instantly;Function of saturation measuring method,surface covering waterproof method,high viscosity medium liquid method and so on;



    Measurement Type:

    • Semi-finished products made up by compression moulding method through make-up machine.
    • MIM injection moulding products.
    • Products with high temperature sintering
    • Porosity,oil content.
    • Real density for metal powder.
    • performance density and apparent density for metal powder
    • Density for other solids.

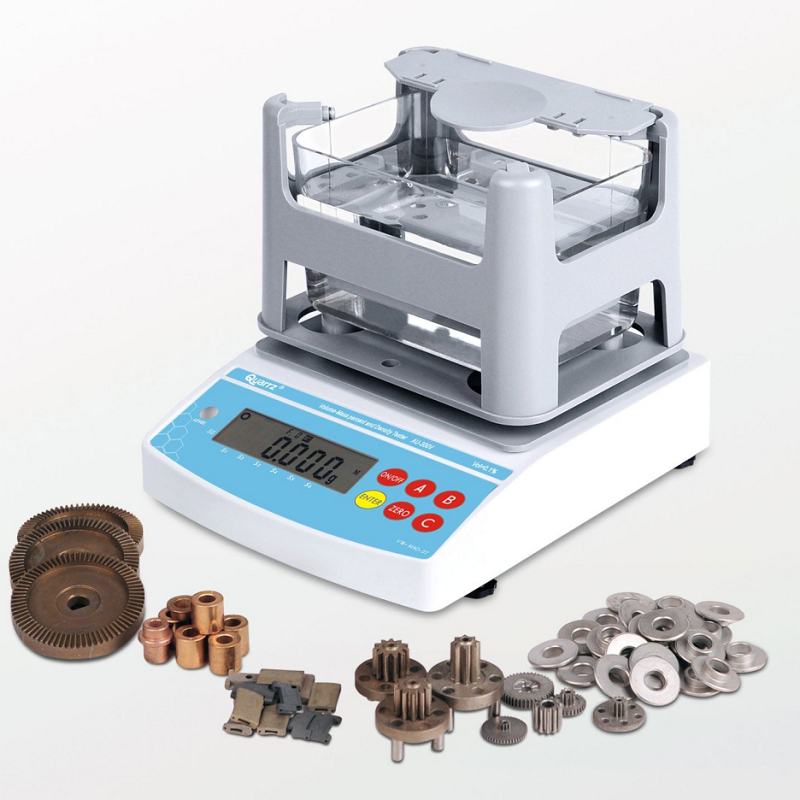

    Measuring Typical Products:



    Powder metallurgy

    Oil bearing with copper-base,iron-base,iron copper-base;structural parts with
    copper-base,iron-base,iron copper-base;piston of shock absorber,water rotor pump for auto,chain wheel,transmission gear,roller gear,electrical gear,eccentric gear,reducer casing gear,engine chain wheel,bevel gear,sector gear,duplicate gear,filter,spring bolt,planetary gear carrier,spiral bevel gear,internal gear,bevel wheel,transmission gear,belt pulley,synchronizing wheel,tooth shape axle sleeve.,etc.

    Magnetic materials
    fine ceramics



    Measuring Resolution:
    AU-120PM,AU-200PM density resolution:0.0001g/cm3
    AU-300PM,AU-600PM,AU-900PM,AU-1200PM density resolution:0.001g/cm3



    Function and Features:

    • Convenient,rapid measuring,accuracy.
    • Unobstructed without lifting lid design,more simpler operation.
    • High precison weight resolution,makes measuring result more accuracy and reliability.
    • Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.
    • No need to bundle samples.weight for suspension wire can be deducted to zero.
    • Either water or other liquid can be used as medium.
    • Function of actual water temperature setting,medium density setting.
    • Function of air buoyancy compensation setting,top and bottom limitation for density setting.
    • Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
    • Adopt precision aluminum alloy completed testing board.
    • Equiped special windproof dustproof cover,which makes the structure more convenient and durable.
    • Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
    • Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
    • Power supply:AC 100V-240V 50HZ/60HZ Europe standard



    Standard Accessories:
    (1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer



    Porosity Materials Measuring Procedure:

    1. Place samples on testing board to measure weight in air.press ENTER key to memory.
    2. After did water repellent treatment on samples,place it on testing board to measure weight in air.press ENTER key to memory.
    3. Place samples into water to measure weight in water.press ENTER key to memory.density value will be displayed.

    Anti-counterfeiting Announcement:
    The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

    • Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
    • Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
    • Method three:Check security code that generate automatically by machine number.



     Technical Specification:



    Brand

     QUARRZ

    Model

    AU-300PM

    AU-600PM

    AU-900PM

    AU-1200PM

    AU-120PM

    AU-200PM

    Weight

    Range

    0.005~300g

    0.005~600g

    0.01~900g

    0.01~1200g

    0.001~120g

    0.001~200g

    Standard deviation

    0.005g

    0.005g

    0.01g

    0.01g

    0.001g

    0.001g

     Density

    readability

    0.001 g/cm3

    0.0001 g/cm3

    Testing board

    ABS injection moulding

    Aluminum alloy

    die-casting moulding

    Density range

    0.001~99.999g/cm3

    0.0001~99.9999g/cm3

    Result display

    Apparent density,volume density,wet density,overall porosity,effective porosity,open pore volume,bulk volume,oil content,water absorption

    Measuring time

    About 5 seconds

     Opening lid

    method for

    testing board

    Unobstructed without lifting lid design

    Water tank

    Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm)

    Parameter setting

    Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting

    Calibration method

    Single key calibration,automatically testing

    Standard components

    (1)   host(2)water tank(3)testing board(4)tweezers(5)thermometers

    (6)weight(7)windproof dustproof cover(8)power transformer

    interface

    Standard RS-232 interface

    Optional accessories

    AU-40 printer,data connecting wire

    Power supply

    AC100V~240V  50HZ/60HZ   (Europe standard)

    Gross weight/size

    4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm

























































    The Advantage of New Quarrz Solids Density Meter



    AU series solids density meter advantage.jpg
