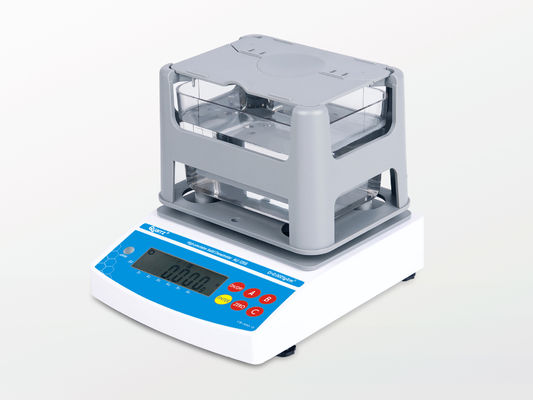

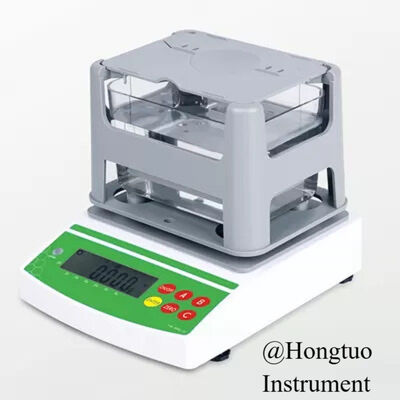

AU-120PM/AU-200PM High Precision Rubber Plastic Porous Density Tester,Plastic Testing Equipment, Metal0.0001 g/cm3

AU-120PM/AU-200PM High Precision Porosity Metal Density Tester, Digital Density Meter Factory Price

Porosity is more than 2%,compression moulding by metal powder,and feature of water absorption,that is called porosity metal materials.of which normal density range is from 2.0 to 8.5g/cm3.This series instrument according to ASTM B311,B328,GB/T5163,JIS Z2505,JIS Z2506,MPIF Standard42,MPIF Standard45.,etc standards;Adopt high precision weight sensor,water measurement equipment with no binding sample;Density value can be tested instantly;Function of saturation measuring method,surface covering waterproof method,high viscosity medium liquid method and so on;

Measurement Type:

• Semi-finished products made up by compression moulding method through make-up machine.
• MIM injection moulding products.
• Products with high temperature sintering
• Porosity,oil content.
• Real density for metal powder.
• performance density and apparent density for metal powder
• Density for other solids.

Measuring Typical Products:

Powder metallurgy

Oil bearing with copper-base,iron-base,iron copper-base;structural parts with
copper-base,iron-base,iron copper-base;piston of shock absorber,water rotor pump for auto,chain wheel,transmission gear,roller gear,electrical gear,eccentric gear,reducer casing gear,engine chain wheel,bevel gear,sector gear,duplicate gear,filter,spring bolt,planetary gear carrier,spiral bevel gear,internal gear,bevel wheel,transmission gear,belt pulley,synchronizing wheel,tooth shape axle sleeve.,etc.

Magnetic materials
fine ceramics

Measuring Resolution:
AU-120PM,AU-200PM density resolution:0.0001g/cm3
AU-300PM,AU-600PM,AU-900PM,AU-1200PM density resolution:0.001g/cm3

Function and Features:

• Convenient,rapid measuring,accuracy.
• Unobstructed without lifting lid design,more simpler operation.
• High precison weight resolution,makes measuring result more accuracy and reliability.
• Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.
• No need to bundle samples.weight for suspension wire can be deducted to zero.
• Either water or other liquid can be used as medium.
• Function of actual water temperature setting,medium density setting.
• Function of air buoyancy compensation setting,top and bottom limitation for density setting.
• Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
• Adopt precision aluminum alloy completed testing board.
• Equiped special windproof dustproof cover,which makes the structure more convenient and durable.
• Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
• Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
• Power supply:AC 100V-240V 50HZ/60HZ Europe standard

Standard Accessories:
(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer

Porosity Materials Measuring Procedure:

1. Place samples on testing board to measure weight in air.press ENTER key to memory.
2. After did water repellent treatment on samples,place it on testing board to measure weight in air.press ENTER key to memory.
3. Place samples into water to measure weight in water.press ENTER key to memory.density value will be displayed.

Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

• Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
• Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
• Method three:Check security code that generate automatically by machine number.

 Technical Specification:

The Advantage of New Quarrz Solids Density Meter
