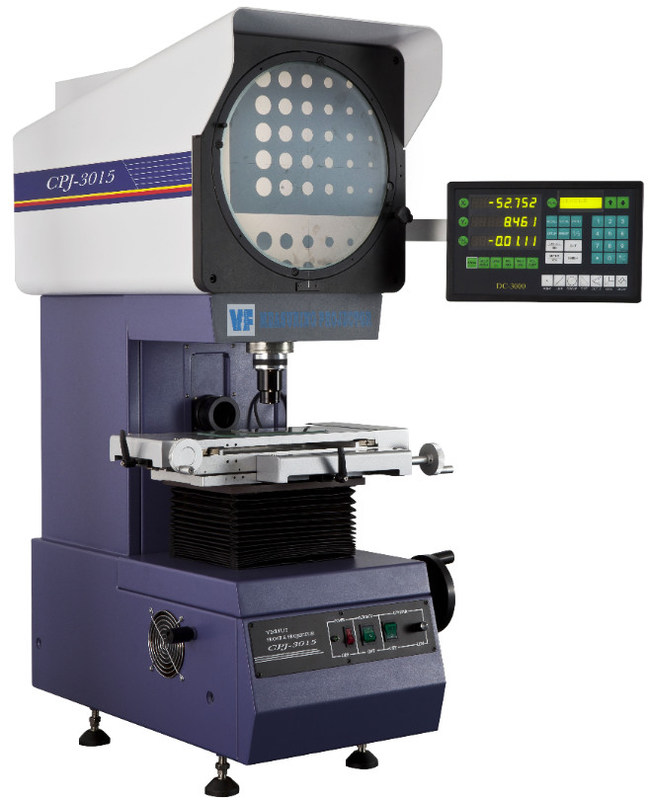

CPJ Series High Precision Profile Projector
Features:
Equipped with foot switch and multifunctional data processing meter,The profile projector possesses stable performance.convenient data output and sample taking function upgrades efficiency.
Usages:
1. Profile projector is mainly used for the measurement of the mechanical parts of the length,
angle, contour and surface shape.
2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.
3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
Specification:
| Model |
Inverted image |
CPJ-3015 |
CPJ-3020 |
CPJ-3025 |
CPJ-3030 |
CPJ-3040 |
| Erect image |
CPJ-3015Z |
CPJ-3020Z |
CPJ-3025Z |
CPJ-3030Z |
CPJ-3040Z |
| Worktable |
Metal table’s size(mm) |
354*228 |
404*228 |
450*280 |
500*330 |
606*466 |
| Glass table’s size(mm) |
210*160 |
260 *160 |
306 *196 |
321*221 |
450*350 |
| X-axis travel(mm) |
150 |
200 |
250 |
295 |
400 |
| Y-axis travel(mm) |
100 |
100 |
150 |
195 |
300 |
| Z-axis travel(mm) |
100 focus |
| Indication error(µm) |
E1XY=2.5+L/100 |
| Resolution(µm) |
0.5 |
| Projector screen |
Screen size (mm): |
Ø 312 workable range > Ø 300(crosshairs) |
| Screen rotary range: |
0°~360° |
| Resolution(X-axis,Y-axis): |
1´ or 0.01° |
| Lens |
Lens multiple: |
10X(option) 20X(option) 50X(option) 100X(option) |
| Object view(mm): |
Ø30 Ø15 Ø6 Ø3 |
| Working distance(mm): |
77.7 44.3 38.4 25.3 |
| Max measuring height(mm): |
90 90 90 90 |
| Data Processing System |
DC-3000 multi-function data processing system, can realize the transition of English and Chinese, it can be used to gather the data and measure the point, line, circle, angle and distance. |
| Illumination |
The illumination of transmission and reflection: 24V/150W-halogen lamp. |
| Power |
110-240V(AC), 50/60HZ, Total power:400W |
| Cooling |
Forced cooling |
| Dimensions |
L*W*H(mm) |
780*780*1100 |
780*780*1100 |
810*780*1120 |
900*780*1020 |
810*780*1120 |
| Weight |
Unit:(kg) |
160 |
160 |
180 |
250 |
250 |
| Optional |
Mini-printer, Edge detector,M2D software and so on |
Package:
Accessories list:
| Standard Accessories (for free) |
| Commodity |
Usage |
Photo |
Quantity |
| 1.Spare halogen lamp |
Inside, under the worktable, for lighting work piece. |
|
2 |
| 2.Spare 5mA fuse |
To protect the safe operation of the circuit, and projector |
|
5 |
| 3.Optical lens |
Enlarge work piece |
|
1 |
| 4.DC-3000 Data processing system |
Operation system, connect with projector, can measure circle, length, width, angle, and so on… |
|
1 |
| 5.Standard block |
All elements in it are used to calibrate the precision of machine |
|
1 |
| 6.Foot switch |
Connect with DC-3000, help to catch the point of profiles |
|
1 |
| 7.Dust cover |
Maintain the projector clean |
|
1 |
