Place of Origin: | DongGuan |
Brand Name: | DahoMeter |
Certification: | CE,FCC,ISO |
Model Number: | DH-3000K |
Minimum Order Quantity: | one set |
---|---|
Price: | Negotiable |
Packaging Details: | 42 x 16 x 32cm |
Delivery Time: | Stock |
Payment Terms: | T/T, D/A, D/P, Western Union, L/C, MoneyGram |
Supply Ability: | 100 SETS |
Density Resolution: | 0.001g/cm3 | Weight Resolution: | 0.01g |
---|---|---|---|
Maximum Weight: | 3000g | Necessary Weight For Density: | 5g |
Measuring Time: | 10S | Power: | Default As AC 100V – 240V(Europe Standard),based On Destination Country Which Standards Be Took |
Application:
pawn broking, bank, jewelry shop, precious-metals recovery, jewelry factory, gemstone testing center,precious metals researching.etc.
In accordance with archimedes principle water buoyancy method, GB/T1423 of precious metals testing standard,and so on.
Combine Archimedes principle with micro electronic technique and adopt sensor imported from Germany,the purity can be calculated through measuring density of precious metals.It has the features of no damage testing,simple operation,fast and accurate.
K value of gold,PT value of platinum,density value,purity percentage can be measured.
Features:
a) Quickly measure the purity of gold,platinum,and other precious metals.Distinguish if the object is fake or genuine.
b) No damage testing, cleaning and environmental protection.
c) Measuring just need 10 seconds,convenience,stabilization,and accuracy.
d) Multi-mode,gold mode,platinum mode,other precious metals mode can be shifted.
e) Multi-function;the purity of other precious metals can be measured.such as tin,copper,silver.etc.also it can be used as precision balance.
f) Function of top and bottom limitation,it can display OK,HI,LO in the state of
qualified,exceed,less.Prompt alarm.
g) Function of automatic zero tracking,buzzer warning,and overload warning.
h) Function of solution compensation.Either water or other liquids can be used as medium.
i) Adopt the completed high-capacity measuring accessories with the transparent injection mould tank,which can resist wear,fall off,and corrosion.
j) Adopt the completed special wind and dust cover,which makes the structure convenient and durable.
k) Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with machine.
l) Battery and car charger is optional.Convenient for using in case of power outage.
m) Light yellow backlight is optional.
Specification
Model |
DH-3000K |
|
Maximum weight |
3000g |
|
Weight resolution |
0.01g |
|
Density resolution |
0.001g/cm3 |
|
Measuring time |
10S |
|
Testing board |
Completed high-capacity plastic testing board |
|
Measuring type |
Traditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc. |
|
Gold mode |
Display k value |
The K value of mixture of gold,silver,and copper;mixture of gold and copper;mixture of gold and silver; |
Display purity percent |
The purity content of mixture of gold,silver and copper;mixture of gold and copper;mixture of gold and silver; |
|
K value range |
9K~24K |
|
Copper and silver proportion setting |
Cycle seting as user’ prefer(default 7:3) |
|
platinum |
Display value |
PT percent,density value,volume |
PT value range |
Pt600 - Pt1000 |
|
Measuring container |
completed injection forming transparent professional measurement tank (size:length16.9mm×wide9.8mm×high8.3mm) |
|
Parameter setting |
water temperature setting,measuring medium density setting |
|
principle |
Archimedes principle |
|
Memory method |
Two procedures |
|
Correction method |
auto correction with one button,auto detection. |
|
Output method |
output and print testing data conveniently with standard communication interface of RS-232C. |
|

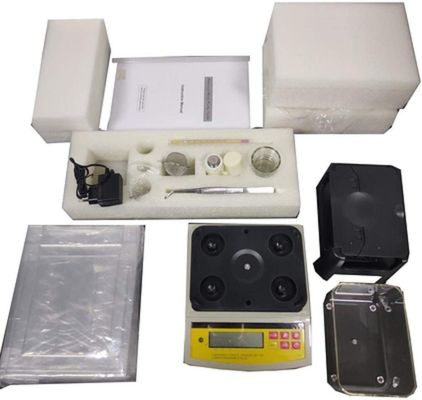

Standard accessories |
Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer |
|
wind and dust cover |
Adopt the unicase dedicated wind and dust cover |
|
Option accessories |
DE-40 printer |
|
power |
AC100V - 240V |
|
Main features |
Simple operation,digital display,accurate measurement,stable,durable |
