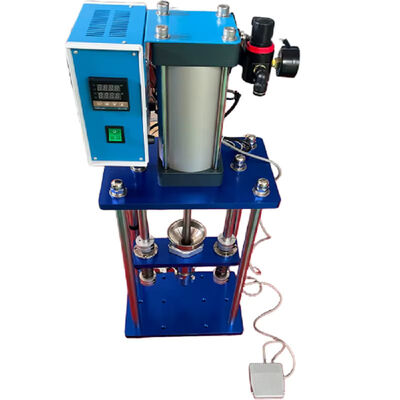

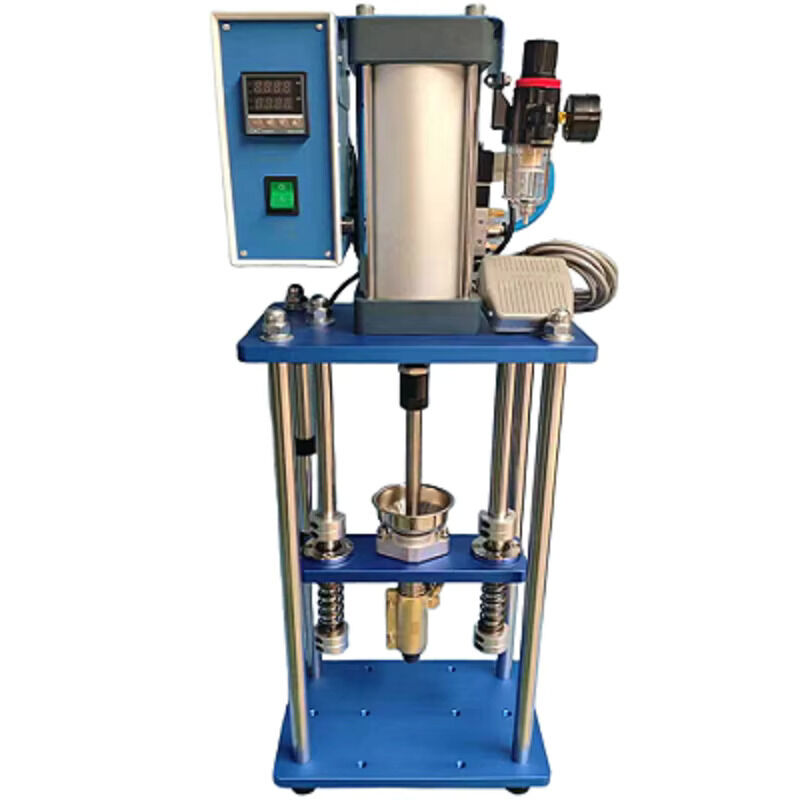

HT-1488 Laboratory Low Price Small Size Desktop Plastic Injection Molding Machine
Product introduction:
This whole machine is small in size, light in weight, easy to move and use, suitable for one molds, or multiple molds, 1-20g product injection.The injection molding machine is pneumatically operated, compact and easy to move. Requires air pressure to
drive 0.7mp-0.8mp.Plunger, plunger sleeve and connecting screws are made of 304 stainless steel for corrosion resistance.
Injection gram weight 0-20 grams (can be customized within 50 grams, experimental swatches, rheological experiments, pigeon foot rings, teaching experiments, small batch production, etc. Factory direct sales.
Main Parameters:
Supply voltage: 220v power 1kw
Air pressure requirements: 0.6Mp-0.8Mp
Heating temperature: 0-350 degrees adjustable
Single theoretical maximum injection weight: 0-15 grams
Plunger diameter: 12-16mm
Nozzle inner diameter: 2.5mm
Injection mode: (electric switch) single injection
Maximum mold size: 20*20*8cm (length, width and height)
Machine volume: 30*20*80cm
