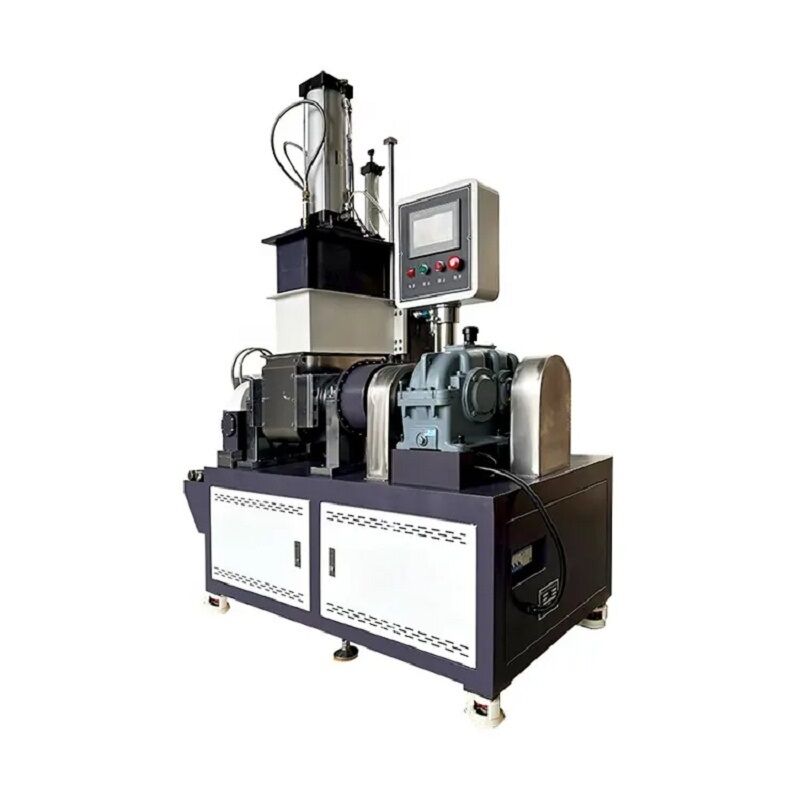

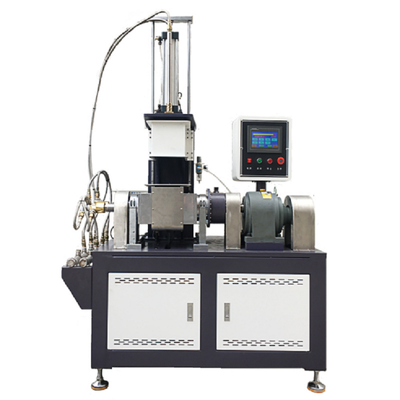

HT-TM-1 Table Mixer, Rubber Dispersing Kneading Machine Testing Internal Mixer
Application:
Its main function is to make the product meet the quality and color required by customers. In order to meet customer requirements, the experimental results and their ratios are used in the production line. This machine is also the equipment for mixing the experimental raw materials and compounding agents evenly.
Features:
(1) Mixing chamber volume: 1L, which is related to the density of the material. The greater the density, the greater the weight.
(2) Main motor: AC motor, power 5.5KW
(3) Reducer: The base and frame are made of mild steel welded structure and contain a forced lubrication circulation system;
(4) Rotor: Two-edge, synchronous rotor structure (can also be designed and manufactured according to the rotor structure diagram provided by the user), the front and rear rotor speed ratio is 1:1.20 or ST synchronous rotor, cast steel is tempered and hardened, and the surface is hard chromium plated; the bearing is Ball shaft roller bearing; bearing lubricating oil bath; maximum rotor speed: 1.0L: 36 rpm
(5) Wall: Steel structure, drilled and heated, inner surface hardened and hard chromium plated;
(6) Bracket: Steel structure, inner surface hardened and hard chromium plated;
(7) Top bolt: cylinder driven, surface hard chrome plated
(8) End face seal: sealing ring made of highly wear-resistant material, self-lubricating bearing, hinge spring top seal
(9) Adding hopper: manual operation
(10) Control mode: operation is divided into manual, semi-automatic, and automatic; maximum temperature of internal mixer: normal temperature to 200°
Parameters:
| Model |
HT-TM-1 |
| Mixing chamber capacity |
1L |
| Temperature range |
RT-200℃ |
| Heating method |
Electric heating |
| Controller |
PLC programmable color touch screen, human-machine interface, can set all process parameters |
| Cooling method |
Tap water cooling (customers provide their own water connection port) |
| Flip Angle |
110° |
| Rotor speed ratio |
1:1.27 |
| Rotor speed |
15-50 rpm inverter speed regulation |
| Feeding method |
Motor flips and unloads |
| Rotor material |
SKD Chrome-Molybdenum Alloy |
| Rotor hardness |
HRC60 surface hard chrome |
| Mixing room |
SKD chrome-molybdenum alloy material, inner surface hardness HRC60 mirror hard chrome |
| Upper pressure weight |
Full pressure pneumatic, air source pressure 0.5～0.8Mpa (customers provide their own air source connection port) |
| Main motor |
5.5KW |
| Flip motor |
400W |
| Volume |
3∮, AC380V, 22A three-phase five-wire (customers provide their own power connection port) |
| Power supply |
3∮, AC380V, 22A three-phase five-wire (customers provide their own power connection port) |
| Weight |
Around 680kg |
