Name: ANL-WP1 Digital Displaying Torque Testing Machine With Best Quality
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: ANL-WP1
Availability: InStock

Home Products Precious Metal Tester

ANL-WP1 Digital Displaying Torque Testing Machine With Best Quality

Product Details:

Place of Origin:	Dongguan, Guangdong
Brand Name:	HONTOTEST
Certification:	CE,FCC,ISO
Model Number:	ANL-WP1

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	Wooden Box
Delivery Time:	3-5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Precision:	±1%	Peak Value Sampling Frequency:	2000HZ
Charging Time:	4～6 Hours	Continuous Using Time Of Battery:	About 10 Hours
Battery Life:	≥300 Times	Net Weight:	12KG
Power Adapter Input:	AC 220V 50HZ	Power Adapter Output:	DC 10V 300mA

ANL-WP1 Digital Displaying Torque Testing Machine With Best Quality

Introduction:

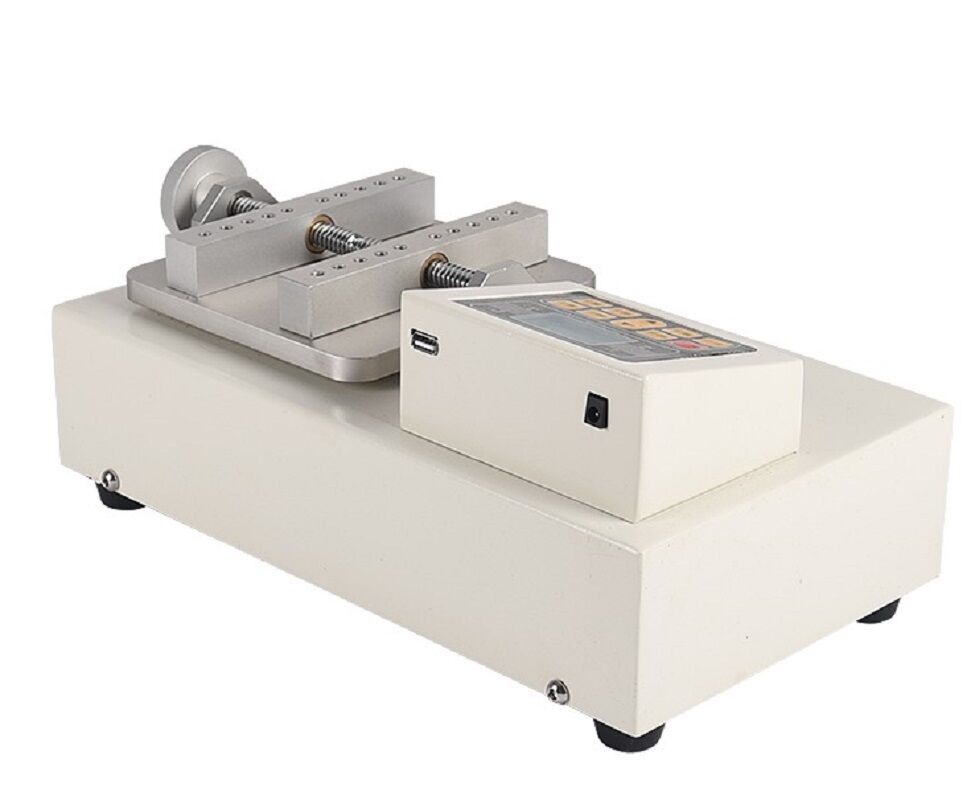

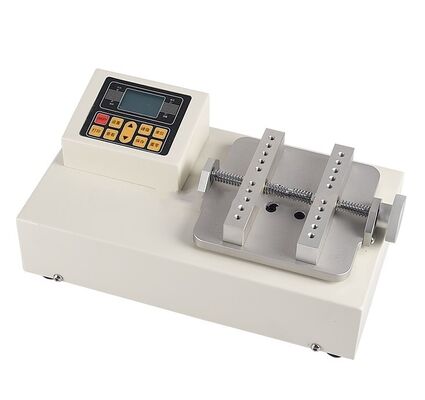

Digital bottle lid torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Specification:

Type Index	With printer	ANL-P1	ANL-P2	ANL-P3	ANL-P5	ANL-P10	ANL-P20
	No printer	ANL-WP1	ANL-WP2	ANL-WP3	ANL-WP5	ANL-WP10	ANL-WP20
Measuring range / Division value	N·m	1.0000/0 .0001	2.0000/0 .0001	3.0000/ 0.0001	5.0000/ 0.001	10.000/ 0.001	20.000/ 0.001
	Kg·cm	10.200/ 0.001	20.400/ 0.001	30.600/ 0.001	51.000/ 0.01	102.00/ 0.01	204.00/ 0.01
	Lb·in	8.850/ 0.001	17.700/ 0.001	26.550/ 0.001	44.250/ 0.01	88.50/ 0.01	177.00/ 0.01
Precision		±1%
Peak Value Sampling Frequency		2000HZ
Power		7.2V 1.2VX6 Ni-MH Battery group
Charging Time		4～6 Hours
Continuous using time of battery		About 10 Hours
Battery life		≥300 times
Size		400mm×200mm×200mm
Net Weight		12KG
Power adapter		Input:AC 220V 50HZ Output:DC 10V 300mA
