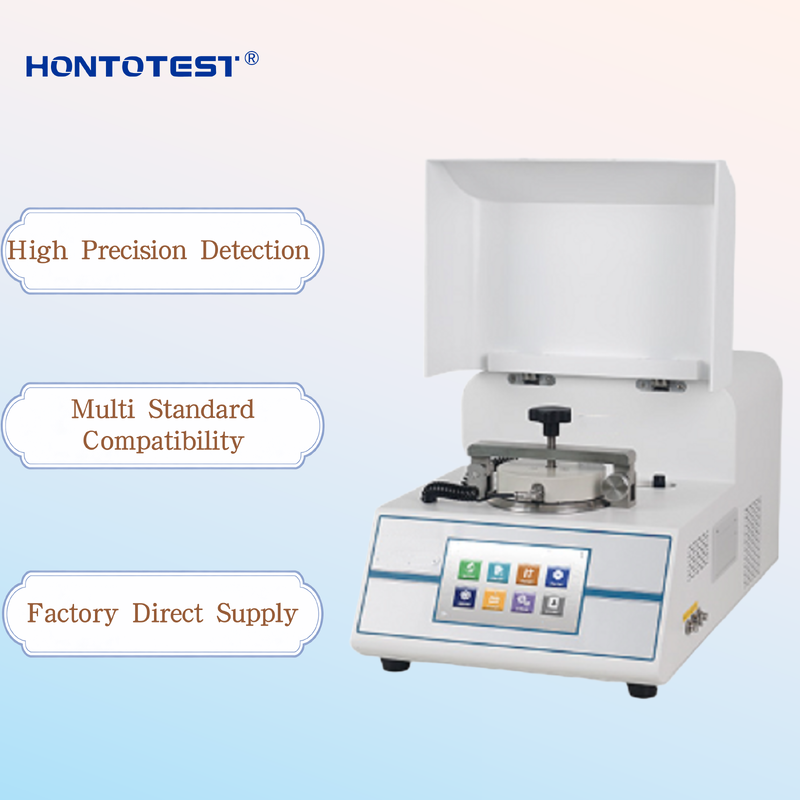

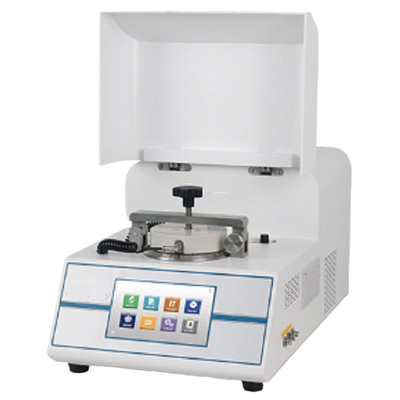

DH-S401 Coulometric Sensor Oxygen Transmission Rate Tester for Plastic Film Aluminum Foil Cosmetic Tube Barrier Performance Test
Introduction:
DH-S401 Oxygen Transmission Rate Tester is manufactured based on the coulometric sensor method and is applicable to test the oxygen transmission rate test of high barrier materials.
Product Features:
1.High precise coulometric sensor.
2.One independent test chamber can test one sample for each test.
3.The stability of the temperature ensures the consistency of test conditions of chambers(optional).
4.High-precise and automatic control system of temperature can be used under different conditions.
5.The data can be stored and outputted in multi-format (including reports in excel and cloud sharing).
6.GMP management of user's three-level authority complies with international standards.
7.The instrument processes statistical analysis of single and group data.
8.Equipped with ISP control online and upgrade function.
9.Specialized communicating software can display in real-time, analyze and store data.
Test Principle:
The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure. One chamber contains oxygen or air and the other chamber is slowly purged by a stream of nitrogen. Due to the concentration difference between the two chambers, oxygen molecules permeate through the specimen into the nitrogen side and are taken to the coulometric sensor where proportional electrical signals are generated. The oxygen transmission rate is then obtained by analyzing and calculating the signals. For package samples, high purity nitrogen flows inside the package, and oxygen or air flows outside.
Test Standards:
ISO 15105-2, GB/T 19789, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, JIS K7126-2, YBB 00082003
Application:
| Basic Application |
Film |
Including plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films and many others |
| Basic Application |
Sheeting |
Including engineering plastics, rubber and building materials, e.g. PP, PVC and PVDC |
| Extended Application |
Various Gases |
Test the permeability of various types of gases, e.g. O2, CO2, N2, Air and He |
| Extended Application |
Inflammable, Explosive Gases |
Test the permeability of inflammable and explosive gases |
| Extended Application |
Biodegradable Films |
Test gas permeability of various sorts of biodegradable films, e.g. starch-based biodegradable bags |
| Extended Application |
Materials for Aerospace Usage |
This instrument can test the Helium permeability of airship gas bags |
| Extended Application |
Paper and Paper Board |
Test gas permeability of paper and paper-plastic composite materials, e.g. aluminized paper for packages, Tetra Pak sheeting, paper bowls for instant noodles and disposable paper cups |
| Extended Application |
Paint Films |
Test gas permeability of substrates coated paint films |
| Extended Application |
Glass Fiber Cloth and Paper |
Including glass fiber cloth and paper materials, e.g. Teflon paint cloth, Teflon welding cloth and Teflon silicon rubber cloth |
| Extended Application |
Soft Tube Materials for Cosmetics |
Including various types of cosmetic tubes, aluminum-plastic tubes and toothpaste tubes |
| Extended Application |
Rubber Sheeting |
Including various sorts of rubber sheeting, e.g. car tires |
Technical Date Sheet:
| Test Range |
0.1 ~ 10000 cc/(m2·day) |
| Number of Specimen |
1 |
| Resolution |
0.0001 cc/(m2·day) |
| Range of Temperature |
10°C ~ 60°C (Optional) |
| Accuracy of Temperature |
±0.1°C |
| Test Area |
50 cm² |
| Sample Size |
97 mm × 97 mm (Customization is available for other size) |
| Sample Thickness |
≤ 3 mm (Customization is available) |
| Tested Gas |
99.5% Oxygen (Prepared by customer) |
| Carrier Gas |
99.999% high purity Nitrogen (Prepared by customer) |
| Gas scourse Pressure |
7.2 PSI / 50 kPa |
| Port Size |
1/8 inch Metal Tube |
| Dimension |
400 mm (L) × 475 mm (W) × 450 mm (H) |
| Weight |
25kg |
| Power |
220V 50Hz |
