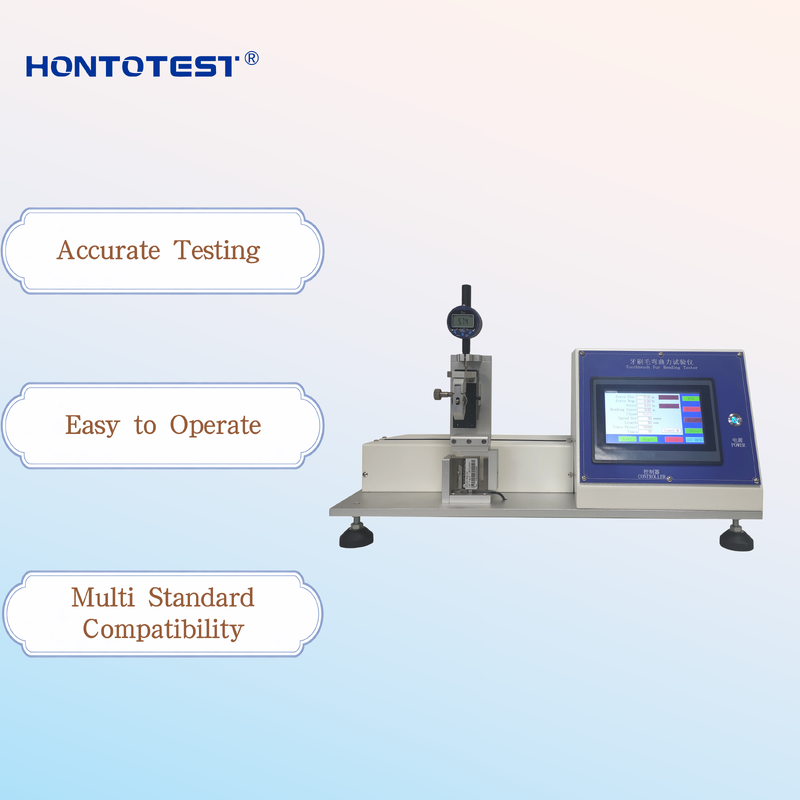

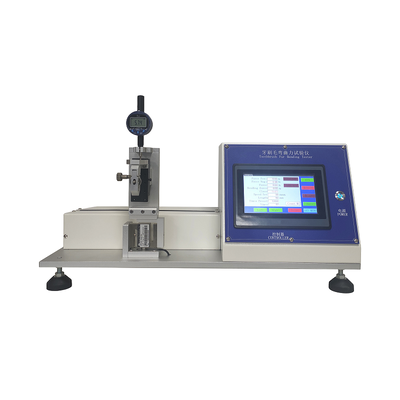

Name: HT-TBB Toothbrush Bristle Bending Force Tester for Testing Toothbrush Bristle Bundle Bending Resistance Strength
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: HT-TBB
Availability: InStock

Home Products Precious Metal Tester

HT-TBB Toothbrush Bristle Bending Force Tester for Testing Toothbrush Bristle Bundle Bending Resistance Strength

Product Details:

Place of Origin:	Dongguan, Guangdong
Brand Name:	HONTOTEST
Certification:	ISO,SGS
Model Number:	HT-TBB

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	Wooden Box
Delivery Time:	3-5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Operating Speed:	Adjustable Between 10 - 50 Mm/s	Sensor Range:	50 N
Accuracy:	0.05 N	Stainless Steel Rods:	Diameter 3.2 ±0.1 Mm, 5 In Total
Center Spacing:	8.2 ±0.1 Mm	Maximum Surface Roughness:	R=0.4 μm

HT-TBB Toothbrush Bristle Bending Force Tester for Testing Toothbrush Bristle Bundle Bending Resistance Strength

Introduction:

The strength of the bristle bundles of toothbrushes is evaluated by the force generated by the bristle bundles resisting bending, so as to classify the bristle bundle strength of toothbrushes. This test is applicable to manual adult bristle toothbrushes, not to special, functional toothbrushes and electric toothbrushes.

Features:

First, the height of the bristles is measured, and then the force generated by the toothbrush bristle bundle to resist bending is measured, and then the bristle bundle strength is classified according to the bristle bundle strength grade.

Technical Parameters:

Operating speed	adjustable between 10 - 50 mm/s
Sensor range	50 N
Accuracy	0.05 N
Stainless steel rods	diameter 3.2 ±0.1 mm, 5 in total
Center spacing	8.2 ±0.1 mm
Maximum surface roughness	R=0.4 μm
Dial indicator range	0.01 - 25.4 mm (national standard requirements)
Weight	25 kg
Dimensions	650250450 mm (LWH)
Power supply	AC 220V, 50Hz, 200 W
