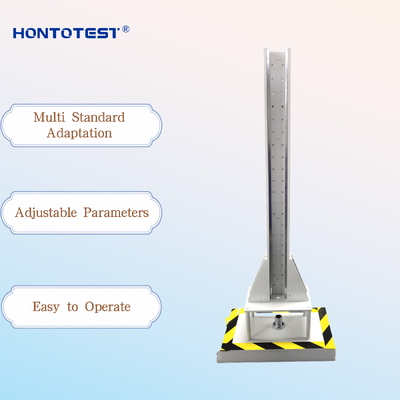

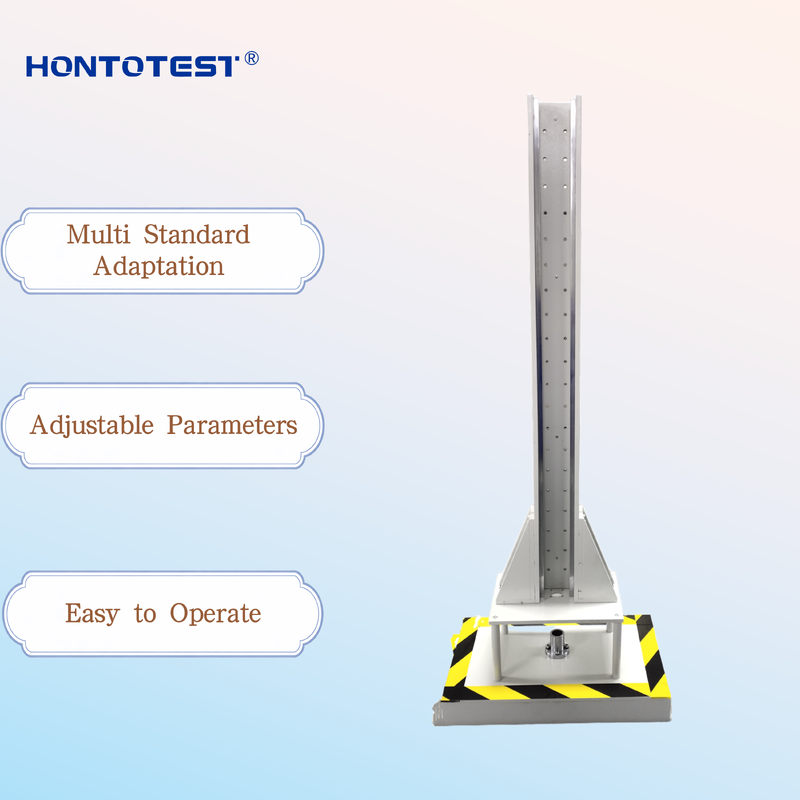

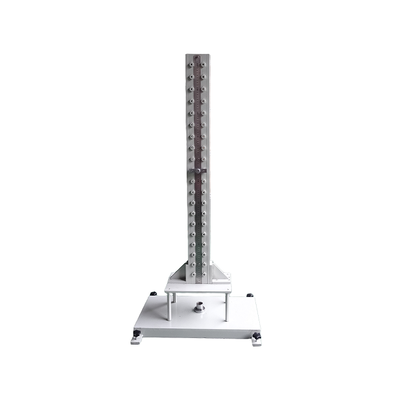

HT-794 DuPont Impact Tester Model, Free Fall Weight Impact Resistance Tester for Coating, PVC & Plastic, Complies with ASTM-D2794 JIS-K5400 Standards
Overview:
The DuPont impact tester is designed to evaluate the impact resistance of plastic, PVC, and coating specimens. The specimen is placed beneath the impact head; a weight is dropped from a specified height to strike the specimen, after which the extent of damage, deformation, or peeling is examined.
The machine's design complies with various international standards; the appropriate impact head can be selected based on specific testing requirements.
Principle: A weight of specified mass is adjusted to a set height and allowed to fall freely, striking the specimen so that the resulting damage can be assessed.
Standards:
Complies with JIS-K5400, K5600, and ASTM-D2794 standards.
Parameters:
| Item |
Coating test specimen |
Plastic test specimen |
| Drop height |
50—500mm, interval 50mm |
50—1000mm,interval 50mm |
| Heavy hammer |
300g,500g,1000g |
1000g,2000g |
| Impact cone radius |
1/2,1/4,3/16,1/8,1/16in |
7.9mm(5/16in) |
| Specimen holder radius |
Flat 1/4,3/16,1/8,1/16in |
8.1mm,15mm |
| Volume |
580×480×1280mm |
| Weight |
45kg |
50kg |
