Overview:

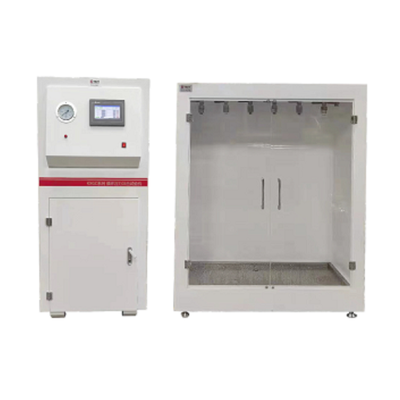

The cyclic pressure impact testing machine for plastic pipes is manufactured in accordance with the test methods specified in ISO 10508:1995, "Thermoplastics pipes and fittings for hot and cold water systems." It is designed to evaluate the ability of pipes, fittings, or piping systems to withstand stress fatigue failure and peak pulse pressures under alternating load conditions.

Working Principle:

After installing the specimen and adjusting the tensile force in accordance with pipe testing standards, the test can be initiated. This instrument features a high-end configuration comprising a touchscreen and PLC, enabling real-time monitoring of six testing stations; it also offers functions such as automatic shutdown upon test completion, alarms for pipe leakage, and impact frequency settings.

Features:

Main Unit

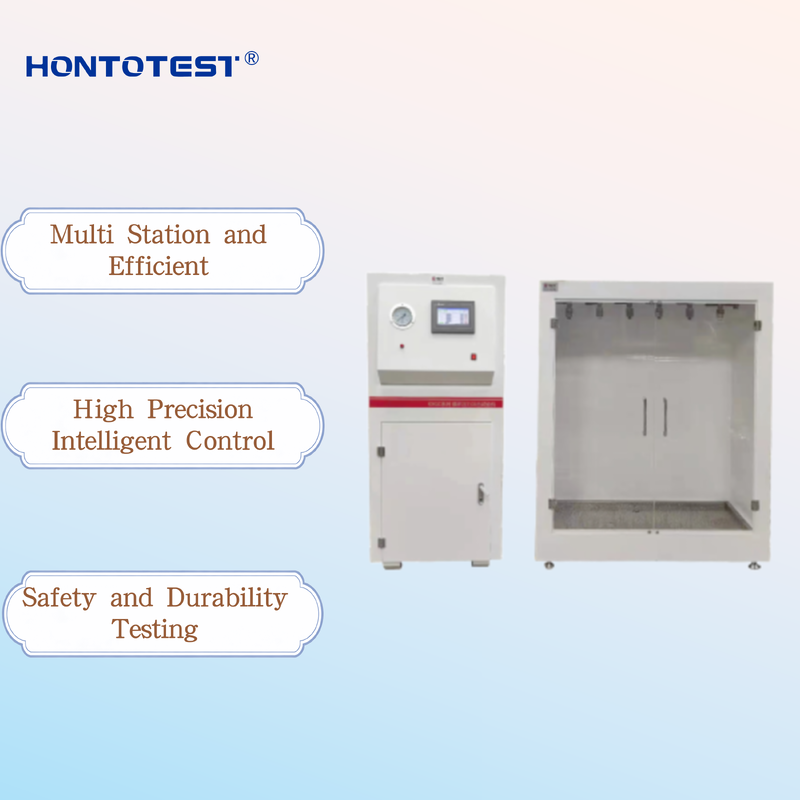

Independent station design with no mutual interference: Features a maximum pressure of 15 bar and six independent stations. Each station is equipped with a shut-off valve; if a rupture or failure occurs, the specific station's valve can be closed while testing continues at the other stations.

Versatile functionality: Capable of applying pre-stress to pipes according to test requirements and performing standard 10,000-cycle tests, offering multiple capabilities in a single system.

High precision and stability: Core technologies and key components are sourced globally—specifically from Denmark and Germany—to ensure superior precision and operational stability.

Wide control range: Cyclic pressure control ranges from 4 bar to 15 bar.

Highly reliable safety protection: Comprehensive safety measures are integrated across electrical, mechanical, and software systems. Features include leakage alarms and splash guards to ensure the safety of testing personnel.

Test Chamber

Stainless steel inner chamber equipped with a high-performance Wilo circulation pump;

Transparent lid allowing for real-time observation of the pipe testing process;

Simple structure and convenient mounting; the unique design ensures a 100% success rate for sealed connections and allows for easy assembly and disassembly;

Constructed from high-quality 304 stainless steel, ensuring rust-free performance in a 95°C water environment.

Parameters

(1)Pressure cycling rate: 30 ± 5 cycles per minute (alternating between 0.1 ± 0.05 MPa and 1.5 ± 0.05 MPa);

(2) Timing precision: 1 second;

(3)Timing error: ±1%;

(4)Pressure precision: 0.05 MPa;

(5)Cycle count setting: Adjustable from 0 to 10,000 cycles;

(6)Temperature range: 23 ± 2°C;

(7)Test stations: 6;

(8)Features: Data retention upon power loss and detection of leakage/rupture;

(9)Test pipe diameter: Φ2–Φ63.
