China Professional Factory Electronic Densitometer Price for Furniture, Wood, Density Measuring Equipment
Application: Rubber,Plastic,Wire and Cable,Tire,Powder,Ceramic,Magnetic Material,Field of quality management,cost control, rapid density test in site.Hard Alloy,New Material.
Standards: In accordance with ASTM D792,ASTM D297,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,JB/T7780 standards etc.
No need to open and close the lid with the completed aluminum alloy measuring table; Simple operation and conform to the new materials laboratory operation.
specification; automatically judge whether the sample is qualified or not; Function of warning and measuring the volume abrasion value DIN of rubber,of Akron,and expansibility; Measuring the true density with pycnometer method for powder material; Function of waterproofing treatment with boiling saturation method,impregnated saturation method,vacuum saturation method,surface sealing wax covering method,and surface vaseline covering method,and automatic measuring the porosity,oil content and water absorption; The purity of the main material in two kinds of mixture also can be measured.
Specification:

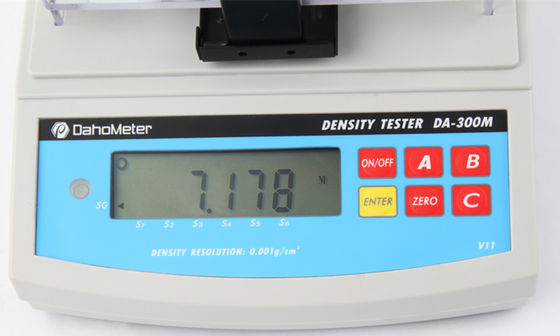

DA-300M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.005g
Maximum weight: 300g
Resolution: 0.001 g/cm3
DA-600M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.005g
Maximum weight: 600g
Resolution: 0.001 g/cm3
DA-900M
Measuring range: 0.001-9.999g/cm3
Minimum weight: 0.01g
Maximum weight: 900g
Resolution: 0.001 g/cm3
DA-1200M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.01g
Maximum weight: 1200g
Resolution: 0.001 g/cm3
Features:
(1)No need to open and close the lid; Simple operation;Shorter time; According to the specification of new materials laboratory.
(2)Show the percentage composition of mixed samples for researching and developing new materials.Suitable for powder metallurgy,magnetic materials,ceramics,fireproofing materials,precious metal and so on.
(3)Automatically judge whether the sample is qualified or not;prompt alarm.
(4)Function of solution compensation.either water or liquid can be used as medium.
(5)Function of setting actual water temperature,measuring medium density,and water proof medium density.
(6)Function of setting aerostatic buoyancy compensation and the bound of density.
(7)Adopt the completed high-capacity measuring accessories with the transparent injection mould sink,which can resist wear,fall off,and corrosion.
(8)Adopt the completed special windproof and dustproof cover,which makes the instrument convenient and durable.
(9)Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.
Standard Accessories:
Host,Sink,Testing board,Tweezer,Thermometer,100G weight,Windproof and dustproof cover,A set of measuring granule accessories,A set of measuring floating body accessories,Power transformer
Measurement Procedure of Non-hydroscopicity Products:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place sample into water to measure weight in water,press ENTER key.Density value will be displayed.
Measurement Procedure of Hydroscopicity Products:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place sample that did waterproof treatment on testing board to measure weight in air.press ENTER key.
(3) Place sample that did waterproof treatment into water to measure weight in water,press ENTER key.Density value will be displayed.
