| Model |
DHL-60 |
DHL-90 |
DHL-120 |
DHL-160 |
DHL-200 |
| Volume |
108L |
270L |
600L |
960L |
1200L |
| Interior dimensions(mm)L*W*H |
600*450*400 |
900*600*500 |
1200*1000*600 |
1600*1000*600 |
2000*1000*600 |
| Exterior dimensions(mm)L*W*H |
1060*580*1050 |
1400*850*1200 |
1950*1250*1400 |
2300*1250*1500 |
2700*1250*1500 |
| Control system |
1.Adopt Japan IEC high-speed CPU, stable performance, safety and reliability |
| 2.LED digital tube displaying, humanization interface, all information is clear at a glance. |
| 3.Multi-fault warning protection system, anti-dry heating, anti-overheating |
| 4.High-power SSR output, imported sterling silver relay contacts, with a service life to 106. |
| 5.Multiple time modes, S, M,H can be switched as required. |
| |
6.Multi-control mode for continuous/discontinuous/manual/automatic testing. |
| 7.With manual/automatic demist mode to ensure that the salt mist can’t be leaked, so as to avoid corrosion of the laboratory. |
| 8.Hidden correction method to ensure absolute temperature is under control. |
|
Water
Replenishing system
|
Automatic/manual water charging system, with the function of automatic/manual replenishment when the water level is insufficient. The experiment will be not interrupted which can be met the diverse environmental requirements for users (Automatic water replenishment only needs to be connected with water pipe). |
| Heating mode |
Direct steam heating.it has the feature of quick heating speed, uniform temperature distribution, and less stand-by time. |
| Controlling mode |
Touch controlling standard operation. With full detection fault pre-warning system. Lights up when fault occurs. Built-in manual defogging function, can be placed or viewed during the experiment to remove the experimental accumulation of salt spray. |
| Safety protection device |
With double over-temperature protection (Italian KGB), the heating power can be switched off automatically in the event of temperature control meter fault or a heating system fault. Avoid overheating damage on the instrument.
Double low water level protection to prevent dry burning damage on the heat pipe of laboratory and pressure bucket
With overload short circuit protection. To prevent damage on the instrument and internal electronic control accessories when an exception occurs. (Equip the low salt level warning of the brine bucket when doing experiment to avoid experimental abnormalities after the brine is finished)
|
| Dosage barrel |
Built-in fog collection bucket. Compared to the traditional external type, it is less likely to be damaged. |
| Nozzle |
Precision quartz glass nozzle. Using 4000 hours without crystallizing can be guaranteed.The spray tower is equipped with a conical dispersive device, which has the functions of guiding fog, adjusting the amount of fog, and evenly falling fog. |
| Sealing method |
The inside and outside box is connected to the sealing groove, using water sealing. avoid salt spray leakage. |
| Temperature range |
1: Laboratory temperature: 35°C--50°C (can be set arbitrarily)
2: Pressure bucket temperature:47°C--63°C (can be set arbitrarily)
|
| Heating rate |
1: Laboratory, room temperature---→35°C about 35 minutes
2:Pressure bucket, room temperature----→47°C about 15 minutes
|
| Temperature accuracy |
±1°C |
| Power |
60/90 model AC220V 50HZ 15A 120 and more models AC220V 50HZ 20A

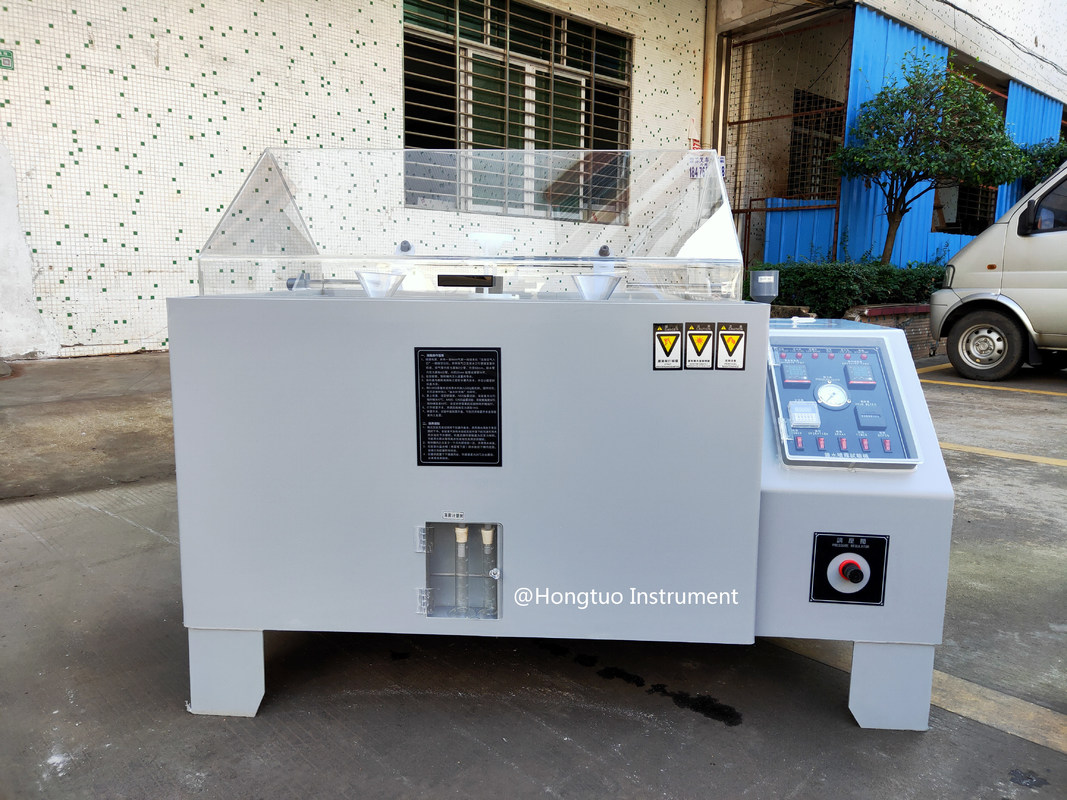

This machine is suitable for neutral salt spray test (NSS) and corrosion test (AASS,CASS)
|
