COF Tester Coefficient of Friction Tester Meter / Testing Machine / Instrument / Equipment / Apparatus

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	DahoMeter
Certification:	DH-FC
Model Number:	COF Testing Instrument

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD499 to USD1999
Packaging Details:	wood standard exported package for COF Testing Instrument
Delivery Time:	Shipped in 5 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 Set/Sets per Month

Contact Now

Detailed Product Description

Usage:	COF Testing Instrument	Farmar Weight(g):	200±2 G
Slider Moving Speed(mm/min):	100±10	Test Force Accuracy(N):	±0.02
After-sale Service Provided:	Yes

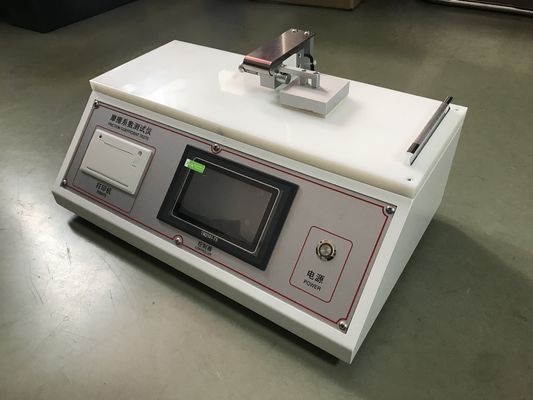

COF Tester Coefficient of Friction Tester Meter / Testing Machine / Instrument / Equipment / Apparatus

Application

The friction coefficient tester is developed for the determination of static and dynamic friction coefficients of plastic films and sheets when sliding on the surface of themselves or other materials. It can meet GB/T1006-1988 "Plastics-Film and Sheet-Determination of Friction Coefficient".It is an ideal test equipment for quality inspection departments and production enterprises at all levels, and can provide you with accurate test results.

Specification

Serial No.	Project Name		Technical Specification	Remark
1	Farmar weight(g)		200±2 g
2	Slider moving speed(mm/min)		100±10
3	Test force accuracy(N)		±0.02
4	Power supply(AC)		220V, 50Hz
5	Maximum size of specimen(mm)	Upper sample	63*63
5	Maximum size of specimen(mm)	Lower sample	80*200
6	Dimensions (width x length x height)(mm)		300x400x180
7	Weight(kg)		10

COF Tester Coefficient of Friction Tester Meter / Testing Machine / Instrument / Equipment / Apparatus
