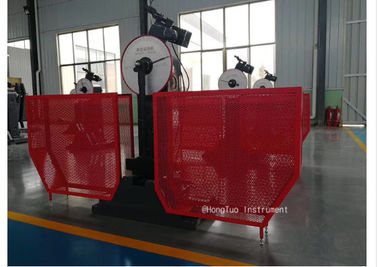

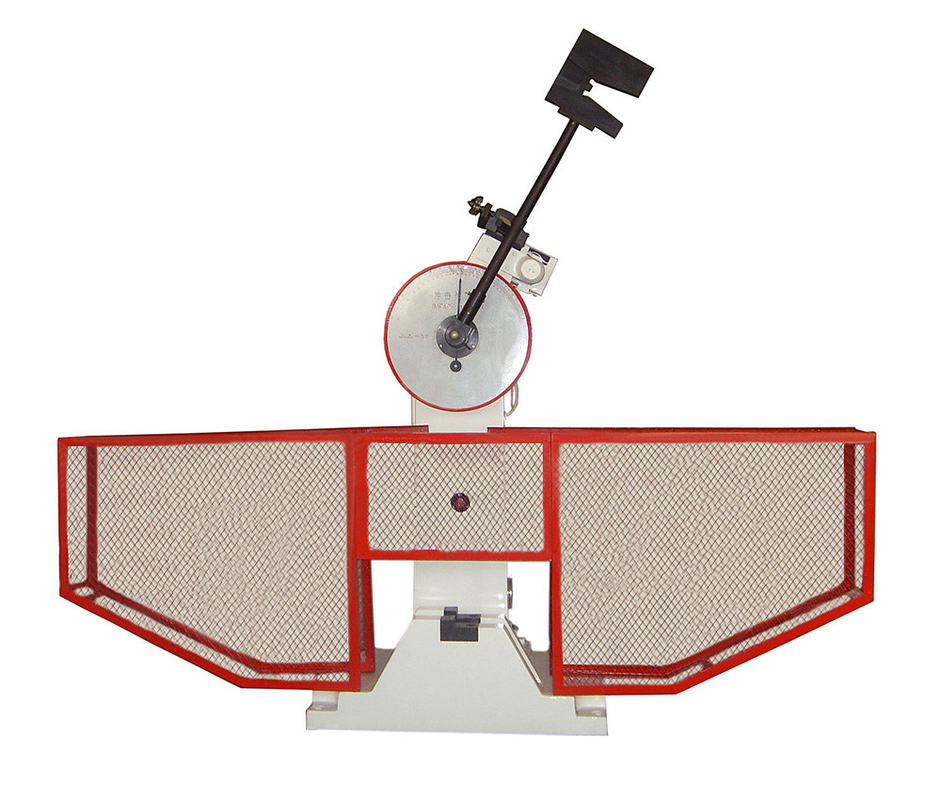

Metal Pendulum Charpy Izod Impact Strength Tester / Meter / Testing Machine / Equipment / Instrument
Application:
Semiautomatic Charpy Impact Testing Machine is used for measuring the metal material
resistance performance under dynamic load, in order to determine the material properties
under dynamic load.
Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specification:
1)Impact Energy:300J,150J
2)Dial scale range and division value:
| Model |
DB-300A |
| Energy range |
0-300J 0-150J |
| Division |
2J 1J |
3)Pendulum torque
| Pendulum impact energy |
300J |
150J |
| Pendulum torque |
160．7695N.M |
80.3848N.M |
4) Pendulum pre-angle: 150 °
5) Distance from pendulum center to impact point (test center): 750MM
6) Impact speed: 5.2M/S
7) Sample support span: 40MM
8) The radius of the end of the sample support: 1-1.5MM
9) Sample support support angle: 0°
10) Impact knife arc radius: 2-2.5MM
11) The angle between the two inclined faces of the impact knife: 30°
12) Impact blade thickness: 16MM
13) Sample specifications: 10 * 10 * 55MM
14) The test machine weight: about 450KG
15) Test machine dimensions: 2124*600*1340MM
16) Power: three-phase three-wire system 50HZ380V180W (main motor)
Standard Configuration
1)The host: one.
2)Pendulum:
Specifications, large pendulum 300J, small pendulum 150J.
Quantity, one each, two in total.
3)Span model: Specifications, L=40. Quantity, one.
4)The sample center block: specifications, L = 40 (V. U) type. Quantity, one.
5)The detacher: quantity, one.
6)Stay moving: Specifications, S = 30. Quantity, one.
7)Hex wrench: Specifications, S=14. Quantity, one.
8)Ground angle screw: Specifications, M16 × 200. Quantity, four sets.
9)The jaws (including the bracket): Quantity, one pay. Note that it is installed on the host.
Working Condition
1) Room temperature in the range of 10-35℃;
2)The relative humidity is not more than 85%;
3)In an environment free of corrosive media;
4)Installed on a concrete foundation with a thickness of not less than 150 mm or fixed on a foundation of more than 880 kg;
5)The level of the installation reference surface on the base is adjusted to within 0.2/1000;
