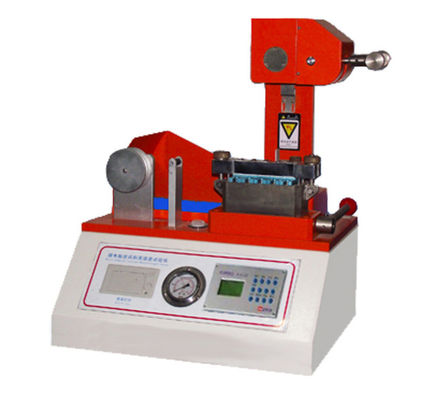

Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device

Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device

    • Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device
    • Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device
  • Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device

    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-PI-01

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Paper Interlayer Peel Strength Tester Testing Before Deliver: Yes
    After-sale Customer Service: Yes Sample Quantity: 5 Groups
    Sample Size: 25.4*25.4mm Sample Pressing Force: 0-900N

    Paperboard Interlayer Peel Strength Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device





    Full Intelligent Computer Measurement and Control Interlayer Peel Tester:

    Full Smart Interlayer Peel Strength Tester, Full-Intelligent Computer Measurement and Control Interlayer Peel Tester, Interlayer Peel Strength Tester, Interlayer Peel Strength Tester Paperboard Interlayer Peel Strength Tester is mainly used for measuring the interlayer peel strength of the paperboard which means the bonding strength among the fibers on the surface of the paper, When doing the impacting on the testing specimen with a certain angle and weight,the energy can be absorbed,the instrument can test out and display the interlayer peel strength.

    The performance parameters and technical specifications of the instrument are in line with the standard stipulations of the UM403 interlayer bond strength test method proposed by Scott of the United States, and are mainly applicable to the measurement of the surface interlayers bonding strength for various types of paper . It is the ideal testing equipment for paper manufacturing companies, quality inspection institution.,etc. The instrument is manufactured in accordance with the TAPPI-UM403 standard and is suitable for the testing of interlayer peel strength for various of cardboard.





    Principle of Interlayer Peel Strength Tester:

    When doing the impacting on the testing specimen with a certain angle and weight,the energy can be absorbed,the instrument can test out and display the interlayer peel strength.Five groups of testing specimen can be measured at one time, and the results is met a variety of standards.







    Technical index:



    Punch angle 90 °
    Resolution 0.1 J / m2;
    Measuring range A range: (20-500) J / m2, B range: (500 ~ 1000) J / m2.
    Indication error A range: ± 1J / m2, B range: ± 2J / m2.
    Inductor SH30-5000-2V
    Sample size 25.4mm × 25.4mm
    Sample clamping force 0 ~ 40kg / cm2 (adjustable)
    Unit J / m2, lbf / in2 interchange
    Interface 3.2in LCD display
    Printing Modular all-in-one thermal printer
    Power supply AC220V ± 22V, 50Hz, maximum current 3A, power supply should be reliably grounded.
    Appearance size 52cm × 42cm × 70cm
    Weight 62kg
