Name: DH-TC Paper Tube Compression Strength Tester /Auxiliary Appliance Testing Machine / Crushing Strength Test Machine
Brand: DahoMeter
SKU: DH-TC
Rating: 4.7 (117 reviews)

Home Products Paper Testing Equipment

DH-TC Paper Tube Compression Strength Tester /Auxiliary Appliance Testing Machine / Crushing Strength Test Machine

Product Details:

Place of Origin:	Dongguan
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	DH-TC

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	3 days
Payment Terms:	L/C, D/A, , D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Capacity:	200,500,1000kg	Induction:	Force Sensors
Displayer:	ZL-2000	Accuracy:	± 0.5 %
Resolution:	1/20000	Power:	AC220V 50Hz (According To National Or Specified)

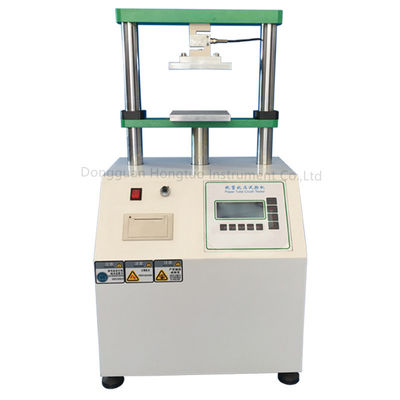

DH-TC Paper Tube Compression Strength Tester

DH-TC Paper Tube Compression Strength Tester /Auxiliary Appliance Testing Machine / Crushing Strength Test Machine

Application:

This machine is the ideal test auxiliary appliance for paper, packaging, scientific,research, quality and other industries and department.it is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength. Applicable to paper tubes with an outer diameter of 200mm, also known as paper tube pressure tester, paper tube compression tester, is the basic instrument for paper tube compression resistance test, using high-precision sensors, high-speed processing chip design to ensure sampling accuracy.

Specification:

Model	DH-TC
Capacity	200,500,1000kg
Induction	Force sensors
Displayer	ZL-2000
Resolution	1/20000
Accuracy	± 0.5 %
Units switch	Kgf, Lbf, N.( Optional)
Testing speed	10 ~ 200 mm/min
Speed input methods	Revolving
The pressure plate area	30*30 cm
The pressure plate spacing	30 cm Or designated
Dimension	85×65×80cm
Weight	130 kg
Power	AC220V 50Hz (According to national or specified)

Contact Details

Guangdong Hongtuo Instrument Technology Co,Ltd

Contact Person: Mr. zhong

Tel: +8613267004347

Fax: 86-769-23181253
