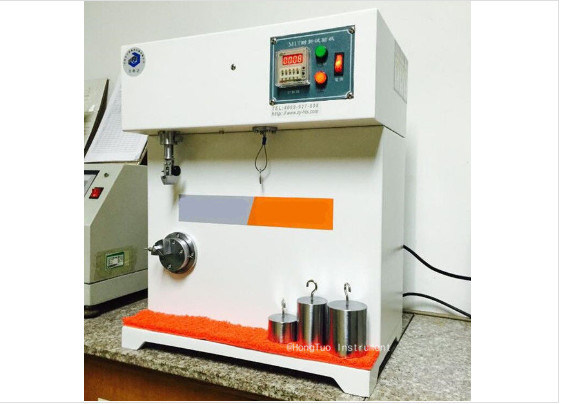

MIT Paper Folding Endurance Tester / Meter / Testing Machine / Equipment / Instrument / Apparatus / Device
Product Use
The MIT Paper Folding Endurance Tester complies with relevant standards and is applicable to the measurement of the folding fatigue strength for paper, paperboard and other sheet materials with thickness less than 1mm. The instrument uses photoelectric control technology to enable the folding collet to automatically return to previous position after each experiment to facilitate the next operation.
Technical characteristics
The instrument uses dual-CPU chips to work at the same time, measuring more accurately and quickly, operating more simply and using more conveniently.
Function of returning to zero automatically after testing
Precision stepping /servo control of motor, accurate positioning
Optical and electromechanical integration modern design concept, compact structure, beautiful appearance, easy maintenance
Main technical parameters
Measuring range: 1～99999 times
Folding angle:135°±2°
Folding speed: (175±10) times/min
Tensile adjustment range: 4.9N ~ 14.7N
Folding stitching specification: 0.25mm, 0.50mm, 0.75mm, 1.00mm (will be equipped with machine)
Working power supply:AC220V±10％50Hz
Working environment: temperature 0 ~ 40 °C, relative humidity is not exceeded to 85%
Outline dimension: 390 mm (length) × 305 mm (width) × 440 mm (height)
Net weight: ≤ 26kg
Gross weight: ≤ 36kg
Executive standards
ISO 5626: Measurement of Pleat Resistance for Paper
GB/T 2679.5: Measurement of the Folding Resistance Degree for Paper and Paperboard (MIT folding resistance method)
QB/T 1049: Folding Resistance Tester for Paper and Paperboard
