Name: Most Advanced CNC Type CMM Machine Coordinate Measuring For Precision Auto Measurement
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: DH-CNC-3020A
Availability: InStock

Home Products Optical Measuring Machine

Most Advanced CNC Type CMM Machine Coordinate Measuring For Precision Auto Measurement

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	DH-CNC-3020A

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard exporting package
Delivery Time:	5 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Video Measuring Machine	X/Y Axis Stroke:	300MM*200MM
Metal Countertop Size:	450MM*350MM	Glass Countertop Size:	330MM*230MM
Camera:	SONY1 / 3" Color CCD	Lens Magnification:	0.7~4.5X

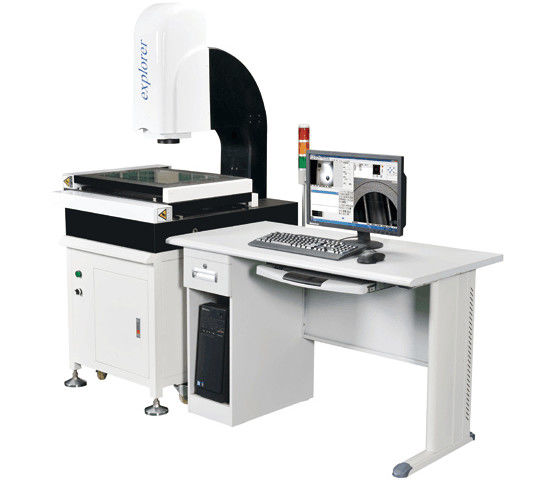

Most Advanced CNC Type CMM Machine Coordinate Measuring For Precision Auto Measurement

Feature:

High precision automatic measuring,four axis CNC control.
High precision and high strength machine:00 marble base/upright column/worktable,high precision and good stability.
XYZ three axis imported precision linear guide rail/imported grinding level ball screw drive system.long service life,good stability.
High precision grating ruler 0.5um.
WM automatic zoom optical lens,automatic measurement,without zoom correction.
HD Japanese Sony CCD camera,high quality measuring screen.
Auto focus measurement,optical measuring altitude and flatness.and can be equipped with the British RENISHAW contact measuring head.
Program controlled three ring eight area surface light,LED profile light,coaxial light.Different products with different color light.
Equipped with control handle,easy to operate at any place.
Combined with imported software,3D measuring software is developed to improve the boundary resolution capability.

Basic Parameter:

Model		DH-CNC-3020A	DH-CNC-4030A	DH-CNC-5040A
Workbench	X/Y axis stroke	300*200mm	400MM*300MM	500*400MM
	Z axis stroke	Effective space 245mm,focusing stroke 200mm,working distance 95mm
	Metal countertop size	450MM*350MM	550MM*450MM	700MM*600MM
	Glass countertop size	330*230mm	430MM*330MM	530MM*430MM
	Transmission type	X/Y/Z axis imported precision linear guide and imported grinding grade ball screw
Measuring servo drive system		Optical ruler resolution:X/Y/Z axis 0.0005MM(0.5UM)
		measurement accuracy:≤3UM+L/200 Repeatability:≤3UM+L/200
		X/Y/Z three-axis Taiwan high performance servo motor, double closed loop control system
Imaging system		Camera: Japan SONY 1/3′′ CCD camera magnification 30-230X
		Automatic zoom lens: NAV HD zoom lens / / continuous magnification 0.7-4.5X
		When the optional 0.5X objective lens is available, the total magnification is 15-115X.
		When the 2X objective is optional, the total magnification is 60-460X
Light source system		Surface light source and transmission source LED cold light source, long life and adjustable brightness
Instrument dimensions(LWH)		700MM850MM1650MM	800MM900MM1650MM	900MM1050MM1650MM
Instrument weight(KG)		330KG	400KG	550KG
