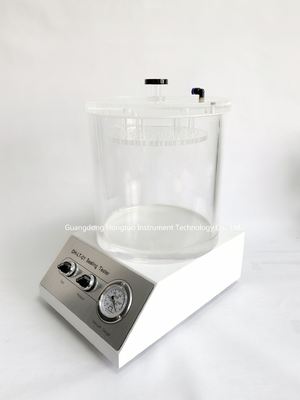

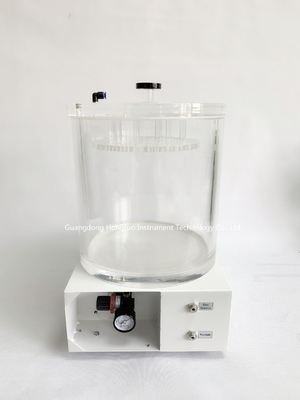

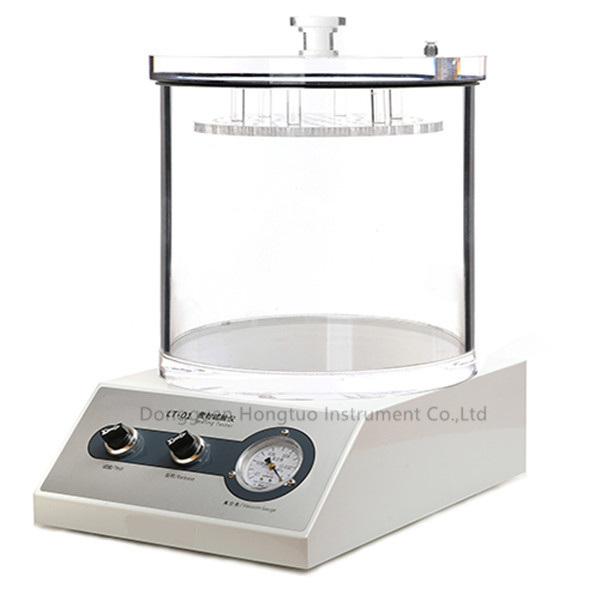

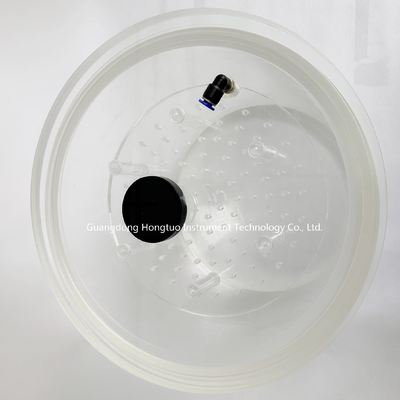

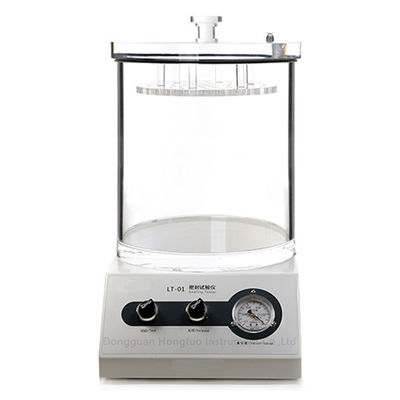

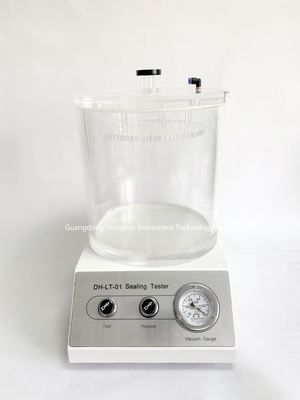

Name: Air Compressor Package Vacuum Leak Tester ASTM D3078 Vacuum Leak Test Machine
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: DH-LT-01
Availability: InStock

Home Products Plastic Testing Equipment

Air Compressor Package Vacuum Leak Tester ASTM D3078 Vacuum Leak Test Machine

Product Details:

Place of Origin:	Dongguan
Brand Name:	DahoMeter
Certification:	ISO SGS
Model Number:	DH-LT-01

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard wooden package
Delivery Time:	5 to 8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Vacuum Degree:	0-90Kpa	Vacuum Chamber Size:	φ270mm * 210mm(H)(other Sizes Can Be Customized)
Air Source:	Air Compressor	Product Name:	Vacuum Leak Tester
Weight:	15kg	Warranty:	12 Months

Air Compressor Package Vacuum Leak Tester ASTM D3078 Vacuum Leak Test Machine

Introduction
Introductio
LT-01 Leak Tester can be used for soft packaging sealing testing in food, pharmaceutical, daily chemical, electronics and other industry. By testing, the sealing process and performance can be ef- fectively compared and evaluated, providing scientific basis for determining relevant technical specifi- cations. The LT-01 Leak Tester can be also used for sealing performance tests after falling and com- pressing testing.

Features

No power supply needed
Stable performance of testing system
Ultra thick Plexiglas vacuum chamber
Non - standard vacuum chamber sizes can be customized
No vacuum pump needed
Friendly operation and easy maintaining
Vacuum level : Class 1

Parameters:

Vacuum degree	0-90Kpa
Vacuum chamber size	Φ270 mmx210 mm (H) (Standard size) Φ360 mmx585mm (H)(optional) Φ460 mmx330mm (H)(optional)
Machine size	300mm(L)380mm(W)500mm(H)
Air source	air compressor
Air pressure	0.7MPa(air source should be prepared by customers)
Weight	15KG

Standards
Standard
Standar
YBB00052005,GB/T 15171,GB/T27728-2011,ASTM D3078,YBB00122002
