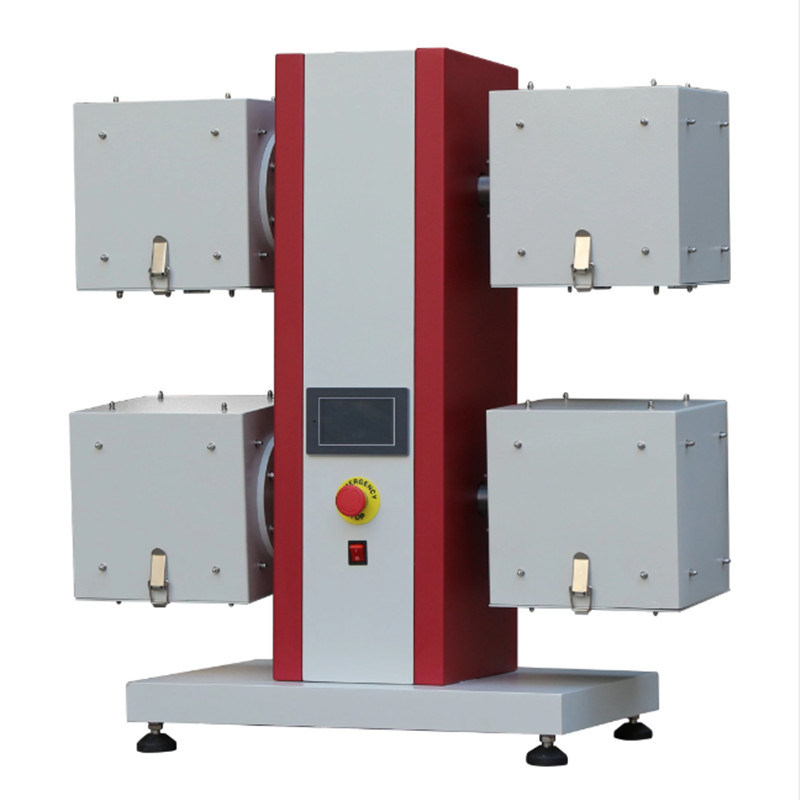

DH-YG511-IV ICI Fabric Piling and Snagging Tester Textile 4 Roll Box Pilling Friction Test Equipment
INTRODUCTION
ICI Pilling and Snagging Tester, to determine the surface pilling and snagging properties of both woven and knitted materials.
DH-YG511-IV ICI Pilling and Snagging Tester is specially designed equipment to access resistance to pilling of any type of fabrics as per ICI pilling system.
Smith Barney Inc. are now able to offer a technically advanced machine that is easy to use and inexpensive to own.
USAGE
To determine the pilling and snagging resistance of textile fabrics.
TESTING STANDARDS
ISO 12945-1,BS 5811,IWSTM 152,NEXT 19,JIS L1076,M&S P18,M&S P21A,BS 8479
TEST PROCEDURE
The fabrics to be tested must be wound on special pipes of polyurethane (by means of the fitting kit) which are then placed into the cork panelled boxes. After setting the required rotation number (99999 max.), press the function key to start testing. Once the preset cycle is over, the pilling forming on the sample is evaluated and classified by comparison with the special set of standard photographs.
When using the kit for the snagging test, the fabrics deterioration caused by the entangling into pointed materials with known characteristics is simulated.
SALIENT FEATURES
1. Specially designed equipment to access resistance to pilling of any type of fabrics as per ICI pilling system.
2. Two Pilling Boxes for better efficiency of work.
3. Microprocessor based controller with latest aesthetics.
4.3.2mm Standard cork lining inside the boxes for proper pilling action.
5. Finest Quality Molded Polyurethane Pilling Tubes supplied (16Nos).
6. Specially designed standard size boxes meet the standard specifications.
7. Complete with all accessories-pilling tube, template, 19mm PVC Tape etc.
8. Smooth precision engineered components for excellent performance.
9. Innovative specimen-mounting jig saves efforts and reduces the chance of damage or distortion to the sample.
TECHNICAL DETAILS
| No. of Boxes |
4 Nos. |
| Size of Wooden Boxes inside (Before Cork Lining) |
235 x 235 x 235 mm (As Per Standards) |
| Thickness of Cork Lining |
3.2 mm (As Per Standards) |
| Speed of Rotation of Boxes |
60 R.P.M. (± 2 rpm.) (As Per Standards) |
| Size of Test Specimen |
Length 140 mm + 1 mm (As Per Standards)
Diameter 31.5 mm + 1 mm
Wall Thickness 3.2 mm + 0.5 mm
Weight 52.25 gms. + 1 gms
|
| Digital Counter (Preset Type) |
0–99999 |
| Dimensions |
1200 x 500 x 800 mm |
| Power supply |
220V, 50Hz or 110V, 60Hz |
| Weight |
60 Kg |
ACCESSORIES SUPPLIED WITH THE INSTRUMENT
1. Main Unit: 01 No.
2. Specimen Mounting Jig: 01 No.
3. Standard Pilling Tubes (For testing the specimens): 8 Nos.
4. Pilling Specimen Template (For marking on the specimen): 01 No.
5. Standard Width Tape Roll: 01 No.
6. Power Cord: 01 No.
7. This User’s Manual: 01 No.
8. Inspection & Conformance Certificate: 01 No.
