Model YG114 Sliver and Roving Length Tester
(Electric,cutter optional)

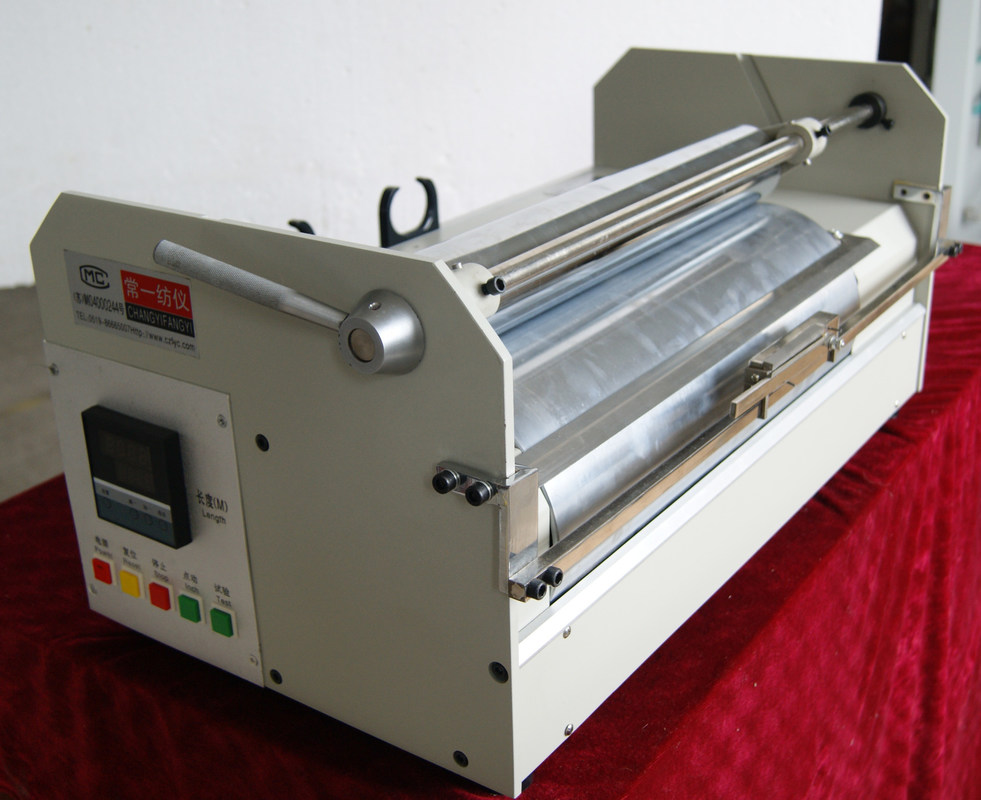

Appearance:
Application:
Used for making cotton,wool and spun silk yarn into sliver and roving with a certain length in order to measure its evenness.
Standards:
JJF(fabric)-001-2015
Main Technical Data:
1.Circumference of measuring wheel:0.5m
2.The width of the measuring wheel:430mm
3.linear velocity of the meter wheel:
A.50m/min
B.5m/min
4.The number of the head end of the test sample:
A.coarse yarn: one head end
B.otton sliver: two head ends
5.Preset Length: 1m-9999m
Length Display:0.1m-9999m
6.Ways of drive:one motor drive
7. Outline size(Length×Width×Height):700×350×300mm
8.N.W.:about50Kg
