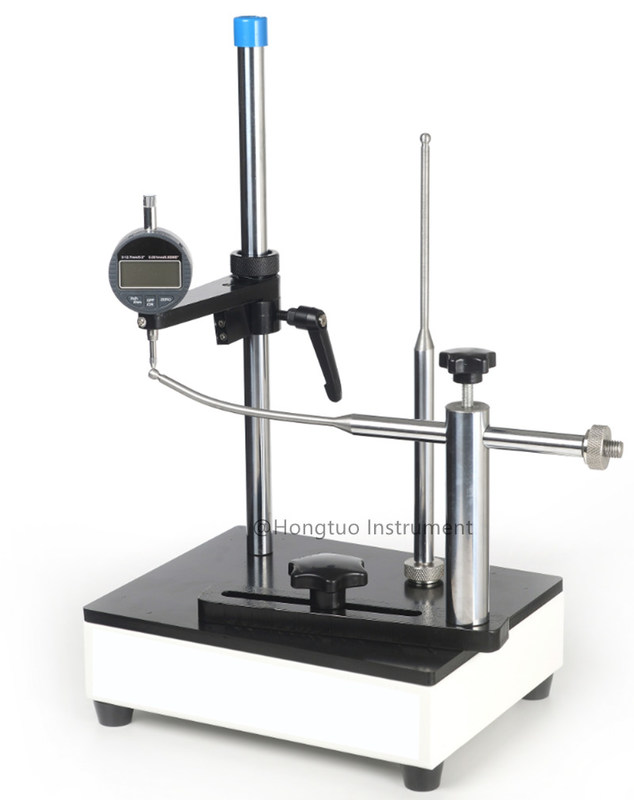

Digital Wall Thickness Gauge Measuring Instrument Measurement Meter Tester for Glass PET Plastic Bottle
DH-BTG is the ideal wall thickness measuring instrument for PET drink bottle,can,glass bottle,aluminum pot;it is application to measure the wall thickness of packing container with complex pattern;It has the advantage of user-friendliness,durability,high-precision,reasonable price;It is widely used in the manufacturing enterprise of glass bottle,plastic bottle,bucket,medicine,health care,cosmetic,drink,oil,liquor.,etc.
Features:
- Can custom made the measuring rod based on the irregular specimen;
- Suitable for measuring the specimen of glass bottle,water bottle.,etc.with complicated pattern.
- Can test the thickness of the bottom,wall of bottle.
- High precision header.
- Easy and durable.
- Large or small specimen can be measured.
- Digital LCD displaying.
Standards:
GB2637-1995,GB/T2639-2008,YBB00332002
Specification:
| Measuring range |
0-12.7mm(other thickness can be custom made),0-25.4mm(optional) |
| Resolution |
0.001mm |
| Diameter of sample |
<=150mm |
| Height of sample |
<=300mm |
| Weight |
15kg |
| Dimension |
400*220*600mm |
