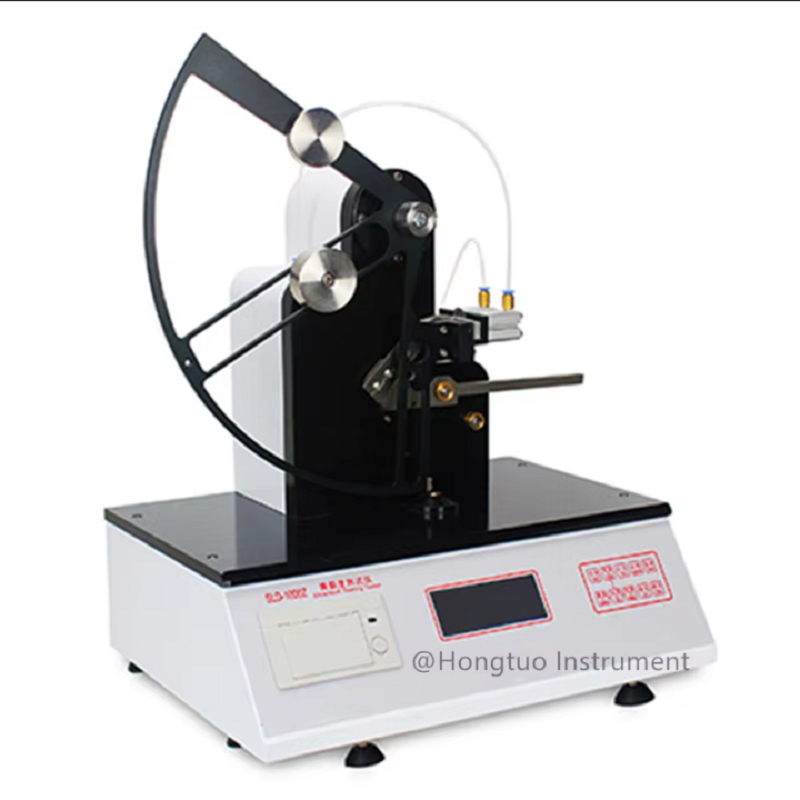

Elmendorf Tearing Tester DH-SLD-1000Z
Elmendorf Tearing Tester SLD-1000Z is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.
Elmendorf Tearing Tester DH-SLD-1000Z
Standards: ISO6383-1-1983, ISO 6383-2-1983, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, GB/T 16578.2,GB/T 455.1,GB/T455.2,ASTM D1922
Industry Standards:
· ASTM D295, D752, D1424, D1922,
· D5734
· TAPPI T414, T496
· BS 4253, 4468
· CPPA D.9
· DIN 53862, 53128
· ISO 6383-2:1983 1974, 9290
· EN 21974
· SCAN P11
PRODUCT APPLICATION
Films, Paper, Rubber, Aluminum Foils, Laminated Films, Printed Matter
TECHNICAL FEATURE
★The instrument is controlled by micro-computer, large LCD display
★The instrument is designed by automatic and electronic measurement which improves the testing accuracy
★Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
★Computer assisted horizontal adjustment system could maintain the instrument optimum status
★Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control
★Professional software supports multi-unit data output
★Equipped with pendulums of multiple capacities
TEST PRINCIPLE
Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.
MAIN SPECIFICATION
| TECHNICAL SPECIFICATIONS |
| Pendulum Capacity |
200 gf, 400gf, 800gf, 1600 gf, 3200gf, 6400gf |
| Indication accuracy |
±1% |
| Resolution |
1mN |
| Sample Holder |
Pneumatic |
| Pendulum Release |
Pneumatic |
| Dimension |
470mm×340mm×530mm |
| N.W. |
30kg |
| ENVIRONMENT REQUIREMENT |
| Air Pressure |
0.6 Mpa(User-Supply) |
| Temperature |
15℃-50℃ |
| Relative Humidity |
No more than 70%,no dewdrop |
| Power Supply |
220V 50Hz |
| Configurations |
|
Standard Configurations: Elmendorf Tearing Tester mainframe, Professional Software, Communication Cable
Standard configuration pendulum capacity: 200gf (basic pendulum), 400gf, 800gf
Optional configuration: 1600gf (heavy pendulum), 3200gf, 6400gf
|
| Note |
| Users will need to prepare for gas supply |
