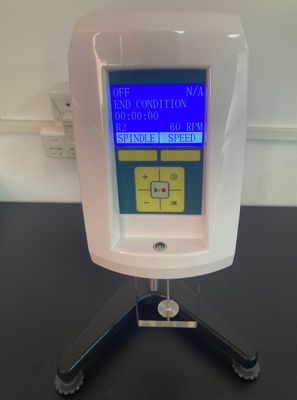

DH-LVDV-2 Digital High Viscosity Meter
Main features:
1. Viscosity value measurement accuracy: each range is automatically calibrated by a computer, with high accuracy and small error;
2. Front-level instrument: the level adjustment is intuitive and convenient;
3. Optional Pt100 temperature probe: wide temperature measurement range, from-20 to 300℃, temperature measurement accuracy of 0.1℃;
4. Optional enhanced ultra-low viscosity adapter ULR / URL PLUS, which can accurately measure the viscosity of 1mPa.S;
5. Select a small amount of sample adapter, SSR / SSR PLUS, and the sample volume measured each time is only 7-11ml;
6. Rich optional accessories: constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
7. With automatic scanning, timing measurement and other functions;
8. Automatic prompt function of viscosity measurement and stability;
9. Showing the shear rate and the shear stress;
10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s; 1cP=1mPa.s);
11. Temperature unit switch: Celsius, F;
12. Connect to the printer and the computer
13. Switching between Chinese and English operating systems
The torque of the gossamer, the shape of the rotor, the size of the rotation speed, and the range of the viscosity measurement are the same as the same viscometer imported, and the measured viscosity data is very well comparable with the imported similar instruments.
Widely used in paint, paint, cosmetics, ink, pulp, food, oil products, starch, adhesives, latex, biochemical products and other industries. It can also be optional high temperature furnace measurement need heating melt samples such as asphalt, hot melt glue, polyethylene wax and other samples.
Detailed technical parameters:
| Model |
DH-LVDV-1 |
DH-LVDV-2 |
| Display method |
liquid crystal display |
| Speed(r/min) |
0.3 – 100 37 RPM |
0.1-200 58 RPM |
|
Measuring range
|
0.6 - 2,000,000 mPa.s |
0.3 - 6,000,000 mPa.s |
|
(ULR below 10 )
The lower limit of the actual exact measurement is 1
|
|
Sample dosage
|
1-4 Rotor:300-400ml
18,25,31,34Rotor:7-11ml；
ULR: 21ml
|
| Measurement error |
±1% (Newtonian liquid) |
| Repetitive error |
±0.5% (Newtonian liquid) |
| Showing the shear response / shear rate |
standard configuration |
| Timed function |
standard configuration |
| Temperature measurement function |
Standard temperature probe interface (optional temperature probe is required) |
| Automatic scanning function |
Automatically scan and recommend a preferential combination of the rotor and the rotational speed |
| Maximum measurement range |
Automatically displays the measurable viscosity range of the selected rotor and speed |
| Print function |
Data and curve printable (standard printing interface, printer) |
| Thermostatic parts |
Options (including special thermostatic slot for various viscosity meters, constant temperature cup) |
| working power supply |
110V/60Hz or 220V/50Hz) |
| outline dimension |
300 × 300 × 450 (mm) |
option:
1. Enhanced ultra-low viscosity Adapter (ULR / ULR PLUS)
Designed for low-viscosity fluid measurement, there are sandwich and non-sandwich sizes, with a minimum detection limit of 1cP, depending on the type of vissity gauge used
2.Small number of sample adapters (rotor # 18,25,31,34)
Range of viscosity measurement:LVDV-1: 3 - 1,600,000LVDV-2: 1.5 - 4,800,000Sample volume:7-11ml
3. Temperature probe (temperature sensor)
Pt100 platinum resistance was used
Temperature measurement range: -20,300℃
Measurement accuracy: 0.1℃
4. Micro-thermal printer
Can be directly connected to the viscometer
Print data, print curves
5.Special constant temperature bath
for the viscometer
DC0506W:
Temperature control range: -5 to 100℃
Temperature control accuracy: 0.1℃
6. Temperature control device and heating furnace
High temperature molten samples such as polyethylene
wax measuring low viscosity can be used with rotor 0.
It can also be used with the rotor number 18,25,31,34
to measure the high-temperature molten samples of a
sphalt, hot melt glue, and paraffin.
