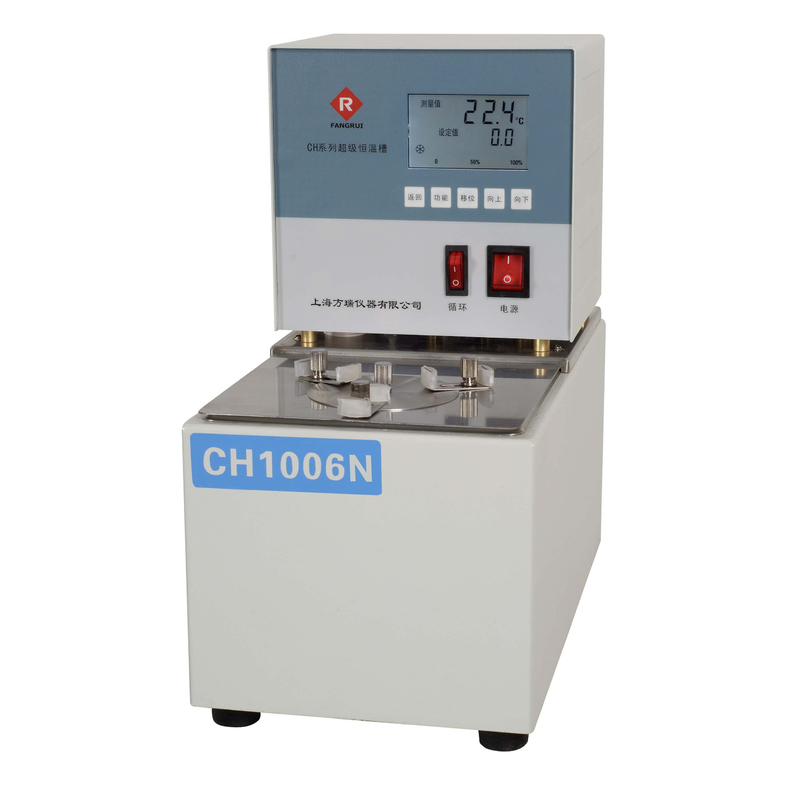

Special Constant Temperature Bath for
CH 6 liter Series Viscometer
Adopt current mature temperature control technology, stable performance, reliable work, novel and beautiful.Widely used in fine chemicals, biological engineering, pharmaceutical food, metallurgy, petroleum, agriculture and other fields.It is an ideal constant temperature equipment for research institutes, universities, industrial and mining enterprise laboratories and quality inspection departments.
Main features:
1. Special large screen backlight liquid crystal display, setting temperature, actual temperature, heating power, working state and so on information is clear and clear
2. High performance monolithic microcomputer control, self-tuning PID adjustment, imported platinum resistance temperature measurement, high temperature control accuracy and low fluctuation
3. High performance stirred motor, low noise, low heat, full closed, high life
4. Stainless steel plate, inner tank, effectively avoid corrosion, rust and other phenomena
5. A circular hole with a unique diameter of 75mm can be placed directly in a high burning cup of 400ml. There are three fixers around the round hole, which can be caught in a high burning cup
6. It has double protection , over temperature alarm function , and provides several security measures
7. The work of the instrument is stable and reliable, the operation is convenient and safe
Main technical parameters:
| Type Number |
CH1006N |
CH1506N |
CH2006N |
CH3006N |
| temperature range (℃) |
room temperature＋10～100 |
room temperature＋20～150 |
room temperature＋25～200 |
room temperature＋30～300 |
| temperature range |
Temperature below 100 ℃ is ±0.05, higher than 100 ℃ is less than 200 ℃ is ±0.3,Above 200 ℃ is ±0.5
(water or low viscosity silicone oil ≤ 100mPa.s)
|
| Temperature control mode |
Microcomputer temperature control pid regulation |
| display resolution |
0.1(℃) |
| Internal bile volume |
6(L) |
| Opening dimension |
75 * 150mm(Diameter * depth) |
| Pump circulation mode |
output loop |
inner loop |
| pumping flow |
8 - 10(L) |
| power |
1.5(KW) |
2(KW) |
| outline dimension |
190 × 340 × 365(Length * width * depth)(mm) |
Taking into account safety factors, the maximum temperature above 100 ℃ model, all use internal circulation (users have special requirements can be customized.
