DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test

DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test

    • DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test
    • DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test
    • DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test
    • DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test
  • DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Certification: CE,Rohs,FCC
    Model Number: DX-800N

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: Negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Computer Built In: No Detector Type: Proportional Counter Tube
    Multichannel Analyzer: Digital Multichannel Measuring Element: 20 Elements:Au Ag Pt Pd Ir Cu Re Cd Ni Zn Rh Ru Fe Co Os W Pb Sn In Mn
    Sample Form: Solid, Powder

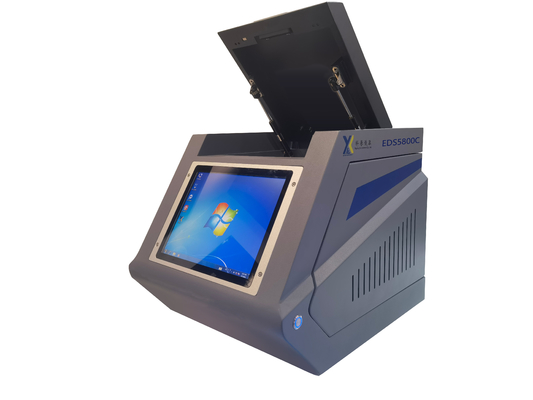

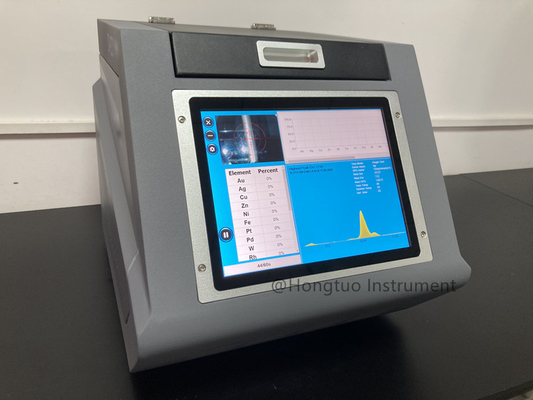

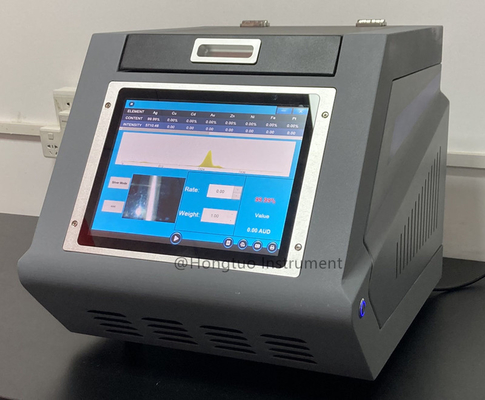

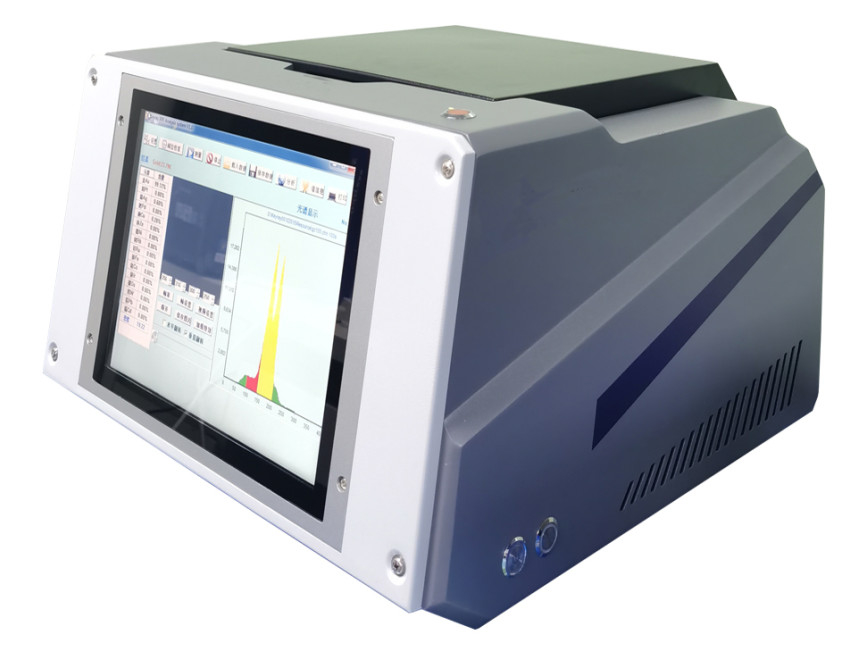

    DX-800M XRF Precious Metal Purity Determination Analyzer



    DX-800M XRF Precious Metal Purity Determination Analyzer, XRF Spectrometer for Metals Chemical Composition Test







    DX-800M



    Analysis of Precious Metals and Identification of Carats



    At present, the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used, extremely popular, and supported by national standards, and reliable methods. The use of XRF for the analysis of precious metals is a faster and more economical method of multi-element detection than spark test and chemical reagent testing.



    The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no need to inspect the tool into the material of the sample being tested, or damage the sample. The chemical composition information of the alloy can be obtained.thus determines the carat rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision. In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.





    Advantages and Characteristics of Analysis



    • Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings
    • Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold
    • The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
    • Super long warranty, confidence comes from pure European spectrometer production technology
    • The instruments have an innovative function that can help customers identify gold-plated samples
    • The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
    • Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
    • We can download and upload test data from network, and it is easy to view and share test results
    • Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
    • Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect human interface



    Hardware Performance and Advantages

    High-resolution, high-definition camera, convenient operation, fast detection speed, user-friendly interface



    Instrument Performance and Configuration



    Brand DahoMeter
    Model DX-800N DX-800 DX-800M
    Computer Built In No No Yes
    Detector Type Proportional Counter tube
    Multichannel Analyzer Digital multichannel
    Sample Chamber Size 320 * 250 * 120 (mm) 310 * 270 * 90 (mm) 270 * 260 * 100 (mm)
    Test Time 5 ~ 60sec
    Measuring Element 17 elements:Au Ag Pt Pd Ir Cu Re Cd Ni Zn Rh Ru Fe Os W Pb Sn 20 elements:Au Ag Pt Pd Ir Cu Re Cd Ni Zn Rh Ru Fe Co Os W Pb Sn In Mn
    Analysis Range 0.01% to 99.99%
    Accuracy 0.05%(Au≥96%)
    Sample Form Solid, powder
    Tube Voltage 5KV ~ 50KV
    High Voltage Power Supply 0 ~ 50KV
    Camera HD camera
    Filters Selectable customized switches
    Analysis Software Qualitative and quantitative analysis software
    External Dimensions 450 * 430 * 390 (mm) 450 * 400 * 390 (mm) 270 * 260 * 100 (mm)
    Weight 36Kg 36Kg 38Kg
    Instruments Environmental Requirements
    Ambient Temperature 5 ° C ~ 30 ° C (Suggested that in air conditioning room)
    Relative Humidity 15% ~ 85%
    Power Requirements AC 220V ± 5V, 50/ 60 Hz No high power electromagnetic and vibration interference sources nearby
