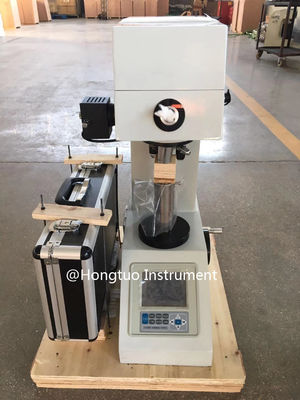

200HV-5 Low Load Vickers Hardness Tester
Main features :
Weight direct load-type Vickers integrated machine, high precision ;
LCD hardness display, high precision optical measurement system;
CCD image processing system optional;
The test force covers the microscopic and Vickers test requirements;
Equipped with precision coordinate test bench;
Precision conforms to the Standards of GB/T 4340.2, ISO 6507-2 and ASTM E92.
Application:
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications:
| Measuring range |
5-3000HV |
| Test scale |
1.961,2.942,4.93,9.807,19.61,25.52,29.42,49.03N
(0.2,0.3,0.5,1.0,2.0,2.5,3,5kgf)
|
| Magnification |
400x;100x |
| Min test unit |
0.25mm |
| Test force dwelling time |
0-99s |
| Max height of specimen |
130mm |
| Throat depth |
110mm |
| Size of XY coordinate worktable |
100*100mm |
| Travel of XY coordinate worktable |
25*25mm |
| Resolution of xy coordiante worktable |
0.01mm |
| Optical source |
12v/20w |
| Language |
Chinese /English |
| Power supply |
AC220V 50HZ/60HZ |
| Power consumption |
≤50w |
| Overall dimension |
486*337*657mm |
| Weight |
68kg |
Standard accessories :
Coordinate anvil : 1pc
Thin shaft anvil :1pc
Thin plate anvil :1pc
Flat nose plier:1pc
Diamond pyramid penetrator :1pc
Vickers standardized block: 2 pcs.
Micro-Vickers standardized block: 1 pc.
