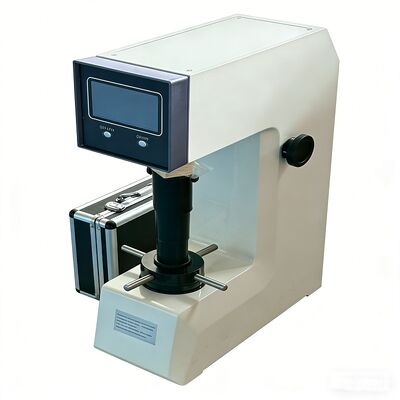

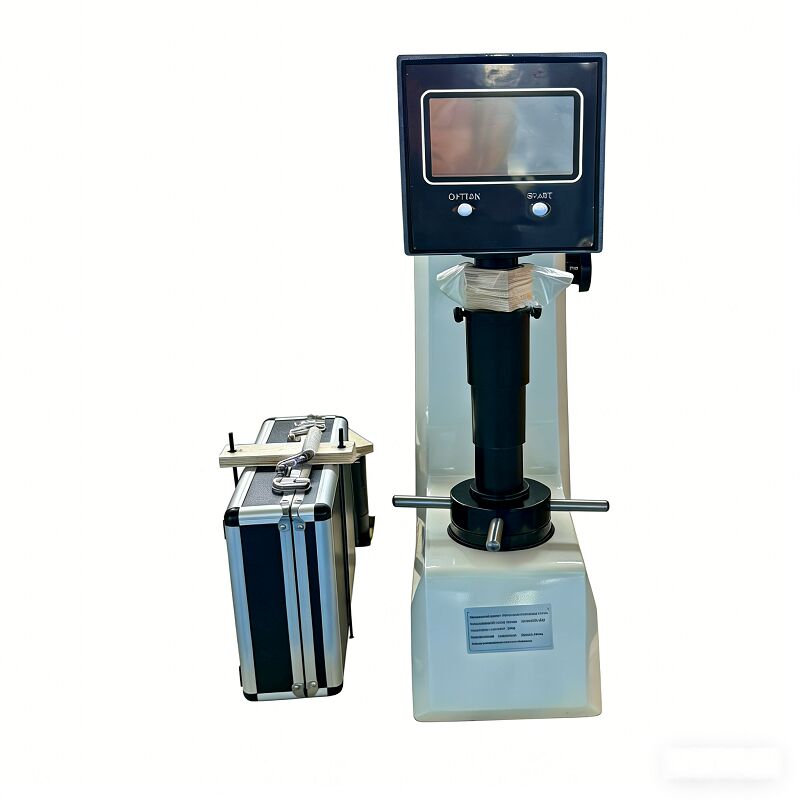

HRS-150 Touch Screen Digital Display Rockwell Hardness Tester, High Precision Metal Hardness Tester

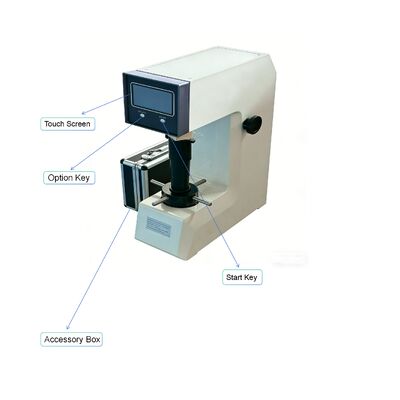

HRS-150 adopts 5.1-inch touch screen and high-speed ARM processor, with intuitive display, friendly human-computer interaction and easy operation; it has fast calculation speed, large database storage, automatic data correction and provides data line report.
Features:
(1) The fuselage is made of high-quality cast iron and cast in one step, and is treated with automotive paint, with a round and beautiful appearance.
(2) It has the function of automatic correction of cylindrical and spherical surfaces, and has corresponding prompts.
(3) The maximum and minimum hardness values can be set. When the test value exceeds the set range, an alarm sound will be issued.
(4) It has software hardness value correction function, which can directly correct the hardness value within a certain range.
(5) It has database function, which can automatically save test data in groups. Each group can save 10 data, and can save more than 2000 data.
(6) It has the function of displaying hardness value curve, which can directly show the change of hardness value
(7) The database can automatically record parameters such as scale, test force, hardness value, temperature, etc.
(8) The system automatically calculates the maximum, minimum, average and standard deviation of the hardness value of each group.
(9) Convenient control system, which can automatically convert the units of the entire hardness scale.
(10)Accuracy complies with GB/T230.2, ISO 6508-2 and American ASTM E18 standards.
Application:
(1) Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials.
(2) It is suitable for measuring the Rockwell hardness of heat-treated materials such as quenching and tempering, such as cemented carbide, case-hardened steel, quenched steel, case-hardened steel, hard cast steel, aluminum alloy, copper alloy, forgeable castings, soft steel, quenched and tempered steel, annealed steel, bearings, etc.
(3) Various metal materials for surface heat treatment and chemical surface treatment.
Technical Parameter:
| Model |
HRS-150 |
| Measuring range |
20-95HRA,10-100HRBW,20-70HRC |
| Testing force |
588.4,980.7,1471N(60,100,150kgf) |
| Test force application method |
Automatic loading, holding and unloading |
| Load change method |
Manual load change |
| Value display mode |
Touch screen display |
| Maximum allowable height of specimen |
200mm |
| Distance from the center of the pressure head to the machine wall |
130mm |
| Hardness resolution |
0.1HR |
| Power supply |
AC 220V,50Hz |
| Dimensions |
490*230*680mm |
| Weight |
70kg |
Standard Configuration:
| Large flat workbench |
1 pcs |
Small flat workbench |
1 pcs |
| V-shaped workbench |
1 pcs |
Diamond cone indenter |
1 pcs |
| φ1.588 Carbide ball indenter |
1 pcs |
Standard Rockwell hardness test block |
5 pcs |
Packaging&Shipping:
Suitable and safe packaging can be selected based on different materials and sizes of machines
